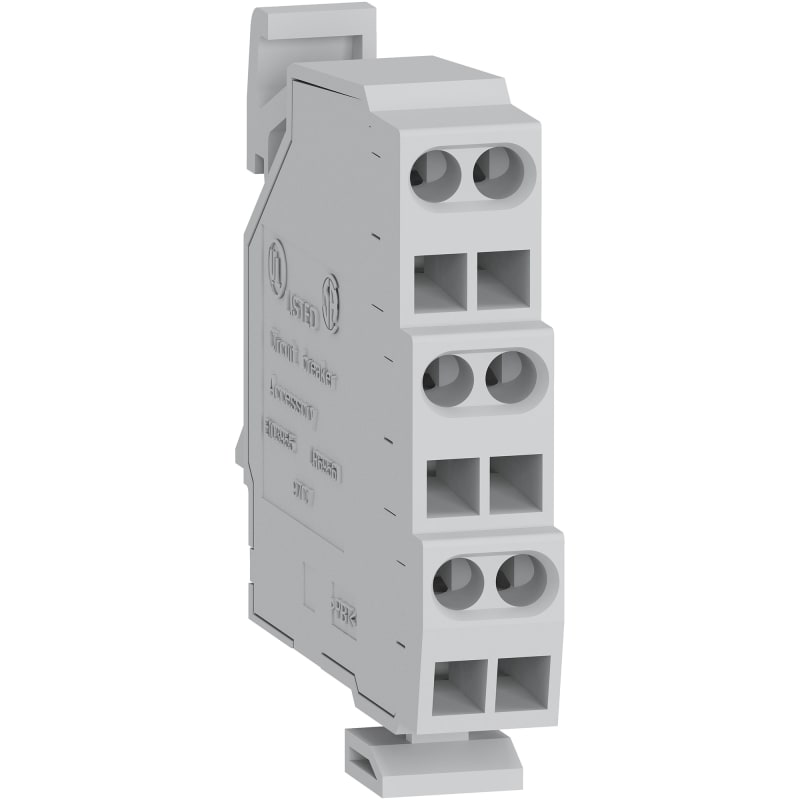

Schneider Electric standard carriage switch, drawout circuit breaker, chassis position CE/CT/CD, spare
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 33170 1 Position Switch (Connected/Frakoblet/T.
Technical Specifications
- Manufacturer part number (MPN)
- 33170 EAN / GTIN: 3303430331704 Sales unit: pcs Package quantity: 600 pcs Device short name: carriage switch Product or component type: Auxiliary contact Device application: Monitoring Range compatibility: Masterpact MasterPact NT; Masterpact MasterPact NW; Masterpact MasterPact NW DC; ComPact ComPact NS630b...1600 Signal contacts composition: 1 NO/NC Auxiliary contacts type: Standard Auxiliary contacts operation: Connected position; Test position; Disconnected position mounting mode: Drawout [Ie] rated operational current: AC-12: 6 A at 690 V AC 50/60 Hz; AC-12: 8 A at 240 V AC 50/60 Hz; AC-12: 8 A at 380 V AC 50/60 Hz; AC-12: 8 A at 480 V AC 50/60 Hz; DC-12: 0.3 A at 250 V DC; DC-12: 0.8 A at 125 V DC; DC-12: 2.5 A at 24/48 V DC minimum load: 100 mA at 24 V Accessory / separate part category: Spare part for MasterPact NT; Spare part for MasterPact NW; Spare part for MasterPact NW DC; Spare part for ComPact NS630b...1600 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1.000 cm Package 1 Width: 5.000 cm Package 1 Length: 5.000 cm Package 1 Weight: 18.000 g Unit Type of Package 2: BB1 Number of Units in Package 2: 100 Package 2 Height: 7.000 cm Package 2 Width: 21.000 cm Package 2 Length: 35.000 cm Package 2 Weight: 1.800 kg Unit Type of Package 3: S03 Number of Units in Package 3: 600 Package 3 Height: 30.000 cm Package 3 Width: 30.000 cm Package 3 Length: 40.000 cm Package 3 Weight: 11.080 kg Country of origin: CN Warranty (in months): 18
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430331704
- SAP 1200497397
- Code 82627446
Product Documentation
