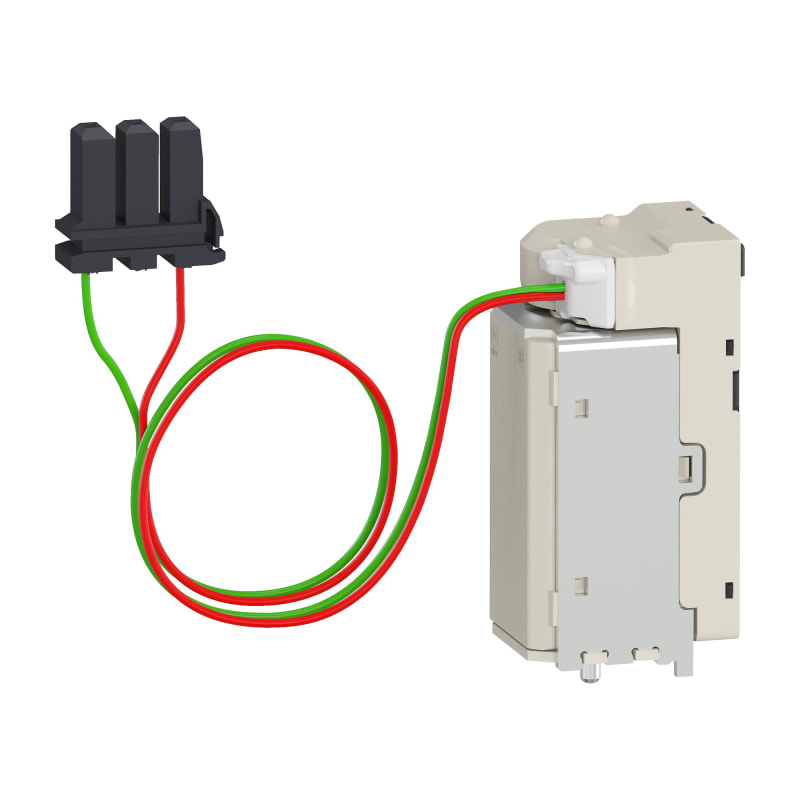

Schneider Electric XF or MX voltage release, standard, Masterpact MTZ1/2/3, 100/130 VAC 50/60 Hz, 100/130 VDC, spare part LV833661SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833661SP In-or Out coil, MX-XF - 100/130 V DC/AC for Masterpact MTZ - spare part.
Technical Specifications
- Manufacturer part number (MPN)
- LV833661SP
- EAN / GTIN
- 3606480932533
- Sales unit
- pcs
- Package quantity
- 120 pcs
- Range
- MasterPact
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ2 circuit-breaker; Masterpact MasterPact MTZ3 circuit-breaker; Masterpact MasterPact MTZ1 circuit-breaker
- Voltage release type
- Closing coil; Opening coil
- [Un] voltage power supply
- 100...130 V AC 50/60 Hz; 100...130 V DC
- Threshold tripping voltage
- 0.7...1.1 Un on opening; 0.85...1.1 Un on closing
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Fixed/drawout
- Maximum response time
- 60 ms on opening for MasterPact MTZ1; 60 ms on opening for MasterPact MTZ2; 60 ms on opening for MasterPact MTZ3; 65 ms on closing for MasterPact MTZ1; 80 ms on closing for MasterPact MTZ2; 90 ms on closing for MasterPact MTZ3
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.0 cm
- Package 1 Width
- 4.0 cm
- Package 1 Length
- 8.5 cm
- Package 1 Weight
- 237.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 2.513 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Power consumption
- 4.5 W
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage AC 50 Hz
- 100–130 V
- Rated control supply voltage AC 60 Hz
- 100–130 V
- Rated control supply voltage DC
- 100–130 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480932533
- SAP 1200497932
- Code 82639411
Product Documentation
