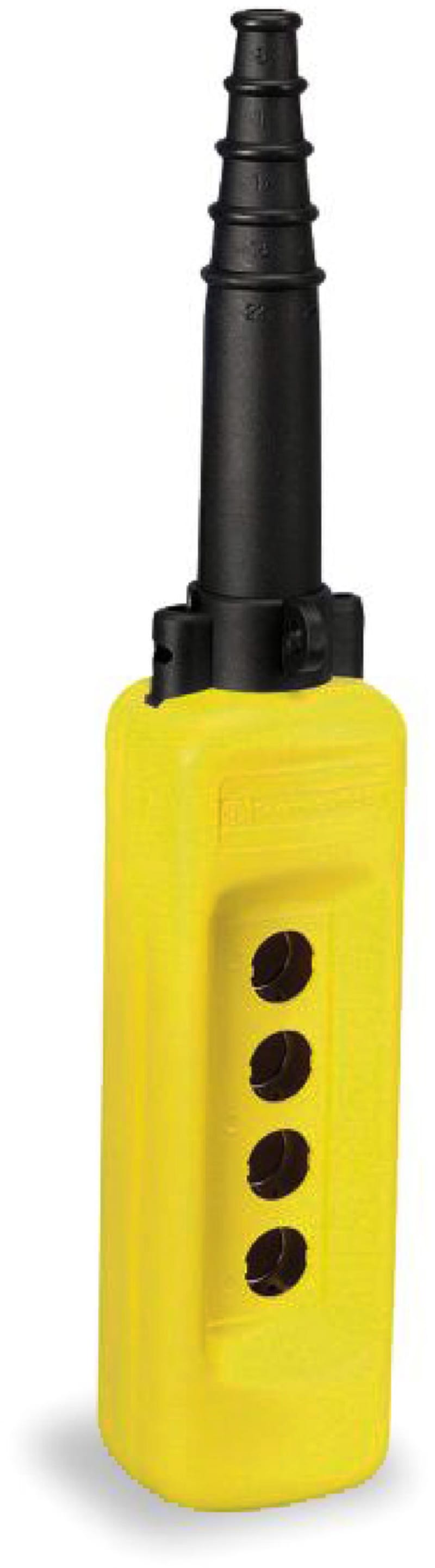

Schneider Electric XACA04 empty pendant control station XAC-A - 4 vertical openings
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric XACA04 empty pendant control station XAC-A - 4 vertical openings is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 48 pcs; Range of product: Harmony XAC; Product or component type: Pendant control station; Device short name: XACA; Control station type: Double insulated.
Technical Specifications
- Manufacturer part number (MPN)
- XACA04
- EAN / GTIN
- 3389110645057
- Sales unit
- pcs
- Package quantity
- 48 pcs
- Range of product
- Harmony XAC
- Product or component type
- Pendant control station
- Device short name
- XACA
- Control station type
- Double insulated
- Enclosure material
- Polypropylene
- Electrical circuit type
- Control circuit
- enclosure type
- Empty enclosure
- Number of cut-out
- 4 cut-outs
- Control station colour
- Yellow
- Cable entry
- Rubber sleeve with stepped entry 8…26 mm
- Guard rail
- Without
- Vertical operator cut-out centre
- 30 mm
- Standards
- UL 508; IEC 60204-32; IEC 60947-5-1; CSA C22.2 No 14
- Product certifications
- CCC; GOST
- Protective treatment
- TH
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Mechanical durability
- 1000000 cycles
- Product weight
- 0.54 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 45.500 cm
- Package 1 Width
- 9.000 cm
- Package 1 Length
- 8.500 cm
- Package 1 Weight
- 599.000 g
- Unit Type of Package 2
- S06
- Number of Units in Package 2
- 48
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 33.400 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Suitable for control current circuit
- Yes
- Suitable for main current circuit
- No
- Number of command positions
- 4
- Colour housing cover
- Yellow
- Housing material
- Plastic
- Degree of protection (IP)
- IP65
- Inner diameter opening
- 26 mm
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110645057
- SAP 1000073756
- Code 8777078
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Metal industrial box plain door H150XW200XD80 IP66 IK10 RAL 7035 NSYSBM15208
Schneider Electric
Schneider Electric A9F08440 ACTI9 IC60H Miniature Circuit Breaker 4P 40 A, Curve D
Schneider Electric
Emergency STOP HEAD,PUSH/TURN,Ø40mm
ZA2BS844
Schneider Electric
Soft start/stop 12A 380-415V
ATS01N212QN
Schneider Electric

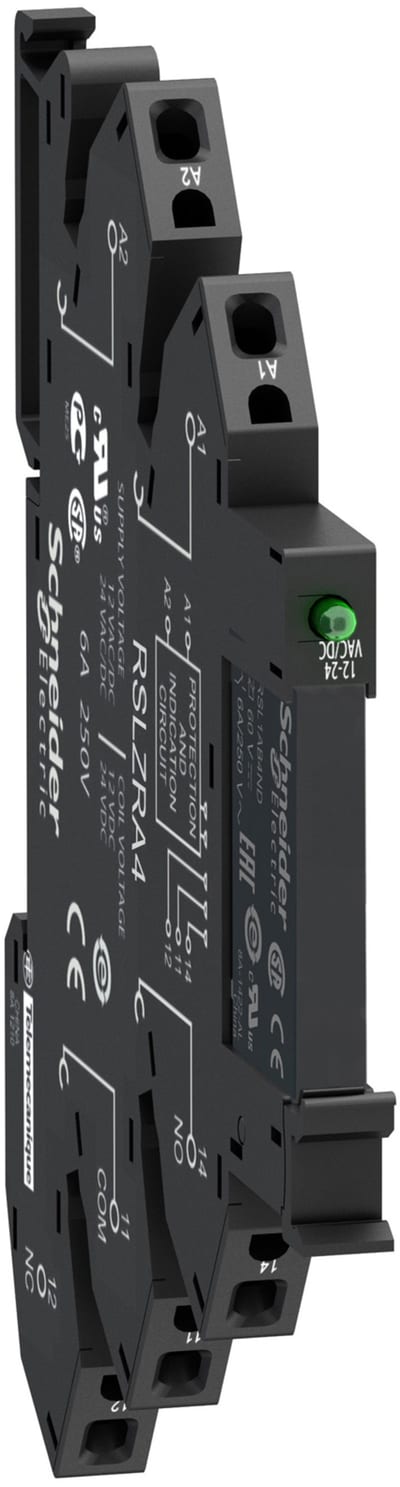

Schneider Electric Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 230 V AC RSL1PRPU
Schneider Electric

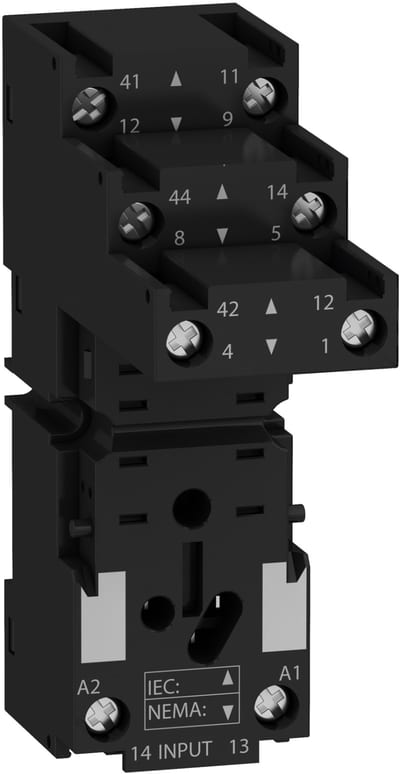

Schneider Electric RXZE2S108M Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC
Schneider Electric

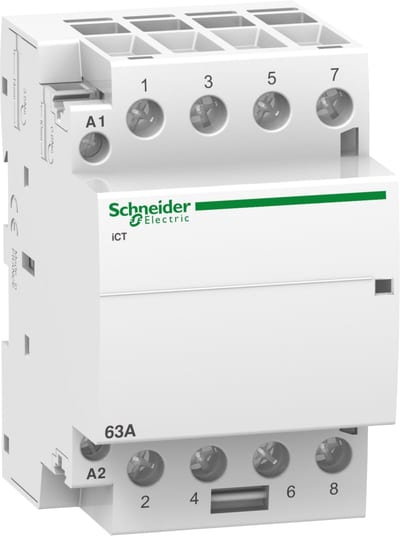

Schneider Electric iCT 63A 4NO 220...240V 50Hz contactor A9C20864
Schneider Electric

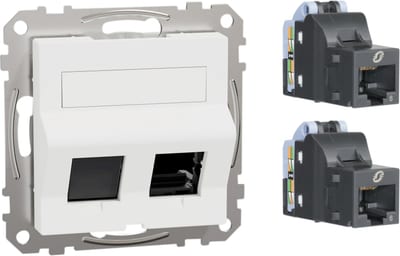

Exxact data outlet 2XCAT6 universal angled, white
