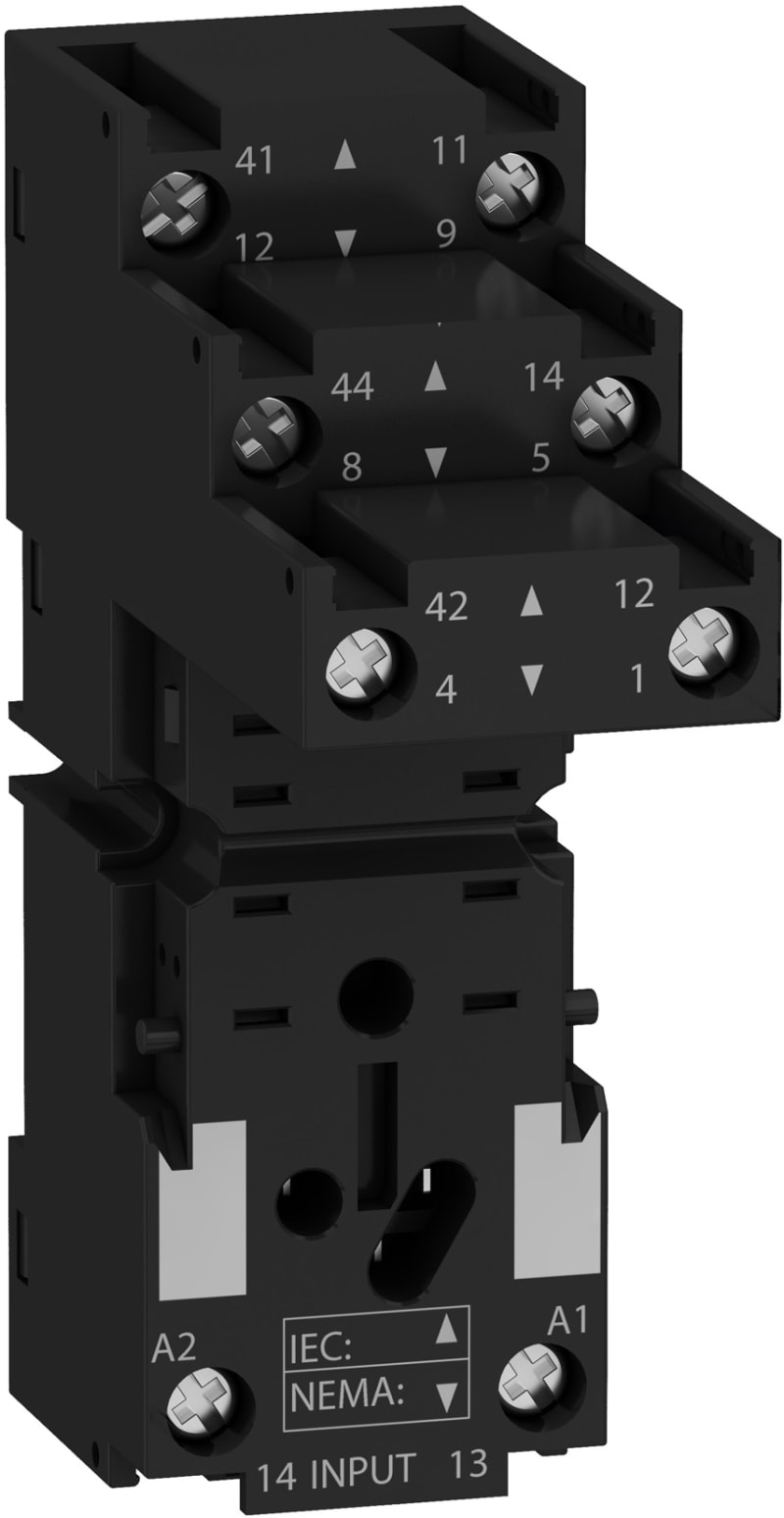

Schneider Electric RXZE2S108M Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC

Schneider Electric RXZE2S108M Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC is listed under Control & Automation / Relay Modules. Sales unit: pcs; Package quantity: 10 pcs; Device short name: RXZ; Product or component type: Socket; Contacts type and composition: 2 C/O; Shape of pin: Flat.

Manufacturer part number (MPN)

RXZE2S108M

EAN / GTIN

3389119404266

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays; Harmony Timer Relays

Product compatibility

Plug-in relay RXM with 2 C/O contact; Plug-in relay REXL with 2 C/O contact

Device short name

RXZ

[Ith] conventional free air thermal current

12 A

Product or component type

Socket

Contacts type and composition

2 C/O

[Ue] rated operational voltage

< 250 V conforming to IEC; < 300 V conforming to UL

Connections - terminals

Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Screw connectors, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw connectors, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw connectors, 2 x 0.25...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Shape of pin

Flat

Tightening torque

< 1 N.m for M3 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

Wire stripping length

8 mm

Contact terminal arrangement

Separate

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

27 mm

Product weight

0.048 kg

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

2500 V

Standards

IEC 61984

Product certifications

CSA; Lloyd's; UL

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.100 cm

Package 1 Width

2.700 cm

Package 1 Length

7.500 cm

Package 1 Weight

49.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

6.900 cm

Package 2 Width

11.500 cm

Package 2 Length

14.300 cm

Package 2 Weight

531.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

200

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

10.955 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Height

79 mm

Depth

61 mm

With detachable clamps

No

Function extension possible

No

Type of electric connection

Screw connection

Number of pins

8

HS Code

8536.90
