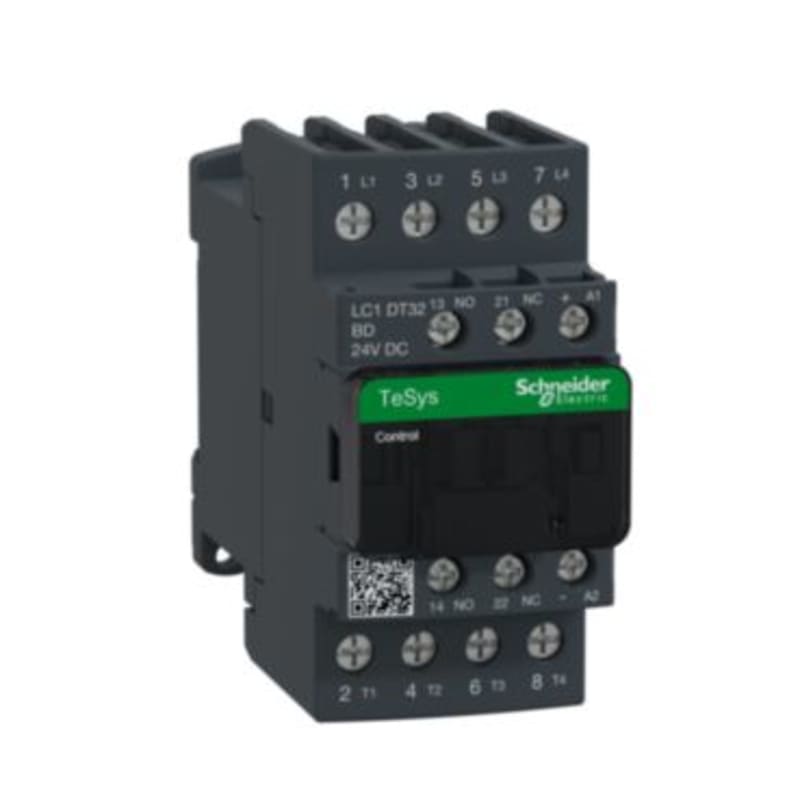

Schneider Electric Contactor, TeSys Deca, 4P(4 NO), AC-1, <=440V, 32A, 24VDC standard coil, screw clamp terminal LC1DT32BD

Schneider Electric LC1DT32BD - TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. 4-pole contactors with DC coil for motor operation and for non-inductive loads.

Manufacturer part number (MPN)

LC1DT32BD EAN / GTIN: 3389110247824 HS code: 8536.90 Sales unit: pcs Package quantity: 15 pcs Voltage: 24 V DC Contact configuration: 4 NO Range: TeSys; TeSys Deca Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load Utilisation category: AC-1 Poles description: 4P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC [Ie] rated operational current: 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit [Uc] control circuit voltage: 24 V DC Compatibility code: LC1D Pole contact composition: 4 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for signalling circuit; 32 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 300 A at 440 V for power circuit conforming to IEC 6094

HS Code

8536.90

• EAN 3389110247824
• SAP 1000253294
• Code 8218853
