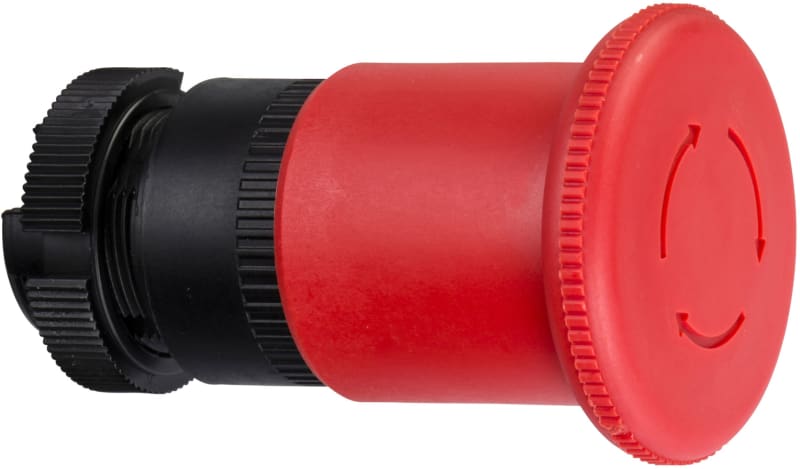

Emergency STOP HEAD,PUSH/TURN,Ø40mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZA2BS844 Emergency stop.,try/rotary,.
Technical Specifications
- Manufacturer part number (MPN)
- ZA2BS844
- EAN / GTIN
- 3389110591767
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Diameter
- 40 mm
- Range of product
- Harmony XAC
- Product or component type
- Head for emergency switching off push-button
- Sale per indivisible quantity
- 1
- Product compatibility
- XACA..
- Mounting location
- Front of enclosure
- Overvoltage category
- Class II conforming to IEC 61140
- Operator profile
- Red mushroom Ø 40 mm
- Product weight
- 0.05 kg
- Marking
- Unmarked
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- IK degree of protection
- IK08
- Standards
- IEC 60204-32; IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60947-5-5; IEC 62262
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 40
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Red/green
- Suitable for lighting
- No
- Unlocking method
- Turn-release
- Spring-return
- No
- Diameter cap
- 30 mm
- Suitable for emergency stop
- Yes
- Type of button
- Flat
- With lighting
- No
- Degree of protection (IP)
- IP65/IP67
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110591767
- SAP 1000050708
- Code 8533997
Product Documentation
