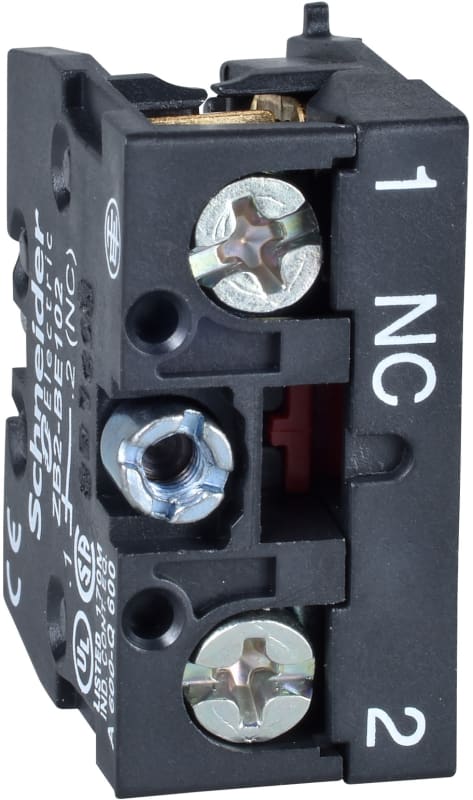

Contact element 1NC (ZB2BE102)

Schneider Electric ZB2BE102 Contact Element 1NC.

Manufacturer part number (MPN)

ZB2BE102

EAN / GTIN

3389110612615

Sales unit

pcs

Package quantity

5 pcs

Contact configuration

1 NC

Range of product

Harmony XAC

Product or component type

Contact block

Component name

ZB2

Electrical circuit type

Control circuit

Contact block application

Single speed

Contact block type

Single

Type of operator

Spring return

Product compatibility

XACA; XB4; XB5

Contacts type and composition

1 NC

Mounting of block

Front mounting

Contact operation

Slow-break

Mechanical durability

1000000 cycles

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm

Operating force

13…15 N

Short-circuit protection

10 A fuse protection by cartridge fuse type gG (gl)

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1; 48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1; 65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1

Terminals description ISO n°1

(11-12)NC

Product weight

0.02 kg

Connections - terminals

Screw clamps terminals, 1 x 2.5 mm² with or without cable end; Screw clamps terminals, 2 x 1.5 mm² with or without cable end

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Electrical shock protection class

Class II conforming to IEC 61140

Standards

IEC 60204-32; IEC 60947-5-1; CSA C22.2 No 14; UL 508

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

240

Country of origin

ID

Warranty (in months)

18

HS Code

8536.50
