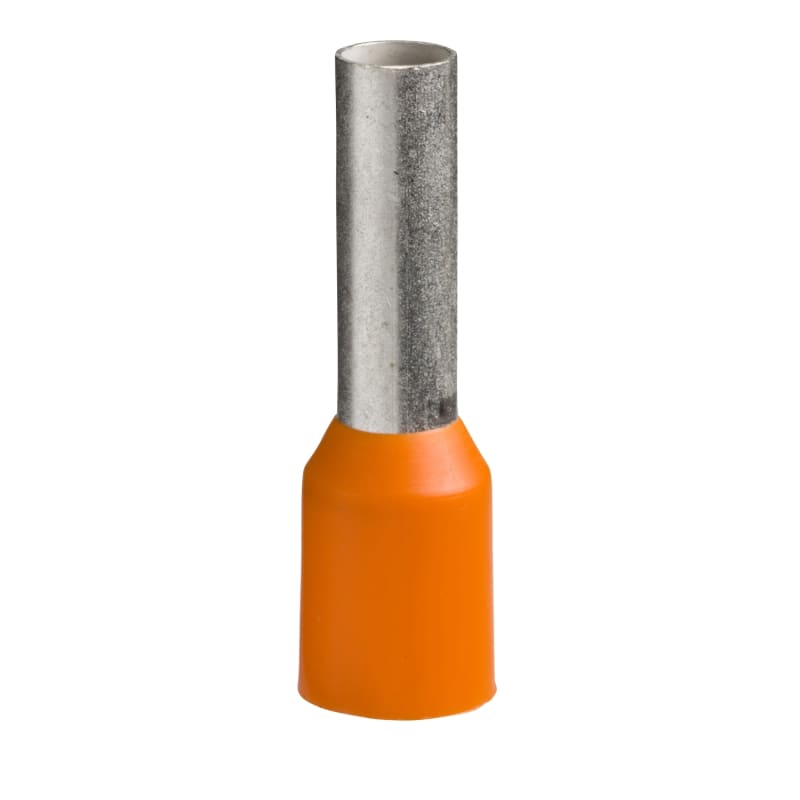

End Sleeves 4 mm² SHORT with Collar
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric DZ5CE042 Ferrules 4mm² Short With Collar.
Technical Specifications
- Manufacturer part number (MPN)
- DZ5CE042
- EAN / GTIN
- 3389110537116
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 4 mm²
- Range of product
- Linergy
- Product or component type
- Cable end
- Cable end size
- Medium
- Standards
- NF C 63-023
- Type of packing
- String of bags
- Quantity per set
- 10 sets of 100
- Cable cross section
- 4 mm²
- Cable end type
- Single conductor
- Additional information
- Without marker tag holder
- Colour
- Orange
- Bezel material
- Halogen-free plastic
- Tube material
- Copper conforming to ISO 1337
- Number of cables
- 1
- AWG gauge
- 12 AWG
- Bezel size
- Ø 5.4 mm
- Tube diameter
- 3.2 mm
- Length
- 17 mm
- Tube length
- 10 mm
- Product weight
- 0.3 kg
- Product certifications
- UL
- Ambient air temperature for operation
- -20…105 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 1000
- Number of Units in Package 3
- 30000
- Country of origin
- DE
- Warranty (in months)
- 18
- Sleeve length
- 10 mm
- Insulated
- Yes
- Halogen free
- Yes
- Surface protection
- Tinned
- Total length
- 17 mm
- Construction type
- Standard
- Nominal cross section
- 4 mm²
- For cables resistant to short circuit
- No
- Reel/roll packaging
- No
- Material
- Copper
- With identification flag
- No
- Material insulation
- Polyamide (PA)
- AWG size
- 12
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110537116
- SAP 1000058404
- Code 8860127
