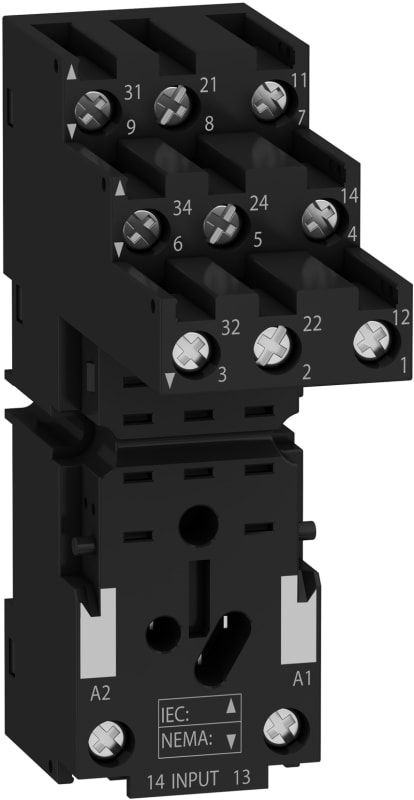

Schneider Electric Socket, separate contact, 10 A, relay type RXM3, screw connector, 250 V AC RXZE2S111M

Schneider Electric RXZE2S111M Plinth with separately terminal 3 CO, 10A, < 250V, kompatiblet with Plug-in relay RXM (3 C/O).

Manufacturer part number (MPN)

RXZE2S111M

EAN / GTIN

3389119404273

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Product compatibility

Plug-in relay RXM with 3 C/O contact

Device short name

RXZ

[Ith] conventional free air thermal current

10 A

Product or component type

Socket

Contacts type and composition

3 C/O

[Ue] rated operational voltage

< 250 V conforming to IEC; < 300 V conforming to UL

Connections - terminals

Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Screw connectors, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw connectors, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw connectors, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Shape of pin

Flat

Tightening torque

< 1 N.m for M3 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

Wire stripping length

8 mm

Contact terminal arrangement

Separate

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

27 mm

Product weight

0.058 kg

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

2500 V

Standards

IEC 61984

Product certifications

UL; Lloyd's; CSA

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

200

Country of origin

CN

Warranty (in months)

18

HS Code

8536.90

• EAN 3389119404273
• SAP 1000054628
• Code 8829204
