HIGH Intensity Flashing LED Orange
Pricing
Request a quote
We reply within 24 hours
Product Description

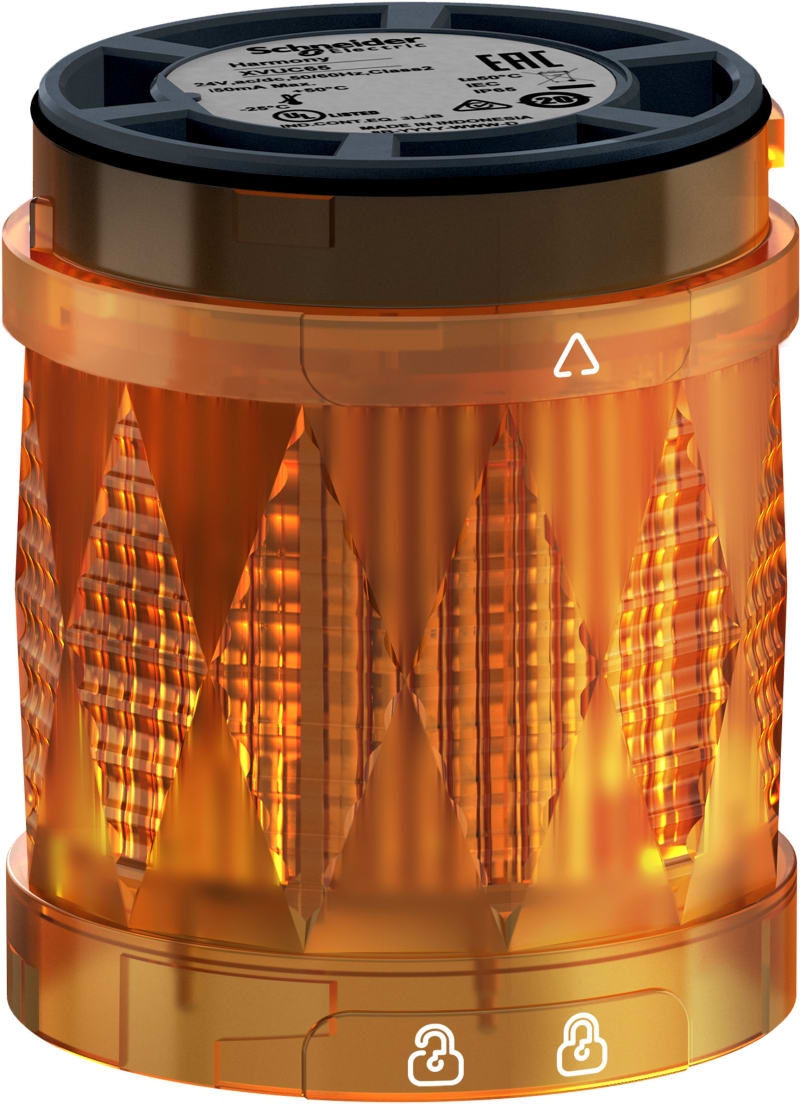

Schneider Electric XVUC65 Ø60 mm LED light unit for XVU lyskolonne in orange colour with heavy-duty flash.
Technical Specifications
- Manufacturer part number (MPN)
- XVUC65
- EAN / GTIN
- 3606480887086
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Range of product
- Harmony XVU
- Product or component type
- Modular tower light
- Beacon or indicator bank unit type
- LED unit
- Mounting diameter
- 60 mm
- Component name
- XVU
- Light source
- LED, orange
- Device application
- Automotive; Packaging machine; Machine tools
- Signalling type
- High flashing
- Assembly style
- Customer assembly, up to 3 units
- Material
- PC (polycarbonate) V-2 conforming to UL 94
- [Us] rated supply voltage
- 24 V AC/DC
- Maximum power dissipation in W
- 2.9 W
- Current consumption
- <= 150 mA
- Length
- 60 mm
- Product weight
- 0.085 kg
- Product certifications
- UL; CSA; CE; EAC; RCM
- Ambient air temperature for storage
- -40…70 °C
- IP degree of protection
- IP65
- Ambient air temperature for operation
- -25…50 °C
- Vibration resistance
- 2 gn
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Number of Units in Package 3
- 192
- Country of origin
- ID
- Warranty (in months)
- 18
- Colour
- Orange
- Outer diameter
- 60 mm
- Function
- Continuous-/flashing light
- Voltage type
- AC/DC
- Lamp type
- LED
- Degree of protection (IP)
- IP65
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480887086
- SAP 1200271344
- Code 82234200
Product Documentation
