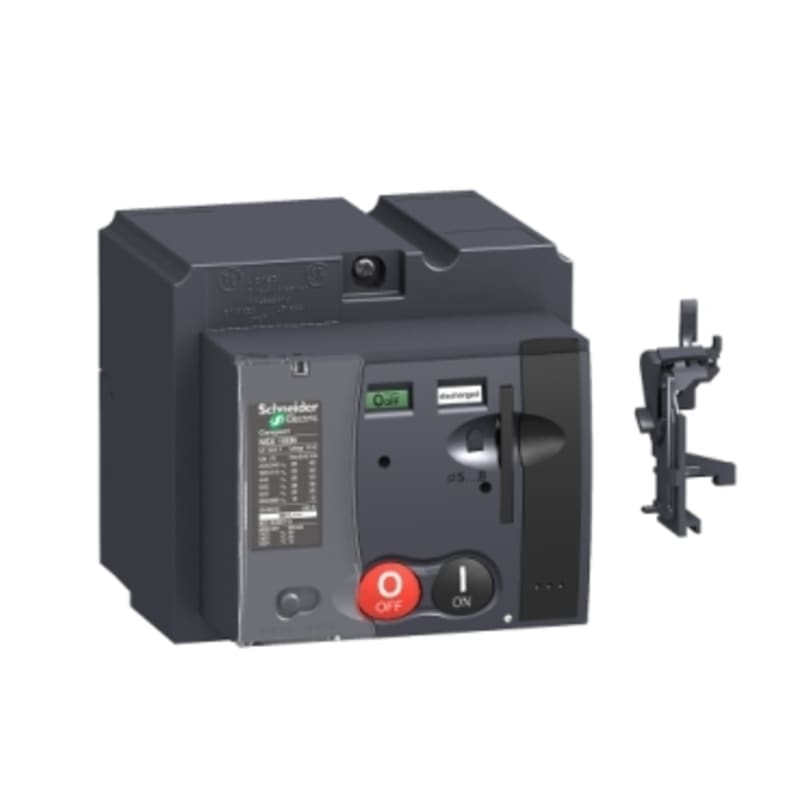

Schneider Electric Standard motor mechanism module MT100/160, ComPacT NSX100/160, 110/130VDC LV429438
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429438 Motor mechanism 110-130VDC NSX100/160.
Technical Specifications
- Manufacturer part number (MPN)
- LV429438
- EAN / GTIN
- 3606480020049
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Device short name
- MT250
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC; ComPacT NSX160 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 110...130 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 160 A; 100 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in W
- 500 W - closing; 500 W - opening
- Provided equipment
- SDE adaptor
- Locking options description
- 1 to 3 padlocks Ø 5 to Ø 8; Padlocking in OFF position
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 110–130 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020049
- SAP 1000092322
- Code 8930303
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Unmarked legend, Harmony XAC, plastic, yellow, 22mm push button, 60mm label, unmarked ZB2BY9101
Schneider Electric
Prefab.Connection INS1600/LGY 4P vertical P
LVS04482
Schneider Electric
Schneider Electric Actassi - plinth raiser - depth 1000 mm NSYAEBP2F810
Schneider Electric

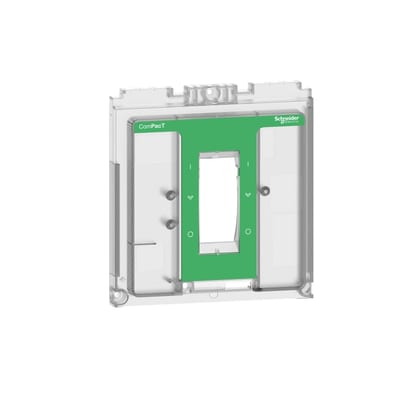

Schneider Electric Front cover, ComPacT NSX400/630, 3 and 4 poles, low performance (F/N/H), retrofit front cover, spare part LV4344ALT
Schneider Electric

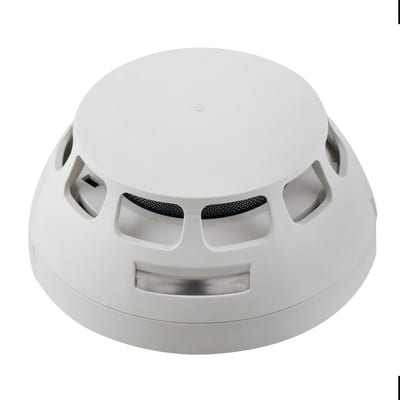

Esmi Impresia Multicriteria Detector
FFS06741003
Schneider Electric

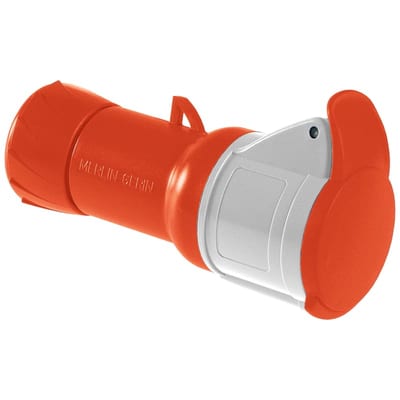

Schneider Electric Wander socket outlet, Mureva PK, 32A, 3P+E, 400V, IP44 PKF32M434
Schneider Electric
Rocker Switch Head Fixed Black
ZB5AD28
Schneider Electric

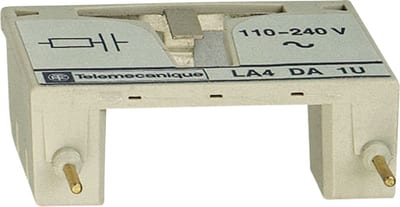

Schneider Electric TeSys D - suppressor module - RC circuit - 110...240 V AC LA4DA1U
