Jf.relay RH197P 220/240VAC just
Pricing
Request a quote
We reply within 24 hours
Product Description

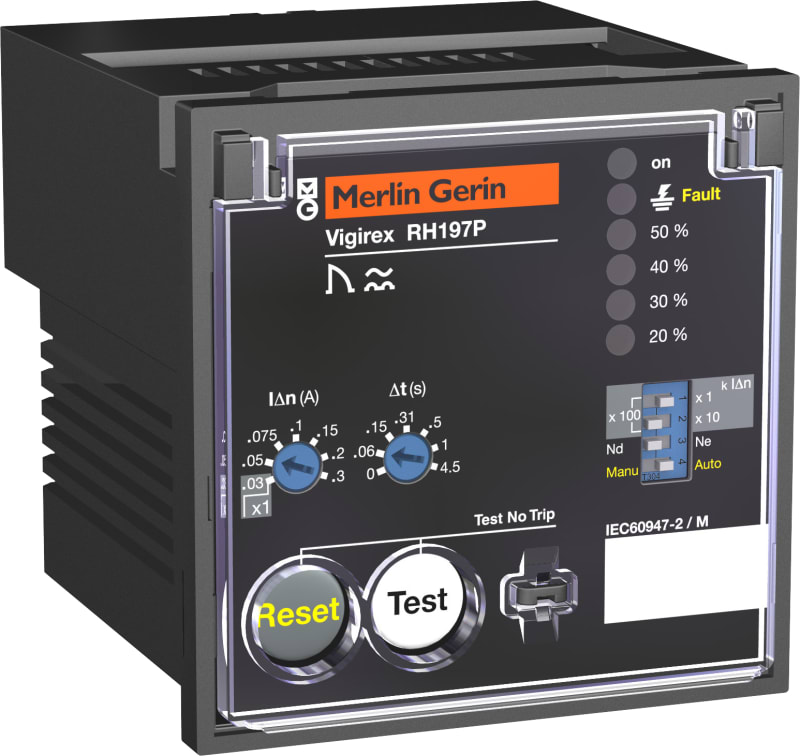

Schneider Electric 56507 Earth-fault relay Vigirex RH197P 220 FOR 240V AC auto or manual reset.
Technical Specifications
- Manufacturer part number (MPN)
- 56507
- EAN / GTIN
- 3303430565079
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Voltage
- 220/240 V AC
- Operating voltage AC 50 Hz
- 220–240 V
- Operating voltage AC 60 Hz
- 220–240 V
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 220–240 V
- Supply voltage AC 60 Hz
- 220–240 V
- Current measuring range
- 0.015–60 mA
- Rated switch current
- 8 A
- Rated operating frequency
- 50–400 Hz
- Voltage measuring range
- 0–1000 V
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Clip connection
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For AC-current system
- Response value amperage 1
- 0.03–30 mA
- Response value amperage 2
- 0–30000 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 4.82 s
- Indication of difference current
- No
- Error registration possible
- No
- Number of contacts as change-over contact
- 2
- Width
- 72 mm
- Height
- 72 mm
- Depth
- 92 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303430565079
- SAP 1000419904
- Code 8983642
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 1P+N, 40A, A-SI type, instantaneous, 300MA, 230VAC A9Y85640
Schneider Electric
Wireless Ø40 SOPPKN.ZB5-HEAD,sender,black
ZB5RTC2
Schneider Electric
Schneider Electric Standard motor mechanism module MT100/160, ComPacT NSX100/160, 110/130VDC LV429438
Schneider Electric
Schneider Electric Unmarked legend, Harmony XAC, plastic, yellow, 22mm push button, 60mm label, unmarked ZB2BY9101
Schneider Electric
Prefab.Connection INS1600/LGY 4P vertical P
LVS04482
Schneider Electric
Schneider Electric Actassi - plinth raiser - depth 1000 mm NSYAEBP2F810
Schneider Electric
Schneider Electric Front cover, ComPacT NSX400/630, 3 and 4 poles, low performance (F/N/H), retrofit front cover, spare part LV4344ALT
Schneider Electric
Esmi Impresia Multicriteria Detector
FFS06741003
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 56507?
- 56507 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 56507.
- What is the HS code for 56507?
- The customs tariff (HS) code for 56507 is 8536.90.
- Who manufactures 56507?
- 56507 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for 56507?
- Yes — the 56507 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 56507?
- The minimum order quantity is 1.
- Is 56507 available?
- Yes — 56507 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
