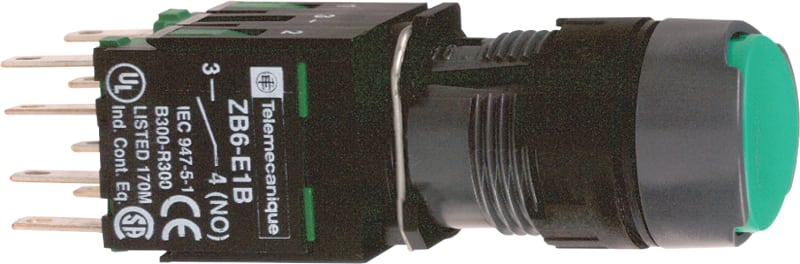

Schneider Electric Complete push button, Harmony XB6, green flush pushbutton, 16mm, spring return, 1NO, unmarked XB6AA31B

Schneider Electric XB6AA31B Control device 16mm, complete units.

Manufacturer part number (MPN)

XB6AA31B

EAN / GTIN

3389110764253

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony XB6

Product or component type

Complete push-button

Device short name

XB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green flush, unmarked

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Faston connectors, connection size: 2.8 x 0.5 mm

CAD overall width

18 mm

CAD overall height

18 mm

CAD overall depth

57 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.019 kg

Operating position

Any position

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1 mm (NO changing electrical state); 3.5 mm (total travel)

Operating force

3.5 N NO changing electrical state

Mechanical durability

2000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94

Standards

IEC 60947-5-5; IEC 60947-1; JIS C 4520; IEC 60947-5-1; UL 508; JIS C 852; CSA C22.2 No 14

Product certifications

GOST; CCC; UL; CSA

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

75

Warranty (in months)

18

Hole diameter

16.2 mm

Colour button

Green

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Black

Type of electric connection

Flat plug-in connection

Degree of protection (IP)

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Round

Switching function latching

No

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.50
