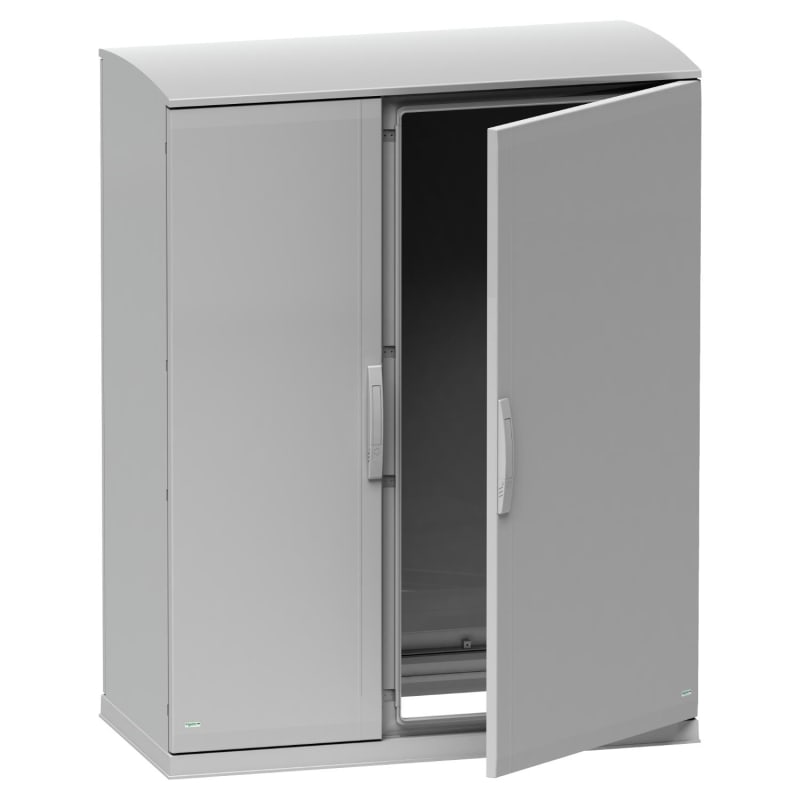

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1250X1000X420 IP44 NSYPLAZT12104G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLS REGNT TO.SOK 7035 1250X1000X420.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT12104G
- EAN / GTIN
- 3606480776045
- Sales unit
- pcs
- Package quantity
- 2 pcs
- IP rating
- IP44
- Dimensions
- 1250×1000×420
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 1250 mm
- Nominal width
- 1000 mm
- Nominal depth
- 420 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (180 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Rear; Bottom; Front; Top
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1250 mm
- Depth
- 420 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1657 N
- Max. permitted load of the door(s) according to IEC 62208
- 353 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776045
- SAP 1000752574
- Code 8486562
