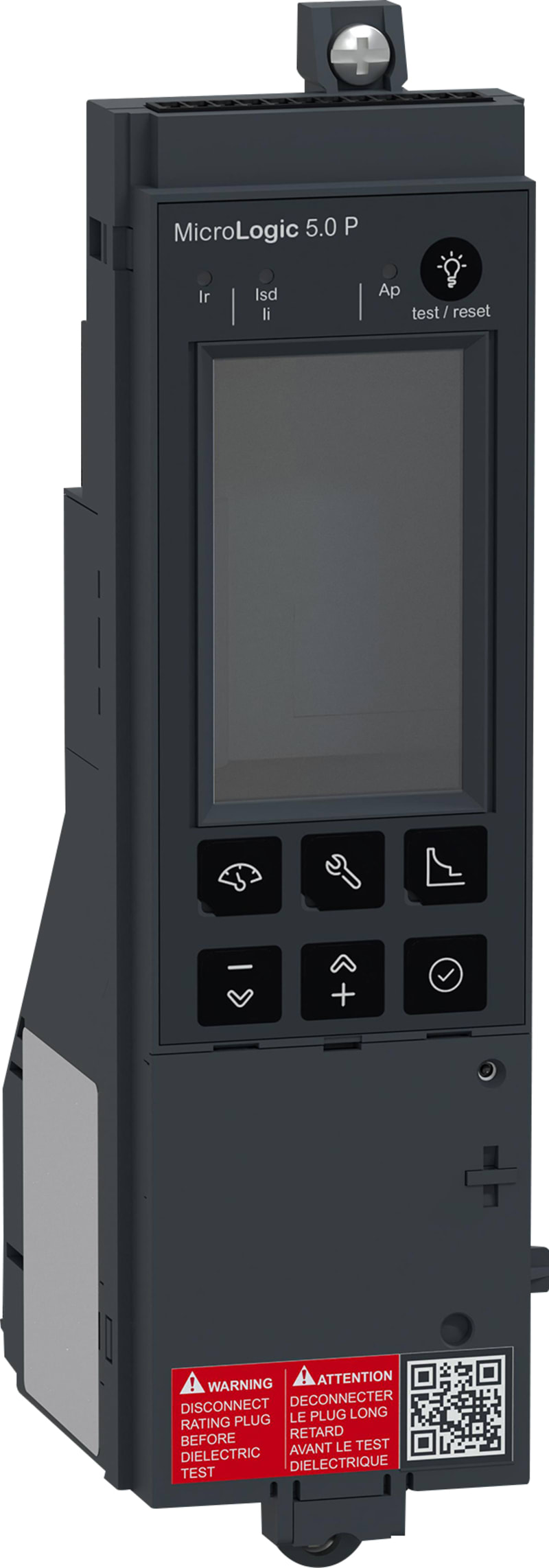

Schneider Electric Control unit MicroLogic 5.0P, ComPacT NS630B to NS1600 fixed and manually operated, selective protections C5PFM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C5PFM Protection-Micrologic 5.0P for Circuit breaker ComPacT NS630b for NS3200-manual-fixed-mounted.
Technical Specifications
- Manufacturer part number (MPN)
- C5PFM
- EAN / GTIN
- 3606482098329
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- ComPacT
- Range of product
- ComPacT NS630b...1600 new generation
- Product or component type
- Control unit
- Trip unit name
- MicroLogic 5.0 P
- Trip unit technology
- Electronic
- Range compatibility
- ComPacT NS630b...1600
- Device application
- Distribution
- Number of poles
- 3P; 4P
- Protected poles description
- 4t; 3t; 3t + N/2
- Trip unit protection functions
- Selective protection
- Protection type
- L : for short time short-circuit protection; S : for overload protection (long time); I : for instantaneous short-circuit protection
- Trip unit rating
- 630 A at 50 °C; 800 A at 50 °C; 1000 A at 50 °C; 1250 A at 50 °C; 1600 A at 50 °C
- Network type
- AC
- Network frequency
- 50/60 Hz
- Circuit breaker mounting mode
- Fixed
- Long-time pick-up adjustment type Ir (thermal protection)
- Adjustable 9 settings
- [Ir] long-time protection pick-up adjustment range
- 0.4...1 x In
- Long-time protection delay adjustment type tr
- Adjustable 9 settings
- [tr] long-time protection delay adjustment range
- 0.7…16.6 s at 7.2 x Ir; 0.7…24 s at 6 x Ir; 12.5…600 s at 1.5 x Ir
- Thermal memory
- 20 mn
- Short-time protection pick-up adjustment type Isd
- Adjustable 9 settings
- [Isd] Short-time protection pick-up adjustment range
- 1.5...10 x Ir
- Short-time protection delay adjustment type tsd
- Adjustable
- [tsd] Short-time protection delay adjustment range
- 0…0.4 s I²t=off; 0.1…0.4 s I²t=on
- Instantaneous protection pick-up adjustment type Ii
- Adjustable 9 settings
- [Ii] instantaneous protection pick-up adjustment range
- 2...15 x In; Off
- Earth-leakage protection
- Without
- Zone selective interlocking ZSI
- With
- Local signalling
- 3 LEDs (red) for electrical fault; 1 LED (red) for internal error; 1 LED (yellow) for overload
- Display type
- Digital display
- Type of measurement
- Power meter
- Communication of data
- Measurement readout; Protection and alarm settings; Maintenance indicators
- Standards
- IEC 60947-4-2
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -25…85 °C
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482098329
- SAP 1200663626
- Code 83099119
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LVS08801 PrismaSeT G Lifting Lug Set of 2
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(132kW)/400...440V(250kW) ATS22C48Q
Schneider Electric
Schneider Electric ACTI9 iIL single indicator light - Yellow - 12-48 Vac/dc A9E18334
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS630BLB, 200KA at 415VAC, 630A, 3P, fixed, manually operated, without control unit C063B3FM
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 110V DC low consumption coil, snap-in terminals LC1D25AFL
Schneider Electric

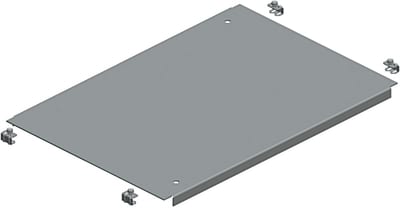

Sealed flenspl 800X1000 SF
NSYEC810
Schneider Electric

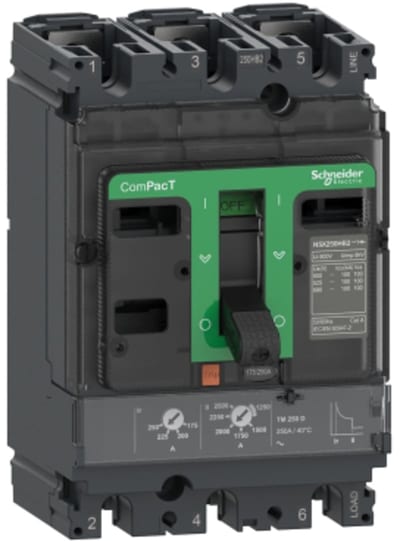

Schneider Electric Circuit breaker, ComPacT NSX250N, 50KA/415VAC, 3 poles, TMD trip unit 125A C25N3TM125
Schneider Electric

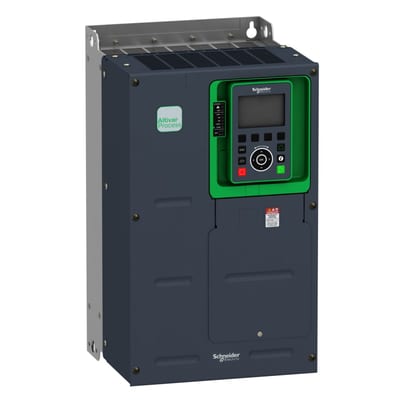

ATV630 IP00 30kW 690V DNV
