Schneider Electric ACTI9 iIL single indicator light - Yellow - 12-48 Vac/dc A9E18334
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9E18334 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Indicator lamp iIL yellow 12-48V AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- A9E18334
- EAN / GTIN
- 3606480088452
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 12-48 V
- range of product
- Acti9
- Product name
- Acti9 iIL
- Product or component type
- Modular pilot light
- Device short name
- iIL
- [Us] rated supply voltage
- 12...48 V AC at 50/60 Hz; 12...48 V DC
- indicator light
- 1 LED yellow, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
- mounting mode
- Fixed
- Mounting support
- Symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Upside: ProDis
- 9 mm pitches
- 2
- Height
- 82 mm
- Width
- 18 mm
- Depth
- 69.5 mm
- Colour
- White (RAL 9003)
- Auxiliary connection terminal
- Tunnel type terminal 1 cable(s) rigid 0.5 mm²; Tunnel type terminal 2 cable(s) rigid 2.5 mm²; Tunnel type terminal 1 cable(s) flexible 0.5 mm²; Tunnel type terminal 2 cable(s) flexible 2.5 mm²; Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- Standards
- IEC 60947-5-1
- IP degree of protection
- IP2; IPxx B
- Pollution degree
- 3
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -35…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- Colour calotte
- Yellow
- Lamp type
- LED
- Max. lamp power
- 0.3 W
- Rated voltage
- 48 V
- Voltage type
- AC/DC
- Width in number of modular spacings
- 1
- Built-in depth
- 69.5 mm
- Degree of protection (IP)
- IP20
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480088452
- SAP 1000343269
- Code 81003181
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS630BLB, 200KA at 415VAC, 630A, 3P, fixed, manually operated, without control unit C063B3FM
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 110V DC low consumption coil, snap-in terminals LC1D25AFL
Schneider Electric
Sealed flenspl 800X1000 SF
NSYEC810
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250N, 50KA/415VAC, 3 poles, TMD trip unit 125A C25N3TM125
Schneider Electric
ATV630 IP00 30kW 690V DNV
ATV630D30Y6428
Schneider Electric

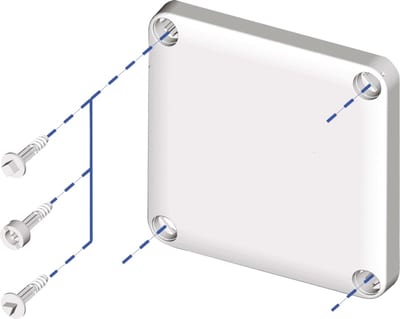

08214 DB Screw FOR Cover 40 MM
NSYAEDS40TB
Schneider Electric

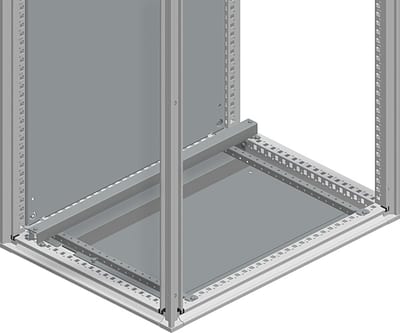

Cable routing, bottom centre 1000
NSYFCG100
Schneider Electric

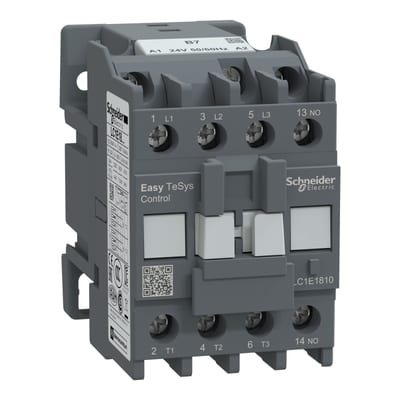

Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,18A,24V AC coil,50/60Hz,1NO auxiliary contact LC1E1810B7
