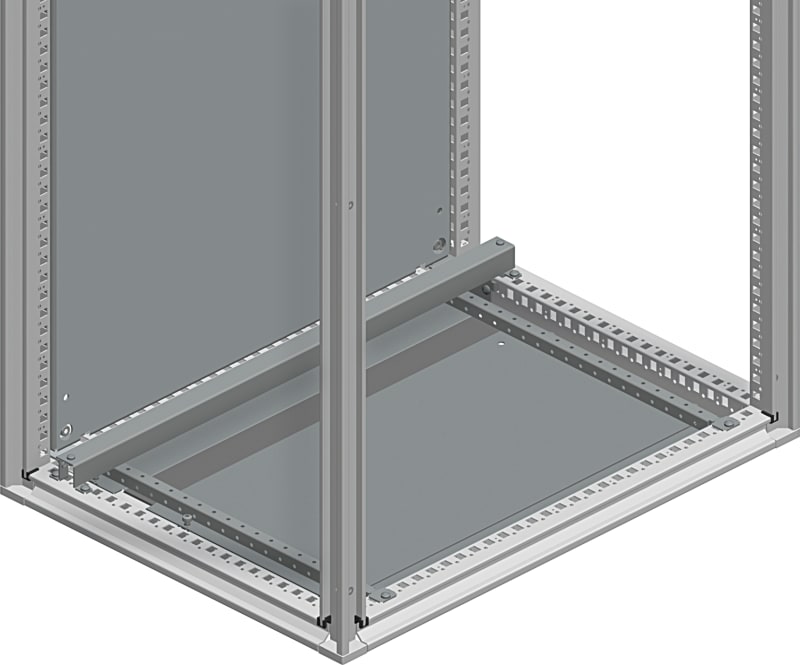

Cable routing, bottom centre 1000
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYFCG100 Cable routing bottom senter 1000.
Technical Specifications
- Manufacturer part number (MPN)
- NSYFCG100
- EAN / GTIN
- 3606480064449
- Sales unit
- pcs
- Range
- PanelSeT
- Category
- Cabling accessory
- Product or component type
- Rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Mounting location
- Bottom frame of enclosure
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Device composition
- fixing elements; 1 rail; 2 mounting support
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- Metal clamp
- Adjustment
- Adjustable in depth every 25 mm
- fixing center
- 950 mm
- Width
- Nominal: 1000 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 97.500 cm
- Package 1 Weight
- 2.388 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 50
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 132.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Height
- 40 mm
- Material thickness
- 4 mm
- Length
- 1000 mm
- Punch shape
- None
- Drill hole distance centrically
- 950 mm
- Surface finishing
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480064449
- SAP 1000470599
- Code 8787560
