Schneider Electric NSYTRP24DPE Linergy TR Push-In PE 2-Level Terminal Block 2.5 mm² 4-Position

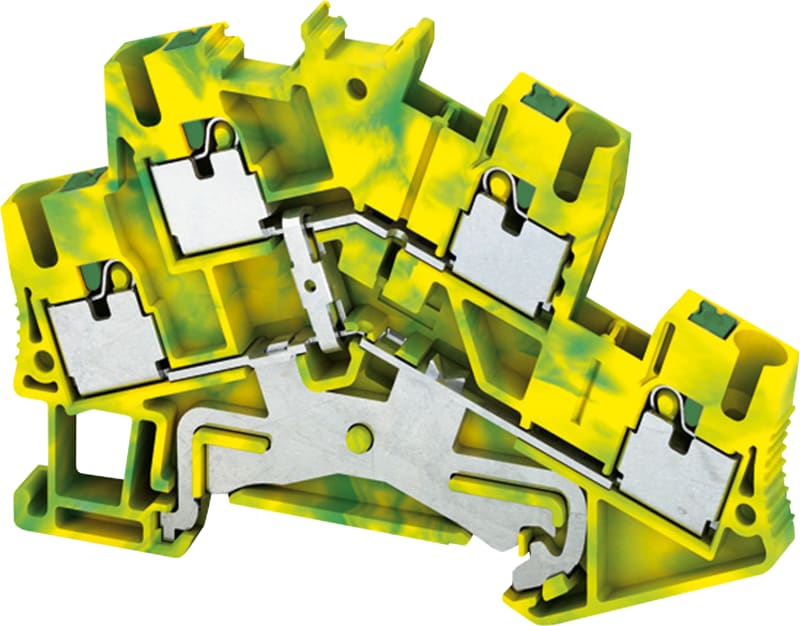

Schneider Electric NSYTRP24DPE is a green-yellow Linergy TR protective-earth terminal block with push-in connection for 2.5 mm² conductors, arranged over two levels with inclined connection. It clips onto a DIN rail, accepts conductors from 0.14 to 4 mm² solid and 0.2 to 2.5 mm² flexible, and requires no tool for connection. The polyamide 6/6 housing measures 5.2 mm wide, 55 mm high and 78 mm long; supplied in sets of 50.

Manufacturer part number (MPN)

NSYTRP24DPE

EAN / GTIN

3606480533259

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

2.5 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRP

Terminal block type

Protective earth

Terminal block level

2

mounting mode

Clip-on

Nominal cross section

2.5 mm²

Length

78 mm

Colour

Green-yellow

Quantity per set

Set of 50

Width

5.2 mm

Height

55 mm

Connections - terminals

1 x push-in: upstream; 1 x push-in: downstream

number of connections

2

Connection position

Inclined

Number of measurement input

4

Cable cross section

0.14…4 mm², solid; 0.2…2.5 mm², flexible with cable end; 0.2…2.5 mm², flexible without cable end

Wire stripping length

10 mm

Tool type

Disconnection: flat screwdriver; Connection: without tool

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

19.9 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

GL; UL; VDE; CSA

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Country of origin

CN

Warranty (in months)

18

PEN function possible

No

Connectable conductor cross section solid-core

0.14–4 mm²

Connectable conductor cross section multi-wired

0.14–2.5 mm²

Type of electrical connection 1

Plug-in connection

Type of electrical connection 2

Plug-in connection

Number of levels

2

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

5.2 mm

Depth

78 mm

Closing plate required

Yes

HS Code

8536.90

• EAN 3606480533259
• SAP 1000402382
• Code 81069773
