Schneider Electric XACB491 Harmony XAC Pendant Control Station 4 Buttons 2 kW

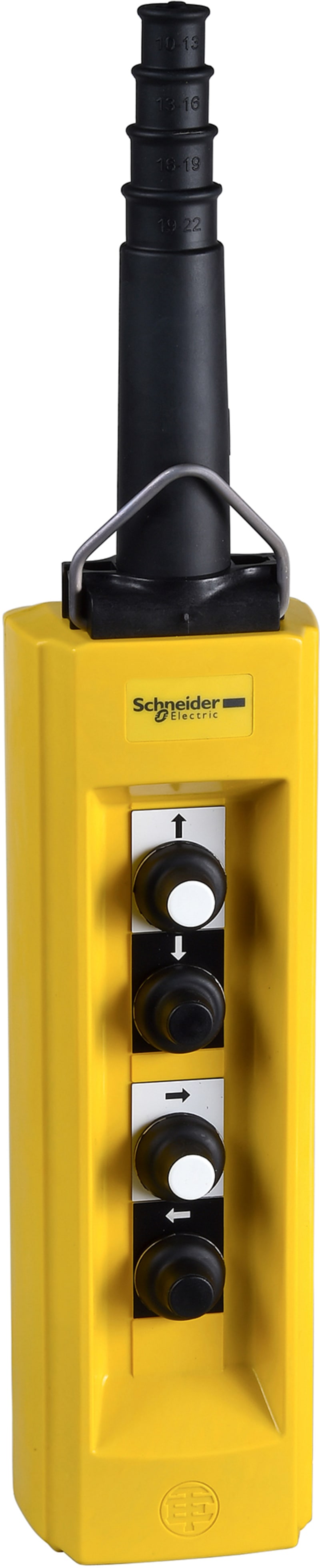

Schneider Electric XACB491 Harmony XAC pendant control station in glass-reinforced polyester, four two-pole push-buttons for single-speed hoist control (raise, lower, left, right) rated at 2 kW. Double-insulated with mechanical interlocking, IP65 protection and rubber stepped cable entry for 10-22 mm cables.

Manufacturer part number (MPN)

XACB491

EAN / GTIN

3389110641769

Sales unit

pcs

Package quantity

6 pcs

Power

2 kW

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

4 push-buttons

Control button type

First push-button 2-pole raise, slow; Second push-button 2-pole lower, slow; Fourth push-button 2-pole left, slow; Third push-button 2-pole right, slow

Product compatibility

XESD1191 for reversing operation

Mechanical interlocking

With mechanical interlocking between pairs

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

IEC 60204-32; CSA C22.2 No 14; IEC 60947-5-1

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 10…22 mm

[Ithe] conventional enclosed thermal current

12 A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 600 V conforming to CSA

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Snap action

Operating force

17 N push-button

Short-circuit protection

10 A fuse protection by cartridge fuse type aM

Rated power in hp

2 hp at 240 V, CSA certified; 3 hp at 600 V, CSA certified; 5 hp at 400 V, CSA certified

Rated operational power in W

2200 W AC-3 at 240 V conforming to IEC 60947-3 appendix A; 2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 240 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A

Electrical durability

300000 cycles AC-3, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-4, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 500000 cycles AC-3, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 500000 cycles AC-4, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 800000 cycles AC-3, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 800000 cycles AC-4, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(23-24)NO; (13-14)NO; (43-44)NO; (33-34)NO

Terminal identifier

(11-12)NC; (13-14)NO

Product weight

1.2 kg

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

24

Warranty (in months)

18

Width

98 mm

Height

499 mm

Depth

76 mm

Number of command positions

4

Colour housing cover

Yellow

Suitable for emergency stop

No

Housing material

Plastic

Number of speeds

1

Degree of protection (IP)

IP65

Country of origin

Czechia

HS Code

8537.10
