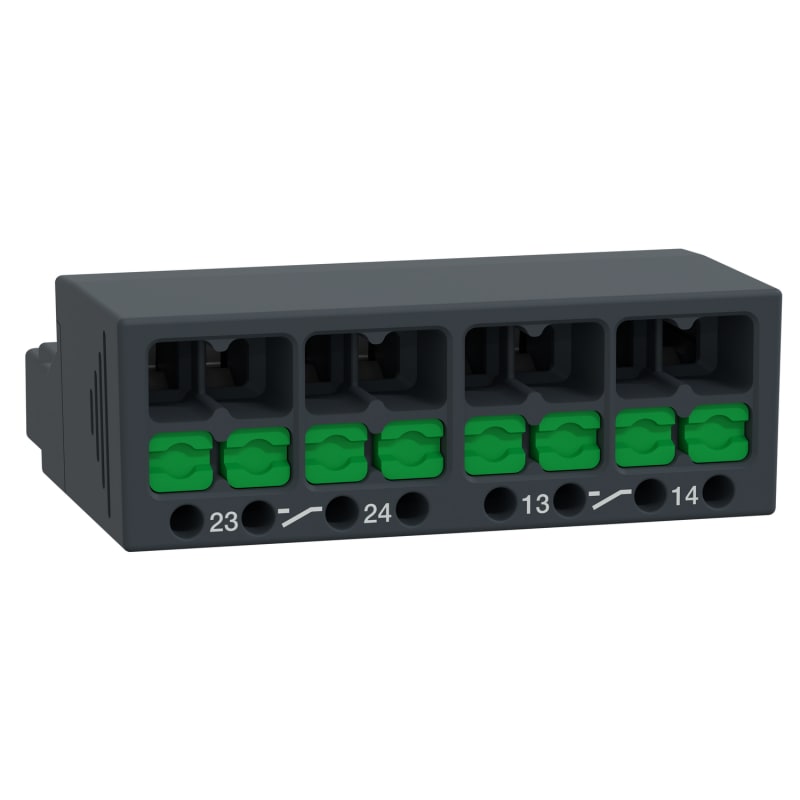

TeSys GV auxiliary contact Snap-In 2NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GVAE20A Auxiliary Contact Block, TeSys Deca,2NO, front mounting, Snap-In terminals,for GV2.
Technical Specifications
- Manufacturer part number (MPN)
- GVAE20A EAN / GTIN: 3606487541943 Sales unit: pcs Package quantity: 10 pcs Contact configuration: 2 NO Range: TeSys; TeSys Deca Device short name: GVAE Product or component type: Auxiliary contact block Product compatibility: GV2P; GV2L; GV2ME; GV2LE; GV2RT; GV3P; GV3L; GV2LM Mounting location: Front side Pole contact composition: 2 NO Connections - terminals: Snap-in terminal: 2 cable(s) 0.5…2.5 mm² - solid; Snap-in terminal: 2 cable(s) 0.5…4 mm² - flexible without cable end; Snap-in terminal: 2 cable(s) 0.5…2.5 mm² - flexible with cable end; Snap-in terminal: 2 cable(s) (20 AWG...12 AWG) - solid; Snap-in terminal: 2 cable(s) (20 AWG...10 AWG) - stranded [Ui] rated insulation voltage: 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14; 250 V conforming to IEC 60947-1 [Ue] rated operational voltage: 24...240 V AC; 24...60 V DC [Ith] conventional free air thermal current: 2.5 A Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GG fuse 10 A; GB2CB06 circuit breaker 10 A maximum Rated operational power in VA: 120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles; 120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 48 VA at 24 V AC-15 - electrical durability: 100000 cycles; 60 VA at 48 V AC-15 - electrical durability: 100000 cycles Rated operational power in W: 15 W at 48 V DC-13 - electrical durability: 100000 cycles; 24 W at 24 V DC-13 - electrical durability: 100000 cycles; 9 W at 60 V DC-13 - electrical durability: 100000 cycles Height: 15.5 mm Width: 45 mm Depth: 41 mm Product weight: 25 g Colour: Dark grey Environmental characteristic: Normal environment Standards: EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ Product certifications: CB Scheme; CE; UKCA; CCC; cULus Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 200 Country of origin: CZ Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606487541943
- SAP 1200879534
- Code 84149495
Product Documentation
More from Schneider Electric
Schneider Electric
NG125L/B 25-2 Modular Power Switch
18753
Schneider Electric
Schneider Electric NSYTRP43BL Linergy TR Push-In Terminal Block 4 mm² Blue 3-Point
Schneider Electric
PLA125 DLPMod insert 7035 114M
NSYDLP114PG
Schneider Electric
Schneider Electric TransferPacT Active Automatic, 500A, 400V, 4P, LCD, frame 630A TA63D4L5004TPE
Schneider Electric
Schneider Electric cartridge M221 - packaging 2 analogue inputs - I/O extension TMC2PACK01
Schneider Electric
Schneider Electric switch disconnector Masterpact MTZ2 08 HF, 800 A, 3 poles, drawout LV848236
Schneider Electric
DOUBLE PUSH BUTTON S+r KN. UMRK G+r (ZB5AL7340)
Schneider Electric
Schneider Electric additionnal EMC filter - 49 A - 3 POLAR WHITE VW3A4425
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GVAE20A?
- GVAE20A can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is GVAE20A.
- What is the HS code for GVAE20A?
- The customs tariff (HS) code for GVAE20A is 8538.90.
- Who manufactures GVAE20A?
- GVAE20A is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for GVAE20A?
- Yes — the GVAE20A datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GVAE20A?
- The minimum order quantity is 1.
- Is GVAE20A available?
- Yes — GVAE20A is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
