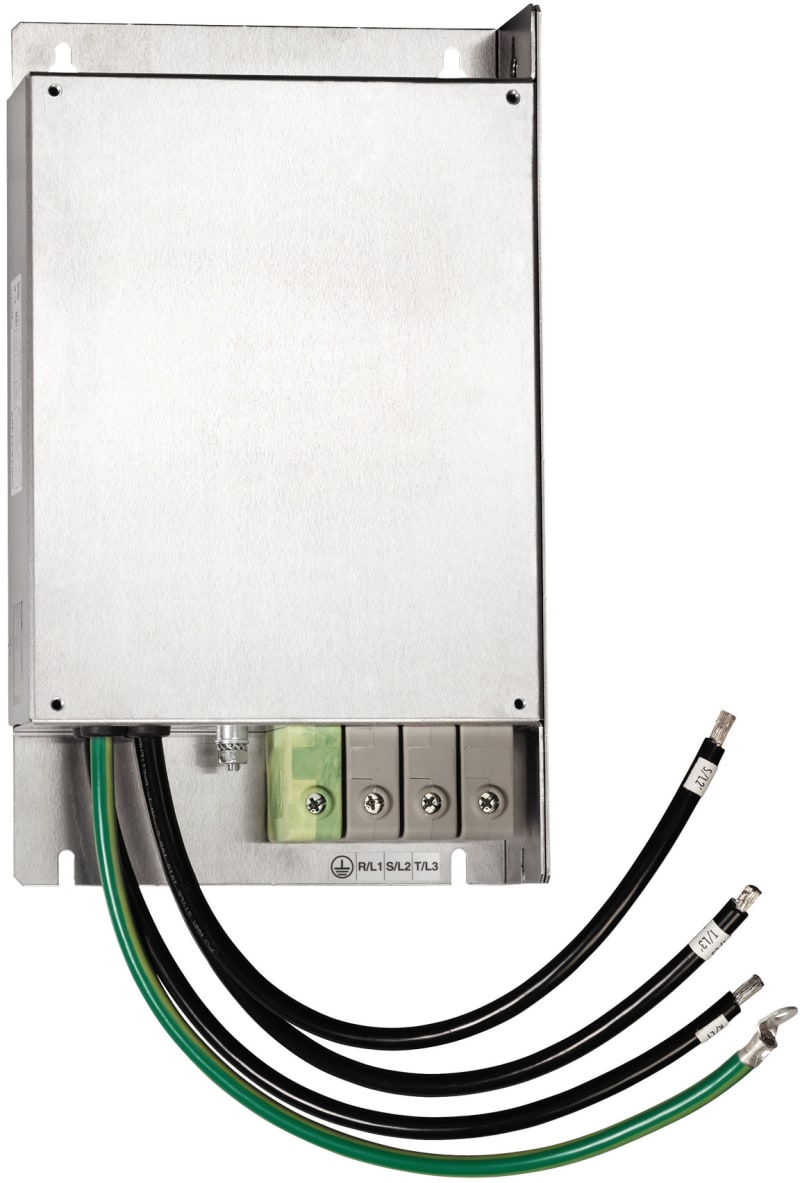

Schneider Electric additionnal EMC filter - 49 A - 3 POLAR WHITE VW3A4425
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A4425 EMC filter 3-phase 240-500V 49A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4425
- EAN / GTIN
- 3606480320880
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 240-500 V
- Range of product
- Lexium; Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar 32; Altivar Machine ATV320
- Product compatibility
- ATV32, 380...500 V, 11...15 kW; Variable speed drive ATV320 at 11 kW, 380...500 V, three phase; Variable speed drive ATV320 at 15 kW, 380...500 V, three phase
- Product specific application
- Radio interference input filter
- Mounting location
- Below variable speed drive
- Network number of phases
- Three phase
- Maximum cable distance between devices
- 20 m conforming to IEC 61800-3 category C1; 100 m conforming to IEC 61800-3 category C2; 150 m conforming to IEC 61800-3 category C3
- [In] rated current
- 49 A
- Thermal losses
- 27.4 W
- Network rated voltage
- 380…500 V
- Tolerance
- - 15...10 %
- Product weight
- 4.75 kg
- Emc filter compatibility
- Type 025
- Country of origin
- TH
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480320880
- SAP 1000528418
- Code 8885751
Product Documentation
