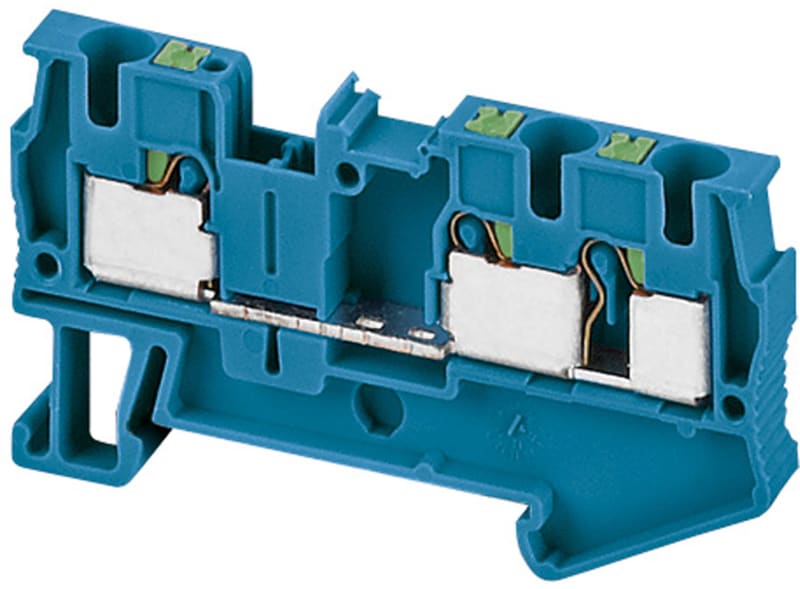

Schneider Electric NSYTRP43BL Linergy TR Push-In Terminal Block 4 mm² Blue 3-Point

Schneider Electric NSYTRP43BL is a Linergy TR pass-through terminal block with push-in connection, 4 mm² nominal cross section, single level and three connection points on clip-on DIN-rail mounting. Rated 800 V and 32 A per EN/IEC 60947-7-1, with polyamide 6/6 housing and copper-alloy conductive parts. Blue coloured, sold as a set of 50 units.

Manufacturer part number (MPN)

NSYTRP43BL

EAN / GTIN

3606480533303

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

4 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRP

Accessory / separate part category

Connection accessory

Terminal block type

Passthrough

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

4 mm²

Length

66.5 mm

Colour

Blue

Quantity per set

Set of 50

Width

6.2 mm

Height

36.5 mm

Connections - terminals

1 x push-in: upstream; 2 x push-in: downstream

number of connections

3

Connection position

Top

Number of measurement input

2

Cable cross section

0.2…4 mm², flexible without cable end; 0.2…6 mm², solid with cable end; 0.8…4 mm², flexible with cable end; 0.2…4 mm², solid without cable end

Wire stripping length

12 mm

Tool type

Connection: without tool; Disconnection: flat screwdriver

[Ue] rated operational voltage

800 V conforming to EN/IEC 60947-7-1; 600 V CSA; 600 V UL

[In] rated current

32 A conforming to EN/IEC 60947-7-1; 30 A CSA; 30 A UL

Material

Polyamide 6/6: insulating case; Copper alloy: connector and screw; Copper alloy: commoning link; Chromium-nickel steel: spring

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

11.3 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

UL; CSA; GL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Warranty (in months)

18

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.2–6 mm²

Connectable conductor cross section multi-wired

0.2–4 mm²

Rated current In

32 A

Rated voltage

800 V

Type of electrical connection 1

Plug-in connection

Type of electrical connection 2

Plug-in connection

Number of levels

1

Number of clamp positions per level

3

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

6.2 mm

Depth

66.5 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Internally connected stages

No

Country of origin

China

HS Code

8536.90

• EAN 3606480533303
• SAP 1000402390
• Code 81069789
