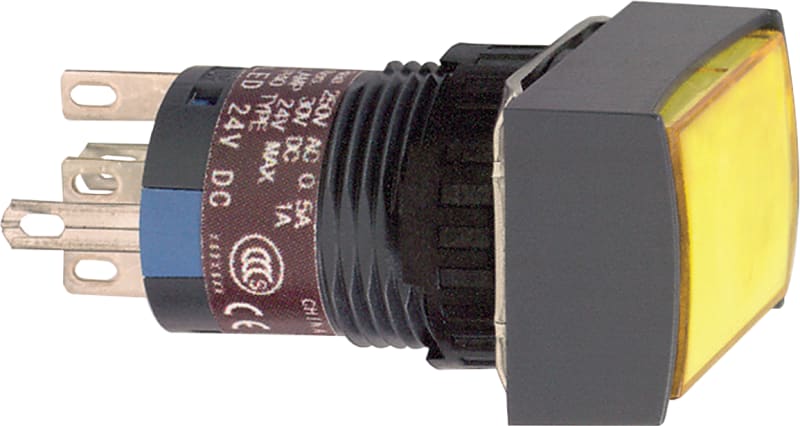

Schneider Electric Illuminated monolithic push button, Harmony XB6E, rectangle yellow flush, 16mm, spring return, 24V DC, 1CO XB6EDW5B1P

Schneider Electric XB6EDW5B1P Control device 16mm, complete units.

Manufacturer part number (MPN)

XB6EDW5B1P

EAN / GTIN

3389110630862

Sales unit

pcs

Package quantity

5 pcs

Voltage

24 V

Range of product

Harmony XB6E

Product or component type

Illuminated monolithic push-button

Device short name

XB6E

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

5

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

Yellow flush

Contacts type and composition

1 C/O

Contact operation

Snap action

Connections - terminals

Insulated faston, connection size: 2.8 x 0.5 mm; Solder terminal, clamping capacity: <= 0.75 mm² 19 AWG; Fast connector socket

Contacts material

Gold-flashed silver

Light source

Integral LED

[Us] rated supply voltage

24 V DC polarised

Product weight

0.006 kg

Operating position

Any position

Marking

CE

Mechanical durability

1000000 cycles

Contact resistance

50 mOhm at 1/6 V

Short-circuit protection

2 A cartridge fuse type gG

[Ith] conventional free air thermal current

3 A (fast connector socket); 5 A

[Ie] rated operational current

1.5 A at 120 V, AC-12 conforming to IEC 60947-5-1; 1 A at 240 V, AC-12 conforming to IEC 60947-5-1; 1 A at 24 V, DC-12 conforming to IEC 60947-5-1; 0.7 A at 24 V, DC-13 conforming to IEC 60947-5-1; 0.2 A at 125 V, DC-12 conforming to IEC 60947-5-1; 0.15 A at 125 V, DC-13 conforming to IEC 60947-5-1

Electrical durability

100000 cycles, AC, 0.7 A at 220 V conforming to IEC 60947-5-1 appendix C

Signalling type

Steady

Current consumption

10 mA

Service life

30000 h

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-10…55 °C

IP degree of protection

IP65 conforming to IEC 60529

Standards

UL 508; JIS C 4520; IEC 60947-5-1; JIS C 852; IEC 60947-1; CSA C22.2 No 14

Product certifications

cURus; CCC

Vibration resistance

1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6

Shock resistance

10 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

Hole diameter

16.2 mm

Colour button

Yellow

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Black

Type of electric connection

Flat plug-in connection

Degree of protection (IP)

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Supply voltage lamp

24 V

Switching function latching

No

Number of contacts as normally open contact

1

Country of origin

China

HS Code

8536.50
