Joystick 5 pos. 2C/O spring return

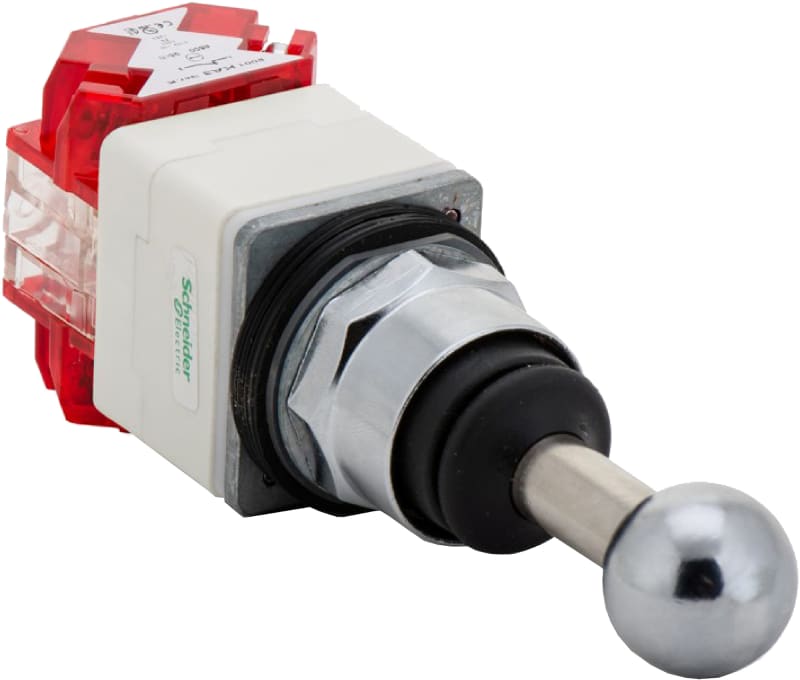

Schneider Electric 9001K35H2 Joystick 5 pos. 2C/O spring return.

Manufacturer part number (MPN)

9001K35H2

EAN / GTIN

3389110915341

Sales unit

pcs

Package quantity

8 pcs

Range of product

Harmony 9001K

Product or component type

Joystick controller

Device short name

9001K

Sale per indivisible quantity

1

Type of operator

To centre spring return

Operator profile

80 mm long operating shaft

Bezel material

Metal

Mounting diameter

30 mm

Product weight

0.372 kg

Operating position

Any position

Shape of signaling unit head

Octagonal

Contacts type and composition

2 C/O

Positive opening

Without

Connections - terminals

Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1

Tightening torque

0.8 N.m conforming to IEC 60947-1

Shape of screw head

Cross slotted

Contacts material

Silver alloy contacts

Short-circuit protection

10 A cartridge fuse conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

2.5 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600-Q600 conforming to NEMA; 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA

[Icm] rated short-circuit making capacity

12 kA at 600 V AC-15, 7200 VA; 15 kA at 480 V AC-15, 7200 VA; 30 kA at 240 V AC-15, 7200 VA; 60 kA at 120 V AC-15, 7200 VA

Rated breaking capacity

3 kA at 240 V AC-15, 720 VA; 6 kA at 120 V AC-15, 720 VA; 1.2 kA at 600 V AC-15, 720 VA; 1.5 kA at 480 V AC-15, 720 VA; 0.1 kA at 600 V DC-13; 0.27 kA at 250 V DC-13; 0.55 kA at 125 V DC-13

Device presentation

Complete product

Operator direction information

4 directions

Size

30 mm

Return

To centre

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Overvoltage category

II conforming to IEC 61140

IP degree of protection

IP65/IP66

NEMA degree of protection

NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4

Standards

JIS C 852; JIS C8201-5-1; UL 508; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; JIS C8201-1

Product certifications

NEMA; UL 508

Vibration resistance

7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.2 cm

Package 1 Width

16.5 cm

Package 1 Length

5.8 cm

Package 1 Weight

304.0 g

Unit Type of Package 2

S01

Number of Units in Package 2

8

Package 2 Height

15.0 cm

Package 2 Width

15.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

2.657 kg

Country of origin

FR

Warranty (in months)

18

Number of switch positions

4

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

31 mm

Number of actuation directions

4

With retraction in 0-position

Yes

Colour front ring

Chrome

Analogue output signal configurable

No

Degree of protection (IP)

IP66

Number of make-and-break contacts per direction

2

Coder

No

Material front ring

Metal

With front ring

Yes

Locking in 0-position

No

Joy stick length

80 mm

HS Code

8536.50
