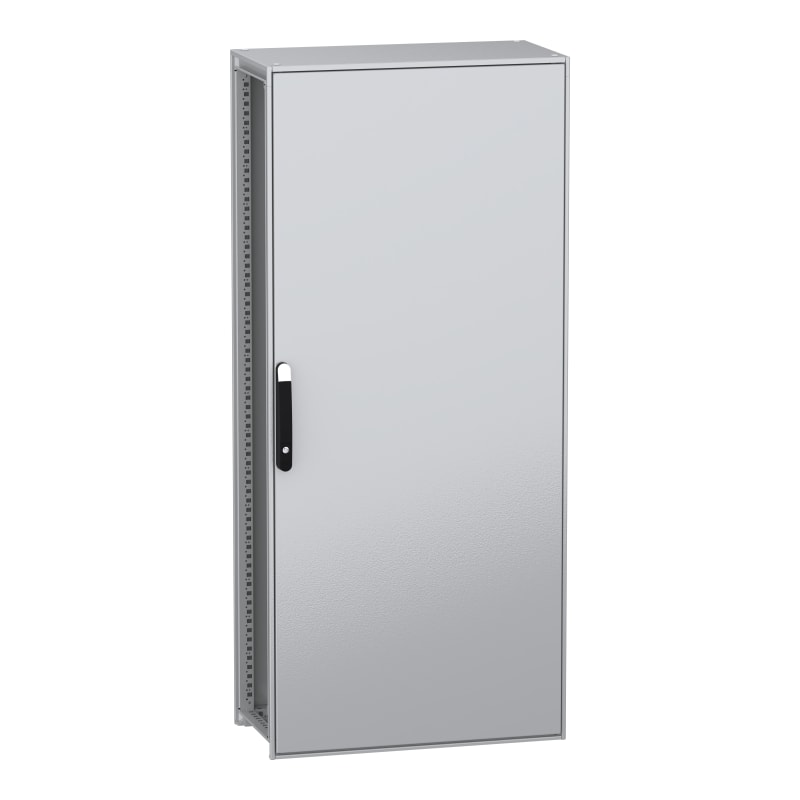

Floor-standing cabinet SFN m/m.pl 1800X800X400
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN18840P Floor-standing cabinet byggbart, PanelSeT SFN, with mounting plate, IP55, 1800x800x400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN18840P
- EAN / GTIN
- 3606486102800
- Sales unit
- pcs
- Dimensions
- 1800×800×400
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 1800 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 400 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 1 mounting plate
- Structure type
- Vertical uprights joined with top and bottom frames; Panels and doors built into the structure; Formed from a single section; Perforated structure with a pitch of 25 mm
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Plain
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Front; Sides of enclosure; Rear
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 100.9 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 193.000 cm
- Package 1 Width
- 85.000 cm
- Package 1 Length
- 49.000 cm
- Package 1 Weight
- 111.700 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 2
- Package 2 Height
- 193.000 cm
- Package 2 Width
- 85.000 cm
- Package 2 Length
- 98.000 cm
- Package 2 Weight
- 223.400 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1800 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486102800
- SAP 1200727704
- Code 83866709
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Miniature circuit-breaker, ACTI9 NG125N, 3P, 80 A, C curve, 25 kA (IEC 60947-2)
18640
Schneider Electric
Schneider Electric OptiLine 45 - installation trunking - 75X55 mm - PVC - polar white - 2000 mm ISM10100P
Schneider Electric
Schneider Electric ZB5AP2 Harmony XB5 Push-Button Head — Ø22 mm, Black, projecting, spring return, non-illuminated, plastic bezel, booted
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 275A, standard version, 100…250V wide band AC/DC coil LC1G1504KUEN
Schneider Electric

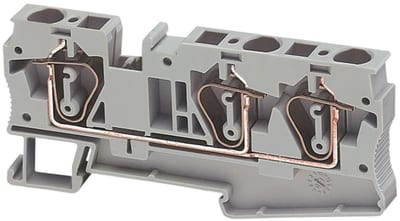

Terminal block, spring 6mm² grey 3P
