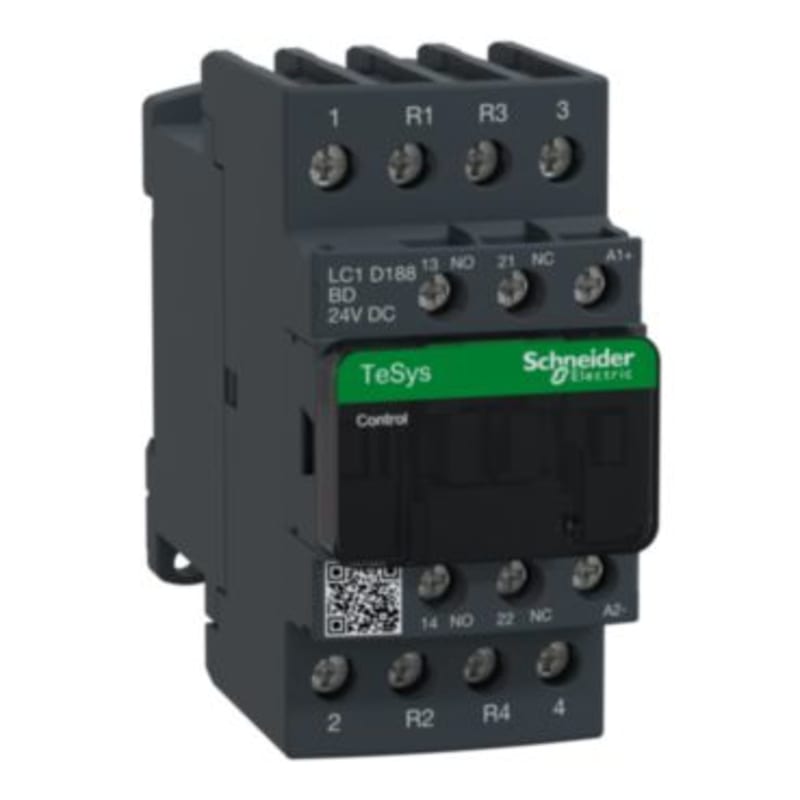

Schneider Electric Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 32A, 24VDC coil, screw clamp terminals LC1D188BD

Schneider Electric LC1D188BD - TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. 4-pole contactors with DC coil for motor operation and for non-inductive loads.

Manufacturer part number (MPN)

LC1D188BD EAN / GTIN: 3389110334128 Sales unit: pcs Package quantity: 16 pcs Voltage: 24 V DC Contact configuration: 2 NO + 2 NC Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load Utilisation category: AC-1 Poles description: 4P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit [Uc] control circuit voltage: 24 V DC Compatibility code: LC1D Pole contact composition: 2 NO + 2 NC Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for signalling circuit; 32 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 300 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 300 A at 440 V for power circ

HS Code

8536.49

• EAN 3389110334128
• SAP 1000253422
• Code 8219256
