Push-button flush white f/label (ZB5FA18)

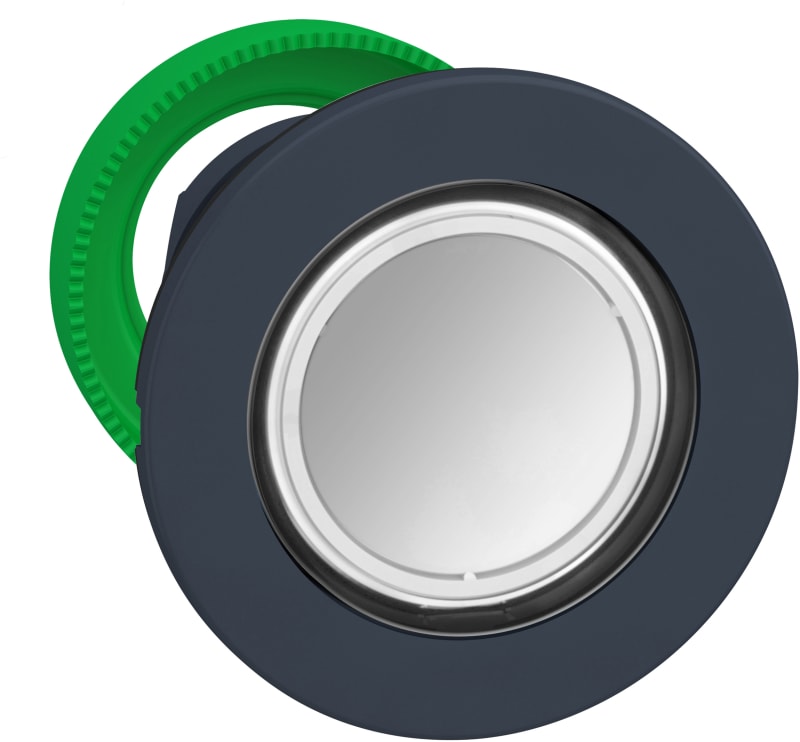

Schneider Electric ZB5FA18 Push-Button Head flush in plastic for LED with spring return and plan push surface for label in white colour.

Manufacturer part number (MPN)

ZB5FA18

EAN / GTIN

3606481339041

Sales unit

pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated push-button

Device short name

ZB5

Product compatibility

Universal LED

Bezel material

Dark grey plastic

Mounting diameter

30.5 mm

Sale per indivisible quantity

1

Head type

Built-in-flush

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

White flush, unmarked

Operator additional information

For insertion of legend

CAD overall width

37 mm

CAD overall height

37 mm

CAD overall depth

30 mm

Product weight

0.017 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

10000000 cycles

Cap/operator or lens colour

White

Marking

Unmarked

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; C4 for <6 contacts using single and double blocks in front mounting; C14 for <2 contacts using single blocks in front mounting; SF2 for <2 contacts using single blocks in front mounting; C3 for <6 contacts using single blocks in front mounting with integral LED

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 62262

Standards

CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; GB 14048.5; UL 508; IEC 60947-5-1; JIS C8201-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.300 cm

Package 1 Width

5.300 cm

Package 1 Length

9.200 cm

Package 1 Weight

28.000 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

31 mm

Colour button

White

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Grey

Degree of protection (IP), front side

IP66

Width opening

37 mm

Height opening

37 mm

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3606481339041
• SAP 1200094598
• Code 81957668
