Doorer SFN/SM 1800X1000
Pricing
Request a quote
We reply within 24 hours
Product Description

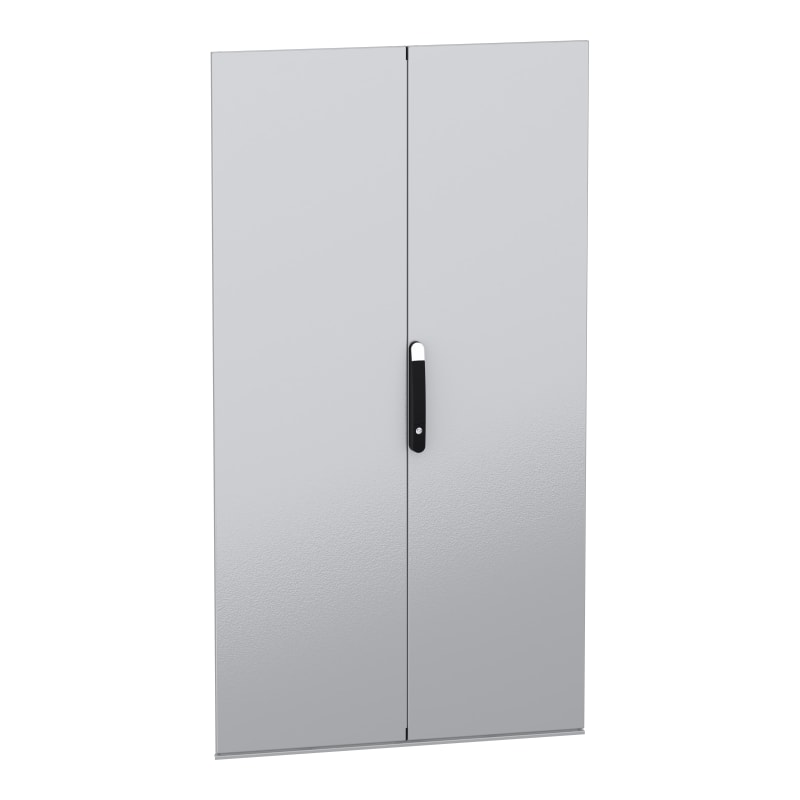

Schneider Electric NSYSFND18102D Doors, PanelSeT SFN/SM, complete with locking system, 1800x1000.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND18102D
- EAN / GTIN
- 3606486378069
- Sales unit
- pcs
- Dimensions
- 1800×1000 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 1800 mm W: 1000 mm
- Mounting location
- Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 2 door; 1 locking bar system 2 points; 2 reinforcement frame; 8 hinges
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- External plain
- Door opening side
- Reversible (120 °)
- Maximum load
- 60 kg/m²
- Height
- Nominal: 1766 mm
- Width
- Nominal: 969 mm
- Product weight
- 29.7 kg
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378069
- SAP 1200697901
- Code 83799721
Product Documentation
More from Schneider Electric
Schneider Electric
Expansion Enclosure PRISMASETG-IP55-7MOD B600
LVS08312
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 220V DC low consumption coil, snap-in terminals CAD50AML
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 72V DC standard coil, snap-in terminals CAD50ASD
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X400X600MM, IP55 NSYSFN18460
Schneider Electric
Lock insert, pin 3 (NSYSTDCSX)
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 32A, 480V AC 50/60Hz coil, snap-in terminals LC1D32AT7
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 32V AC standard coil, snap-in terminals CAD32AC7
Schneider Electric

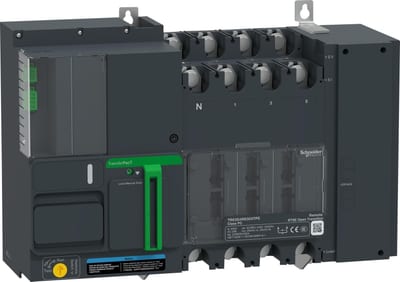

Schneider Electric TransferPacT Remote, 400A, 400V, 4P, Remote, frame 630A TR63D4R4004TPE
