Side Plates SFN 2200X500
Pricing
Request a quote
We reply within 24 hours
Product Description

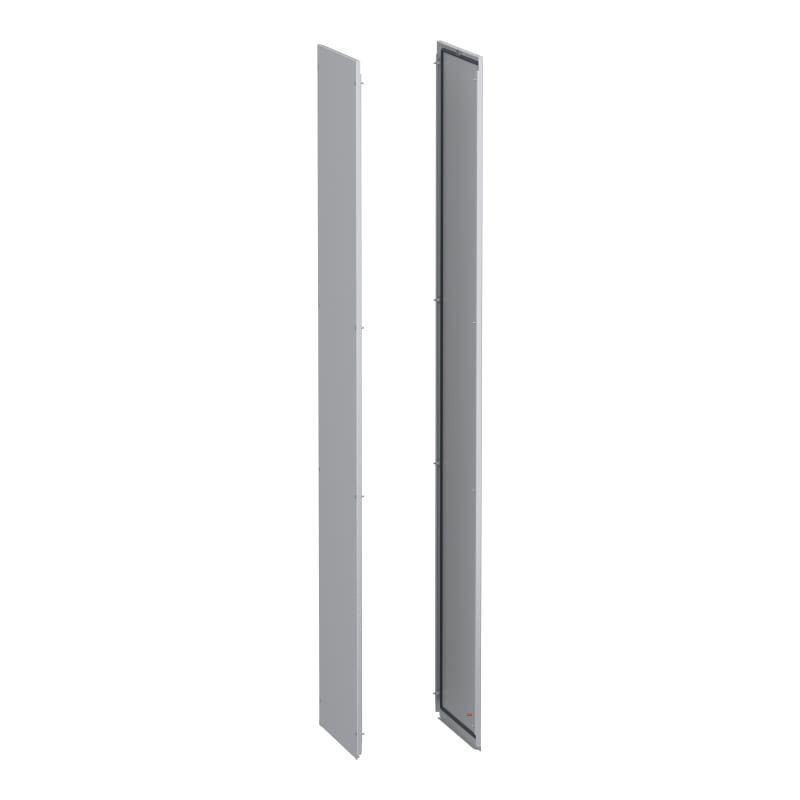

Schneider Electric NSY2SPN225 Side Plates, PanelSeT SFN, 2200x500.
Technical Specifications
- Manufacturer part number (MPN)
- NSY2SPN225
- EAN / GTIN
- 3606486104484
- Sales unit
- pcs
- Dimensions
- 2200×500 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Side panel
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2200 mm D: 500 mm
- Mounting location
- Sides of enclosure
- Range compatibility
- PanelSeT SFN
- Device composition
- fixing elements; 2 side panel
- Material
- Steel
- Product weight
- 139.5 kg
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - screw type captive - from the outside of enclosure location
- Height
- Nominal: 2200 mm
- Width
- Nominal: 500 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 500 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- With cable entry
- No
- With lock
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104484
- SAP 1200697987
- Code 83799715
Product Documentation
More from Schneider Electric
Schneider Electric

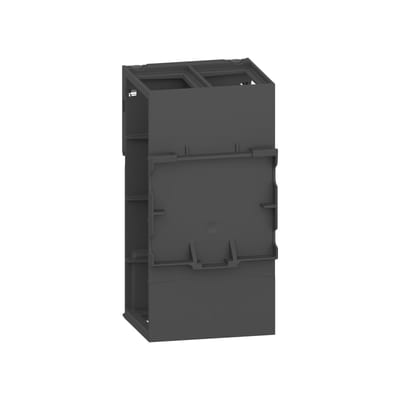

Schneider Electric Fixing kit, Altivar soft starter ATS130, direct mounting with GV4 VW3G921305
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W800MM, 1 row, set of 2 NSYSUCR4080
Schneider Electric

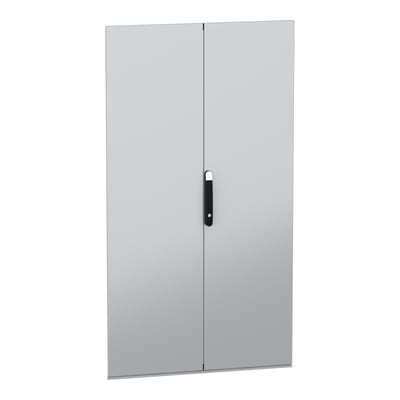

Doorer SFN/SM 1800X1000
NSYSFND18102D
Schneider Electric

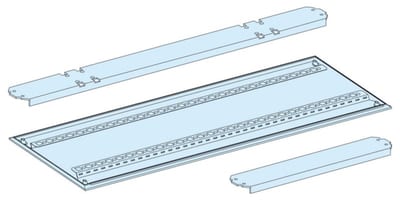

Expansion Enclosure PRISMASETG-IP55-7MOD B600
LVS08312
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 220V DC low consumption coil, snap-in terminals CAD50AML
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 72V DC standard coil, snap-in terminals CAD50ASD
Schneider Electric

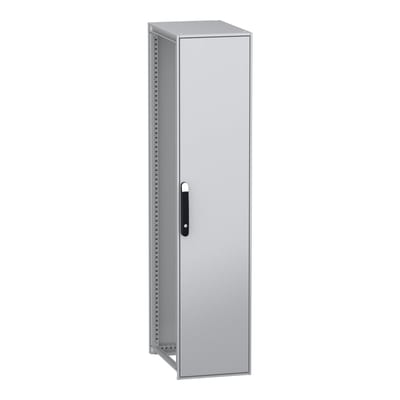

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X400X600MM, IP55 NSYSFN18460
Schneider Electric

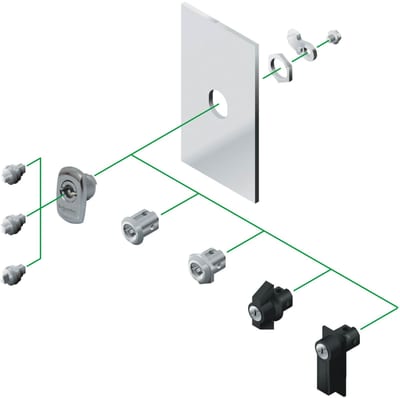

Lock insert, pin 3 (NSYSTDCSX)
