Schneider Electric

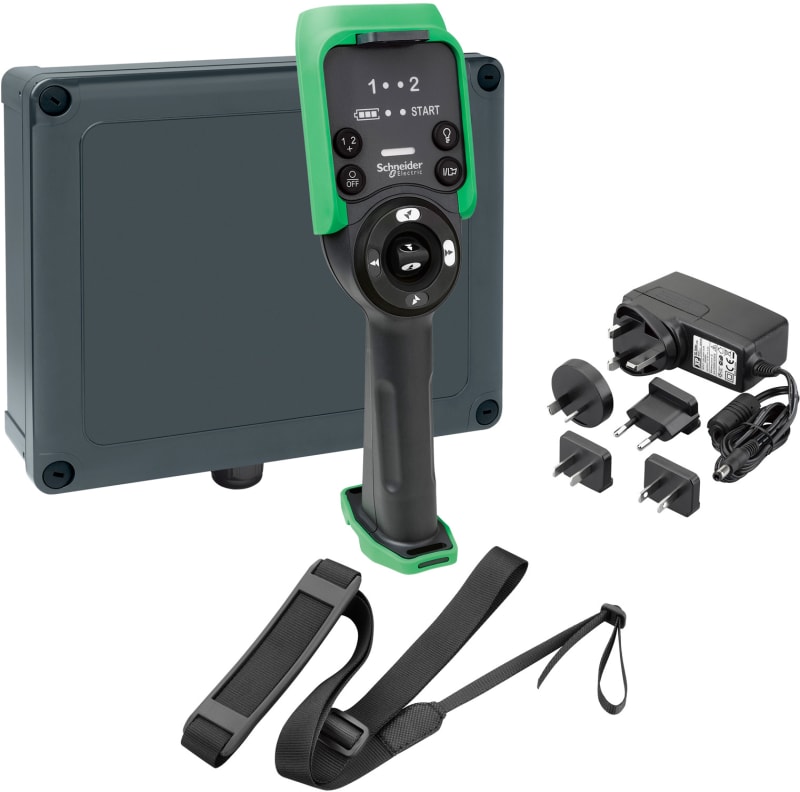

Schneider Electric SYSTEM-XARS8L12W + Charger + Shoulder belt + CABLE USB/RJ45 + Config Software XARSK8L12W
Part numberXARSK8L12WEAN / GTIN3606480662393HS code8504.40
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XARSK8L12W Wireless kit-Charger,Strap,USB,Software.
Technical Specifications
- Manufacturer part number (MPN)
- XARSK8L12W
- EAN / GTIN
- 3606480662393
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range of product
- Harmony eXLhoist
- Product or component type
- Control station
- Device short name
- XARS
- Control station type
- Wireless
- Product specific application
- Material handling; Hoisting applications
- Number of channels
- 50
- Control station application
- Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061; Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1; Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061; Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1; Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061; Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1; Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061; Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1
- Kit composition
- Cable; Remote control; Shoulder belt; Base station; Configuration software
- Operating distance
- 100 m in free air
- cable entry
- Cable gland
- Communication network type
- Wireless: bluetooth low energy
- Transmission frequency
- 2.4 GHz
- Radio agreement
- SRRC; ICASA; FCC; ARIB; RSS; ANATEL
- Relative humidity
- 0…95 % at -20…45 °C storage
- Electromagnetic compatibility
- Resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2; Resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2; Resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
- Standards
- IEC 60204-1 safety; ISO 13849-1 safety; IEC 62061 safety; IEC 61508 safety; ISO 13850 safety; IEC 60204-32 hoisting applications; ETSI EN 301 489-1 radio; ETSI EN 301 489-3 radio; ETSI EN 301 489-17 radio; ETSI EN 300 440-2 radio; ETSI EN 300 328 radio; FCC part 15 radio; RSS GEN issue 3 radio; RSS 210 issue 8 radio; ARIB STD-T81 radio
- Product certifications
- CE; UL; CSA; C-Tick; JIS; KC; EAC
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606480662393
- SAP 1000648331
- Code 8334671
Product Documentation
Document preview: Schneider Electric XARSK8L12W — OEM Product Page
More from Schneider Electric
Schneider Electric
Safety relay, emergency stop/gate 24V (XPSBAT12A1AC)
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 2A 3P - with EverLink GV4L02N
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic multifunction circuit breaker - 2A 3P -Everlink GV4PEM02N
Schneider Electric
Wallutt. m/br 4,5MOD 63-3P+J
82782
Schneider Electric
Gland Plate 10X4 (NSYEC104)
Schneider Electric

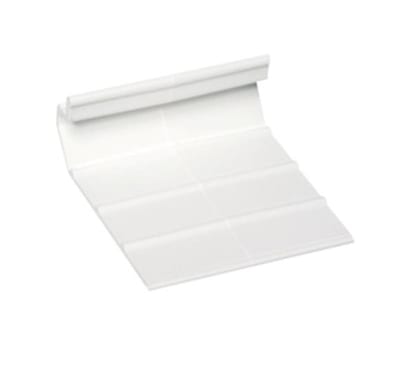

Schneider Electric 5590341 Joint Cover for K 161-3 TEK Trunking 72 mm
Schneider Electric
BETJ.DEL (XACA9415)
Schneider Electric

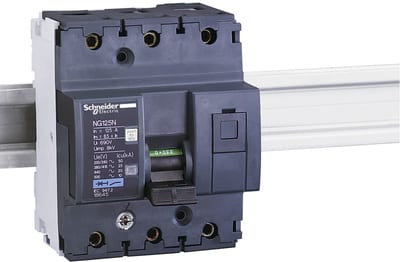

NG125N/C 20-3 Modular Power Switch
