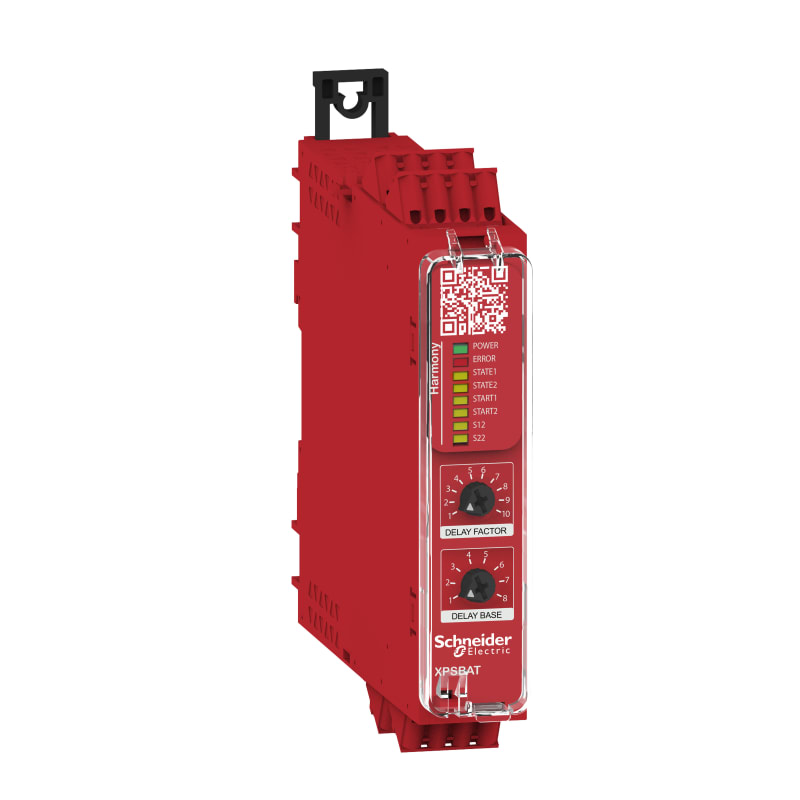

Safety relay, emergency stop/gate 24V (XPSBAT12A1AC)

Schneider Electric XPSBAT12A1AC Tidsforsinket output, Harmony XPS, for Estop, vakt, OSSD, 24 V AC/DC, spring.

Manufacturer part number (MPN)

XPSBAT12A1AC EAN / GTIN: 3606482034037 Sales unit: pcs Package quantity: 16 pcs Voltage: 24 V Range of product: Harmony Safety Automation Product or component type: Safety module Safety module name: XPSBAT Safety module application: For emergency stop and protective guard applications; For OSSD monitoring Function of module: Emergency stop button with 2 NC contacts; Guard monitoring with 1 or 2 limit switches; Light curtain monitoring; RFID switch; Monitoring of electro-sensitive protection equipment (ESPE) Safety level: Can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1; Can reach SILCL 3 for normally open relay contact conforming to IEC 62061; Can reach SIL 3 for normally open relay contact conforming to IEC 61508; Can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1; Can reach SILCL 1 for normally closed relay contact conforming to IEC 62061; Can reach SIL 1 for normally closed relay contact conforming to IEC 61508 Safety reliability data: MTTFd > 30 years conforming to ISO 13849-1; Dcavg >= 99 % conforming to ISO 13849-1; PFHd = 0.98E-09 conforming to ISO 13849-1 for SS0; PFHd = 0.96E-09 conforming to ISO 13849-1 for SS1; HFT = 1 conforming to IEC 62061; PFHd = 0.98E-09 conforming to IEC 62061 for SS0; PFHd = 0.96E-09 conforming to IEC 62061 for SS1; SFF > 99% conforming to IEC 62061; HFT = 1 conforming to IEC 61508-1; PFHd = 0.98E-09 conforming to IEC 61508-1 for SS0; PFHd = 0.96E-09 conforming to IEC 61508-1 for SS1; SFF > 99% conforming to IEC 61508-1; Type = B conforming to IEC 61508-1 Electrical circuit type: NC pair; OSSD pair Connections - terminals: Removable spring terminal block, 0.2...2.5 mm² solid or flexible; Removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor; Removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor; Removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel; Removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel [Us] rated supply voltage: 24 V AC - 15...10 %; 24 V DC - 20...20 % Synchronisation time between inputs: 0.5 s; 2 s Type of start: Automatic/manual/monitored Power consumption in W: 2 W 24 V DC Power consumption in VA: 5 VA 24 V AC 50/60 Hz Input protection type: Internal, electronic safety outputs: 2 NO immediate; 1 NO configurable safety inputs: 2 positive safety input 24 V DC 5 mA maximum wire resistance: 500 Ohm Time delay range: 0...900 s off delay Input compatibility: Normally closed circuit conforming to ISO 14119; Mechanical contact conforming to ISO 14119; OSSD pair conforming to IEC 61496-1-2; Normally closed circuit conforming to ISO 13850; 3-wire proximity sensors PNP [Ie] rated operational current: 5 A AC-1 for normally open relay contact; 3 A AC-15 for normally open relay contact; 5 A DC-1 for normally open relay contact; 3 A DC-13 for normally open relay contact control outputs: 3 on/off configurable pulsed output Input/output type: Semiconductor output 24 V DC, 20 mA Z1, not safety-related [Ith] conventional free air thermal current: 12 A Associated fuse rating: 6 A gG for NO relay output circuit conforming to IEC 60947-1 minimum output current: 20 mA for relay output minimum output voltage: 24 V for relay output Maximum response time on input open: 20 ms [Ui] rated insulation voltage: 250 V (pollution degree 2) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 4 kV overvoltage category II conforming to IEC 60947-1 Local signalling: LED green with power marking for power ON; LED red with error marking for error; LED yellow with state 1 marking for safety output instantaneous; LED yellow with state 2 marking for safety output delayed; LED yellow with start 1 marking for start; LED yellow with start 2 marking for start; LED yellow with S12 marking for safety input S12; LED yellow with S22 marking for safety input S22 Mounting support: 35 mm symmetrical DIN rail Depth: 120 mm Height: 100 mm Width: 22.5 mm Product weight: 0.350 kg Standards: IEC 60947-5-1; IEC 61508-1 functional safety standard; IEC 61508-2 functional safety standard; IEC 61508-3 functional safety standard; IEC 61508-4 functional safety standard; IEC 61508-5 functional safety standard; IEC 61508-6 functional safety standard; IEC 61508-7 functional safety standard; ISO 13849-1 functional safety standard; IEC 62061 functional safety standard Product certifications: TÜV; cULus IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP40 (housing) conforming to IEC 60529; IP54 (mounting area) conforming to IEC 60529 Ambient air temperature for operation: -25…55 °C Ambient air temperature for storage: -25…85 °C Relative humidity: 5…95 % non-condensing Number of Units in Package 1: 1 Number of Units in Package 2: 16 Country of origin: ID Warranty (in months): 18 Operating voltage AC 50 Hz: 24 V Operating voltage AC 60 Hz: 24 V Operating voltage DC: 24 V Power consumption: 3 W Supply voltage AC 50 Hz: 24 V Supply voltage AC 60 Hz: 24 V Supply voltage DC: 24 V Rated switch current: 0.02 A Control voltage 1: 24 V Voltage type (operating voltage): AC/DC Type of control voltage 1: AC/DC Type of control voltage 2: AC/DC Model: Basic device Suitable for monitoring of position switches: Yes Suitable for monitoring of emergency-stop circuits: Yes Suitable for monitoring of valves: No Suitable for monitoring of tactile sensors: No Suitable for monitoring of magnetic switches: Yes Suitable for monitoring of proximity switches: No Type of electric connection: Spring clamp connection Suitable for rail mounting: Yes Rated control supply voltage AC 50 Hz: 24 V Rated control supply voltage AC 60 Hz: 24 V Rated control supply voltage DC: 24 V Voltage type for actuating: AC/DC With detachable clamps: Yes Evaluation inputs: 2-channel With start input: Yes With muting function: No With feedback circuit: Yes Release-delay: 0–900 s Number of outputs, safety related, undelayed, with contact: 2 Number of outputs, safety related, delayed, with contact: 1 Type of safety according to IEC 61496-1: 4 Stop category according to IEC 60204: 0 + 1 Performance level according to EN ISO 13849-1: Level e SIL according to IEC 61508: 3 With approval for BG BIA: No With approval according to UL: No

HS Code

8536.41

• EAN 3606482034037
• SAP 1200722511
• Code 83866012
