BETJ.DEL (XACA9415)

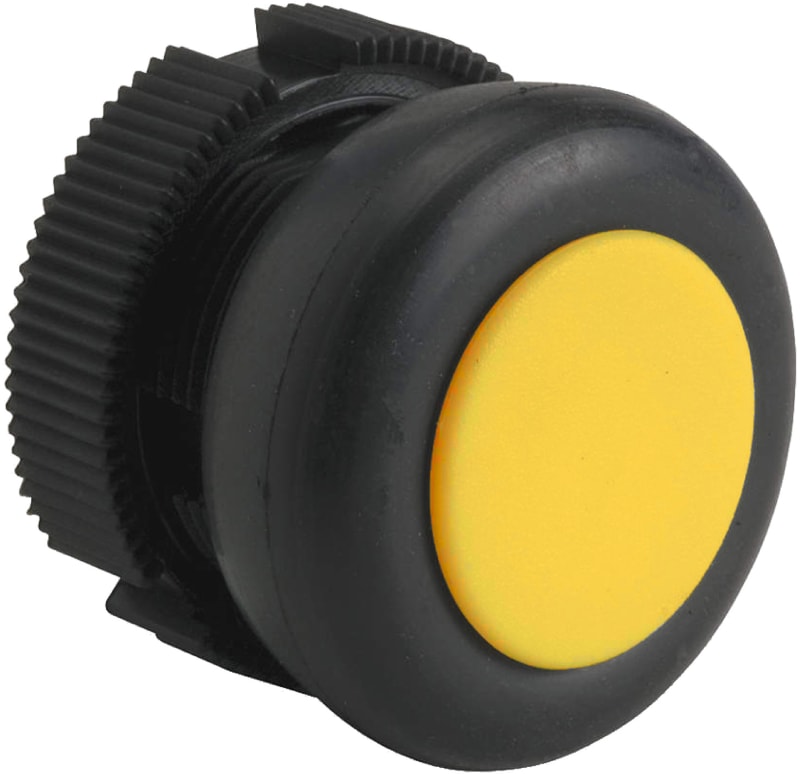

Schneider Electric XACA9415 Push-button For XACA With Jacket Yellow.

Manufacturer part number (MPN)

XACA9415

EAN / GTIN

3389110645170

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XAC

Product or component type

Head for push-button

Component name

XACA

Marking

Unmarked

Operator additional information

Booted

Cap/operator or lens colour

Yellow

Product compatibility

XACA..

Mounting location

Front of enclosure

Sale per indivisible quantity

10

Standards

IEC 60947-5-1; UL 508; IEC 60204-32; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Product weight

0.01 kg

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

250

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Yellow

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP65/IP67

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389110645170
• SAP 1000044816
• Code 8826046
