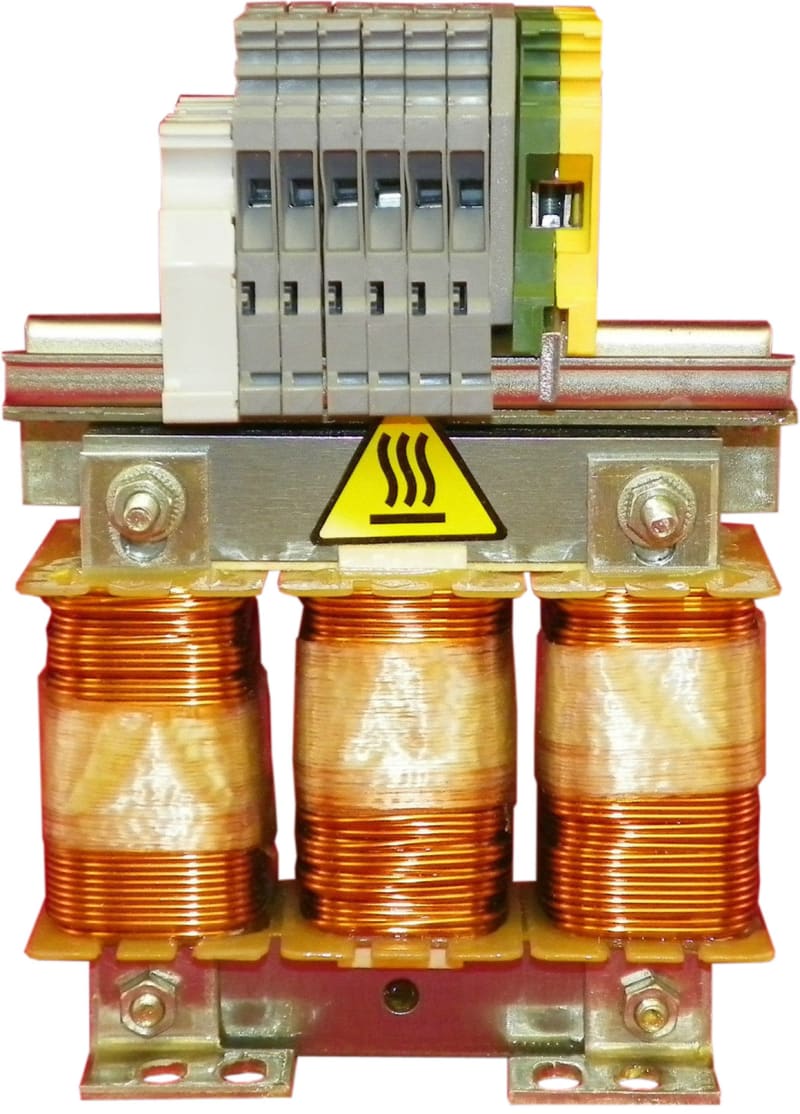

AC Nettdrossel 10MH 4A

Schneider Electric VW3A4551 AC nettdrossel 10MH 4A.

Manufacturer part number (MPN)

VW3A4551 EAN / GTIN: 3389118066014 Sales unit: pcs Package quantity: 20 pcs Rated current: 4 A Range of product: Altivar Product or component type: Line/motor choke Product compatibility: ATV12H018F1 - motor choke - 1 per drive; ATV12H018M2 - motor choke - 1 per drive; ATV12H018M3 - motor choke - 1 per drive; ATV12H037F1 - motor choke - 1 per drive; ATV12H037M2 - motor choke - 1 per drive; ATV12H037M3 - motor choke - 1 per drive; ATV12H055M2 - motor choke - 1 per drive; ATV12P037F1 - motor choke - 1 per drive; ATV12P037M2 - motor choke - 1 per drive; ATV12P037M3 - motor choke - 1 per drive; ATV12P055M2 - motor choke - 1 per drive; ATV312H018M3 - line choke - 1 per drive; ATV312H037M3 - line choke - 1 per drive; ATV312H037N4 - line choke - 1 per drive; ATV312H055M3 - line choke - 1 per drive; ATV312H055N4 - line choke - 1 per drive; ATV312H075M3 - line choke - 1 per drive; ATV312H075N4 - line choke - 1 per drive; ATV312H075S6 - line choke - 1 per drive; ATV312HU11N4 - line choke - 1 per drive; ATV312HU15N4 - line choke - 1 per drive; ATV312HU15S6 - line choke - 1 per drive; ATV32H037N4 - line choke - 1 per drive; ATV32H055N4 - line choke - 1 per drive; ATV32H075N4 - line choke - 1 per drive; ATV32HU11N4 - line choke - 1 per drive; ATV32HU15N4 - line choke - 1 per drive; ATV61H075M3 - line choke - 1 per drive; ATV61H075N4 - line choke - 1 per drive; ATV61HU15N4 - line choke - 1 per drive; ATV61HU30Y - line choke - 1 per drive; ATV61W075N4 - line choke - 1 per drive; ATV61W075N4C - line choke - 1 per drive; ATV61WU15N4 - line choke - 1 per drive; ATV61WU15N4C - line choke - 1 per drive; ATV71H037M3 - line choke - 1 per drive; ATV71H075M3 - line choke - 1 per drive; ATV71H075N4 - line choke - 1 per drive; ATV71HU15N4 - line choke - 1 per drive; ATV71HU22Y - line choke - 1 per drive; ATV71HU30Y - line choke - 1 per drive; ATV71P075N4Z - line choke - 1 per drive; ATV71PU15N4Z - line choke - 1 per drive; ATV71W075N4 - line choke - 1 per drive; ATV71WU15N4 - line choke - 1 per drive; ATV61HU22S6X - line choke - 1 per drive; ATV71HU15S6X - line choke - 1 per drive; ATV71HU22S6X - line choke - 1 per drive; ATV31C037N4 - line choke - 1 per drive; ATV31C055N4 - line choke - 1 per drive; ATV31C075N4 - line choke - 1 per drive; ATV31CU11N4 - line choke - 1 per drive; ATV31CU15N4 - line choke - 1 per drive; Variable speed drive ATV310 motor: 0.37 kW - line choke - 1 per drive; Variable speed drive ATV310 motor: 0.75 kW - line choke - 1 per drive; Variable speed drive ATV340 motor: 0.75 kW 380...480 V - line choke - 1 per drive; Variable speed drive ATV340 motor: 1.5 kW 380...480 V - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.37 kW 380...500 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.55 kW 380...500 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.75 kW 380...500 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 1.1 kW 380...500 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 1.5 kW 380...500 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.18 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.37 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.55 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.75 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.75 kW 525...600 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 1.5 kW 525...600 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 2.2 kW 525...600 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 3 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 3 hp - 1 per drive; Variable speed drive ATV310L motor: 0.75 kW; Variable speed drive ATV310L motor: 1.5 kW; Variable speed drive ATV310L motor: 2.2 kW; Variable speed drive ATV310L motor: 3.0 kW; Variable speed drive ATV310L motor: 4.0 kW; Variable speed drive ATV310L motor: 5.5 kW number of phases: Three phase Range compatibility: Altivar 61; Altivar 312; Altivar Process ATV900; Altivar 32; Altivar 312 Solar; Altivar Process ATV600; Altivar 31C; Lexium 62; Easy Altivar 310; Altivar Machine ATV340; Altivar Machine ATV320; Altivar 71; Altivar 12; Easy Altivar 310L Device application: Reduction of current harmonics Value of inductance: 10 mH [In] rated current: 4 A Thermal losses: 45 W Electrical connection: Terminal 2.5 mm² / 12 AWG, 0.4…0.6 N.m power supply frequency: 50...60 Hz Max current: 1.65 x nominal current (duration = 60 s) Maximum voltage drop at rated load: 5 % Electrical insulation class: Class F minimum clearance distance: 5.5 mm IEC 60664 Leakage distance: 11.5 mm conforming to IEC 60664 Product weight: 1.5 kg Width: 100 mm Height: 135 mm Depth: 60 mm Standards: VDE 0160 level 1; IEC 60076 (with HD398); EN 50178 IP degree of protection: Choke: IP00; Terminals: IP20 Environmental characteristic: 3B1 conforming to IEC 721-3-3; 3C2 conforming to IEC 721-3-3; 3S1 conforming to IEC 721-3-3 Pollution degree: 2 conforming to EN 50178 Vibration resistance: 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 0…95 % Ambient air temperature for operation: 45…55 °C (with current derating of 2 % per °C); 0…45 °C (without current derating) Ambient air temperature for storage: -25…70 °C Operating altitude: <= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m Number of Units in Package 1: 1 Number of Units in Package 2: 24 Country of origin: CZ Warranty (in months): 18 Suitable as interference suppression reactance coil: No Suitable as net reactance coil: Yes Suitable as commutation reactance coil: No Suitable as ripple filter choke: No Suitable as output reactance coil: Yes Number of poles, primary side: 3 Rated operating frequency: 50–60 Hz Max. rated operation voltage Ue: 690 V Rated current AC: 4 A Rated inductance: 10 mH Degree of protection (IP): IP00 Relative short circuit voltage: 0 %
