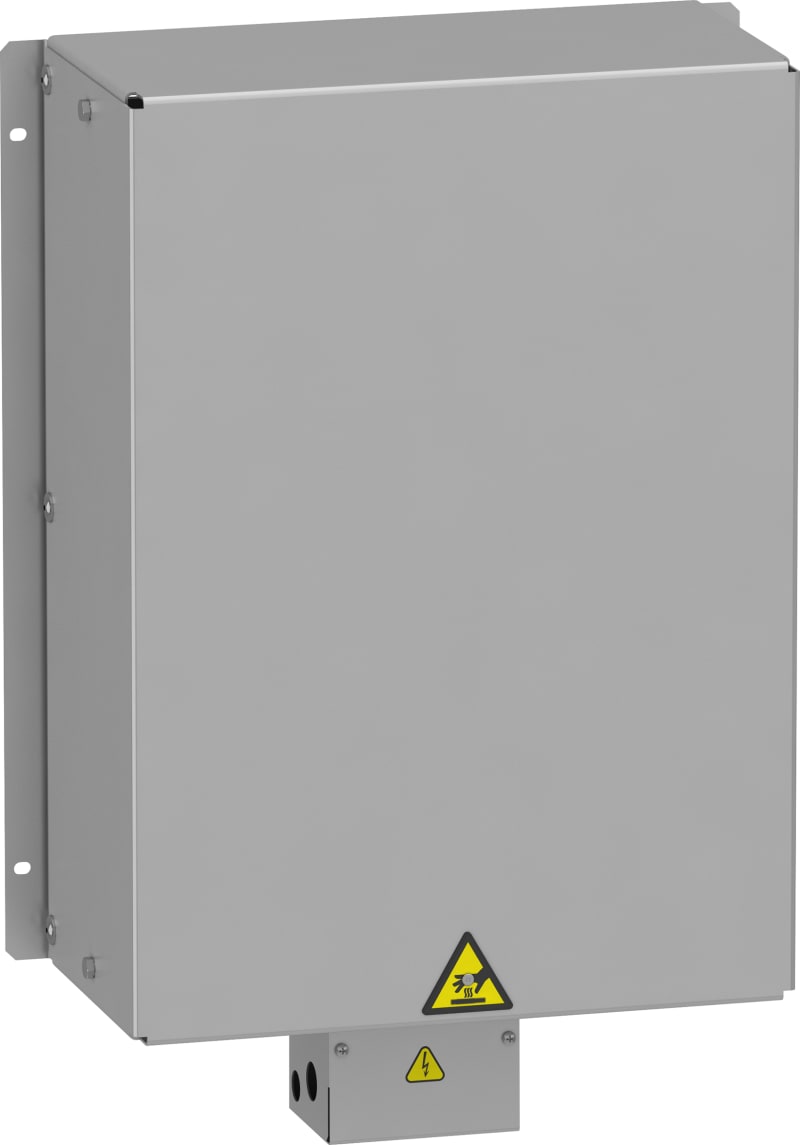

Schneider Electric braking resistor - 60 ohms - 3.4 kW - IP20 VW3A7751
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7751 Braking resistor 60 ohms 2,9kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7751
- EAN / GTIN
- 3606480802430
- Sales unit
- pcs
- Power
- 2.9 kW
- Resistance
- 60 Ω
- Range compatibility
- Altivar Machine ATV340; Altivar Process ATV900
- Product or component type
- Braking resistor
- Ohmic value
- 60 Ohm
- [Ue] rated operational voltage
- 24 V DC; 250 V AC
- Product compatibility
- Variable speed drive ATV930 wall mount 5.5 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 7.5 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 2.2 kW 200...240 V severe cycle; Variable speed drive ATV950 wall mount 5.5 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 7.5 kW 380...480 V severe cycle; Variable speed drive ATV340 4 kW 380...480 V severe cycle; Variable speed drive ATV340 5.5 kW 380...480 V severe cycle; Variable speed drive ATV930 7.5 kW 500...690 V severe cycle; Variable speed drive ATV930 11 kW 500...690 V severe cycle; Variable speed drive ATV930 10 hp 600 V severe cycle; Variable speed drive ATV930 15 hp 600 V severe cycle
- Duty cycle
- Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
- Average power available
- 2.9 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 10 mm² / 8 AWG for drive; terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 390 mm
- Height
- 570 mm
- Depth
- 180 mm
- Product weight
- 8.3 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802430
- SAP 1200020049
- Code 81392432
