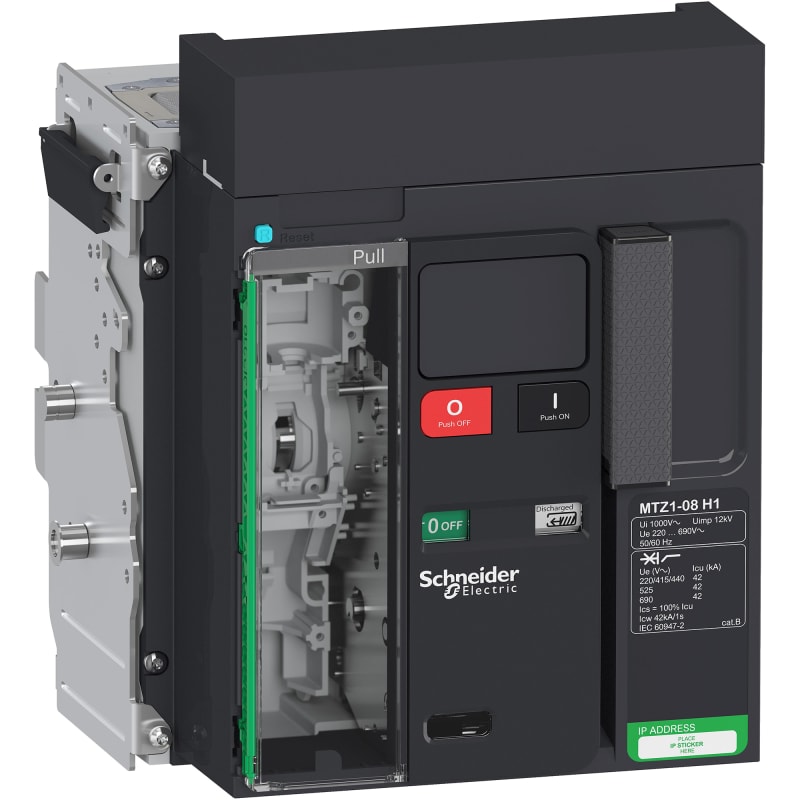

Schneider Electric Circuit breaker Masterpact MTZ1 08H1 - 800 A - 3P drawout - w/o Micrologic LV847210

Schneider Electric LV847210 Circuit breaker Masterpact MTZ1 08H1 800A 3p withdrawable without protection, pocket and connection

Manufacturer part number (MPN)

LV847210

EAN / GTIN

3606480815225

HS code

8536.90

Sales unit

pcs

Number of poles

3P

Range

MasterPacT

Product name

MasterPact MTZ1

Device short name

MTZ1 08 H1

Product or component type

Circuit breaker

Device application

Power distribution protection

Poles description

3P

Control type

Without control unit

Product compatibility

control unit MicroLogic 2.0 X; control unit MicroLogic 5.0 X; control unit MicroLogic 6.0 X; control unit MicroLogic 7.0 X; control unit MicroLogic 2.0 Xi; control unit MicroLogic 5.0 Xi; control unit MicroLogic 6.0 Xi; control unit MicroLogic 7.0 Xi

[In] rated current

800 A at 40 °C

Breaking capacity code

H1 42 kA 415 V AC

[Ue] rated operational voltage

690 V AC 50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Selectivity category

Category B

mounting mode

Drawout

Breaking capacity

42 kA at 220/415 V AC 50/60 Hz; 42 kA at 440 V AC 50/60 Hz; 42 kA at 500/525 V AC 50/60 Hz; 42 kA at 660/690 V AC 50/60 Hz

[Ics] rated service breaking capacity

42 kA at 220/415 V AC 50/60 Hz; 42 kA at 440 V AC 50/60 Hz; 42 kA at 500/525 V AC 50/60 Hz; 42 kA at 660/690 V AC 50/60 Hz

[Icw] rated short-time withstand current

42 kA 0.5 s; 42 kA 1 s; 24 kA 3 s

[Icm] rated short-circuit making capacity

88 kA 220/415 V AC at 50/60 Hz; 88 kA 440 V AC at 50/60 Hz; 88 kA 500/525 V AC at 50/60 Hz; 88 kA 660/690 V AC at 50/60 Hz

Sensor rating

400 A; 630 A; 800 A

[Ui] rated insulation voltage

1000 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

12 kV

Power dissipation in W

90 W

Maximum breaking time

25 ms

Maximum closing response time

50 ms

Mounting support

Rails; Base plate

Upside connection

Front; Rear

Downside connection

Front; Rear

Connection pitch

70 mm

Mechanical durability

12500 cycles with periodic preventive maintenance

Electrical durability

3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-2; 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; AC-23A: 3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3

Height

Drawout circuit breaker with chassis: 322 mm; Drawout circuit breaker without chassis: 259.5 mm

Width

Drawout circuit breaker with chassis: 288 mm; Drawout circuit breaker without chassis: 236.5 mm

Depth

Drawout circuit breaker with chassis: 291 mm; Drawout circuit breaker without chassis: 207.5 mm

Product weight

30 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-2; EN/IEC 60947-2 Annex H; IEC 61557-12

Product certifications

CE; IECEE CB Scheme

IP degree of protection

IP30 conforming to EN 60529

Pollution degree

3 conforming to IEC 60947-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

0...2000 m without derating; 2000...5000 m with derating

Number of Units in Package 1

1

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3606480815225
• SAP 1200498293
• Code 82621878
