Micrologic 5.0 A for Withdrawable Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

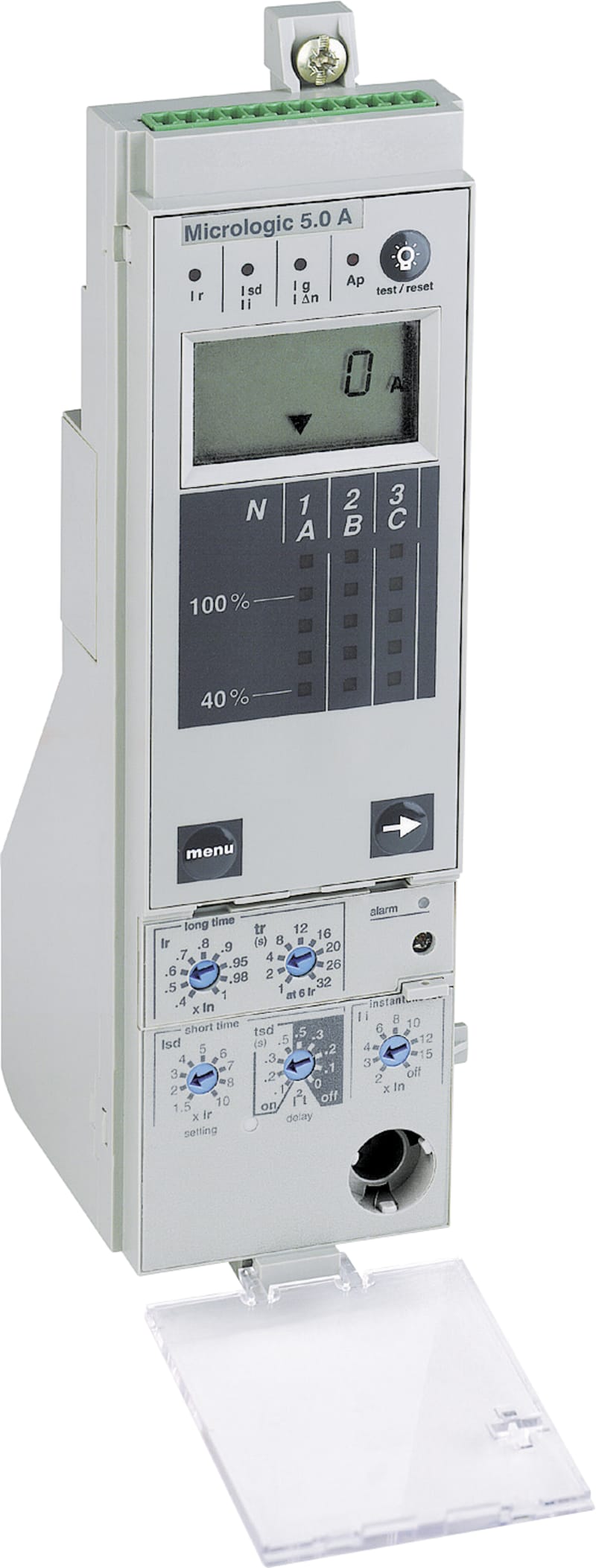

Schneider Electric 48360 Micrologic 5.0 A For Withdrawable Switch.
Technical Specifications
- Manufacturer part number (MPN)
- 48360
- EAN / GTIN
- 3303430483601
- HS code
- 8536.90
- Sales unit
- pcs
- Trip unit
- Micrologic 5.0
- Width
- 53.6 mm
- Height
- 199.5 mm
- Depth
- 67.5 mm
- Rated permanent current Iu
- 6300 A
- Number of poles
- 4
- Short-circuit release function
- Delayed
- Overload release current setting
- 560–6300 A
- Voltage type (supply voltage)
- DC
- External power supply required
- Yes
- Rated control supply voltage DC
- 24 V
- With ground fault protection function
- No
- Rated switch current
- 6300 A
- Supply voltage DC
- 24 V
- End value adjustment range undelayed short-circuit release
- 94500 A
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Type of motor protection
- Electronic release
- Voltage type for actuating
- Self powered
- Current setting undelayed short-circuit release
- 12600–94500 A
- Current setting delayed short-circuit release
- 840–63000 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303430483601
- SAP 1000419894
- Code 834935
Product Documentation
More from Schneider Electric
Schneider Electric
Memory card module MCM 35
FFS06432550
Schneider Electric
Schneider Electric Actassi VDIM189112 Vertical Cable Management Ring 1U for 800 mm Rack
Schneider Electric
Illuminated Push Button flush blue (ZB5FW363)
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 250A, advanced version, 24…48V wide band AC/DC coil LC1G1154BEEA
Schneider Electric
Schneider Electric A9F95220 ACTI9 IC60L Miniature Circuit Breaker 2P 20 A, Curve K
Schneider Electric
Schneider Electric variable speed drive - 4KW- 400V - 3 phases - ATV340 Ethernet ATV340U40N4E
Schneider Electric
Schneider Electric NSYPTZ42P PanelSeT PLA Adapter Plate 420 mm Depth 2-Door
Schneider Electric
Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 9A, aux. 1NO, 48V AC coil LC1K0910E7
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 48360?
- 48360 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 48360.
- What is the HS code for 48360?
- The customs tariff (HS) code for 48360 is 8536.90.
- Who manufactures 48360?
- 48360 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 48360?
- Yes — the 48360 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 48360?
- The minimum order quantity is 1.
- Is 48360 available?
- Yes — 48360 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
