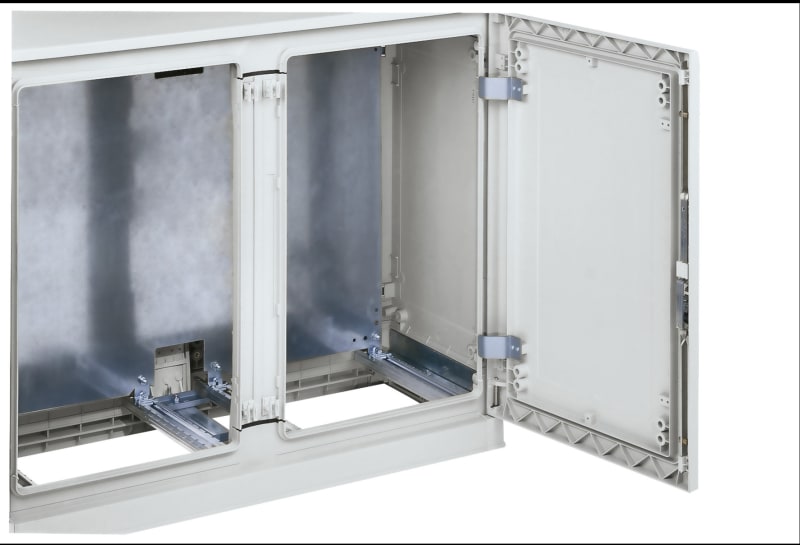

Schneider Electric NSYPTZ42P PanelSeT PLA Adapter Plate 420 mm Depth 2-Door
Pricing
Request a quote
We reply within 24 hours
Product Description
The Schneider Electric NSYPTZ42P is a galvanised-steel adapter plate assembly for the bottom of two-door PanelSeT PLA enclosures at 420 mm building depth. It comprises two plates, two intermediate supports and fixing elements, secured by M8 screws and inserts at the base of the enclosure. Typical applications include multi-purpose sealing and cable-entry preparation on floor-standing panel-board installations.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPTZ42P
- EAN / GTIN
- 3606480194429
- Sales unit
- pcs
- category
- Mounting accessory
- Product or component type
- Adapter plate
- Range compatibility
- PanelSeT PLA
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - D: 420 mm
- Mounting location
- 2-door enclosure bottom
- Device composition
- 2 plate; 2 intermediate support; fixing elements
- Material
- Galvanised steel
- Fixing mode
- Screw and insert - screw type M8 - bottom of enclosure location
- Height
- 20 mm
- Width
- 400 mm
- Depth
- Real : 420 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 40.000 cm
- Package 1 Length
- 33.000 cm
- Package 1 Weight
- 150.000 g
- Country of origin
- ES
- Warranty (in months)
- 18
- Suitable for enclosure building depth
- 420 mm
- Colour
- Grey
Standards & Compliance
- HS Code
- 7326.19
Cross References
- EAN 3606480194429
- SAP 1000318069
- Code 81019331
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 9A, aux. 1NO, 48V AC coil LC1K0910E7
Schneider Electric
VIGI NG125 3-125 300-3000 MA
19047
Schneider Electric
NG125L/C 25-1 Modular Power Switch
18780
Schneider Electric
Schneider Electric Airing grille cut-out diameter 45.5mm IP32 NSYCAG45LP
Schneider Electric
Schneider Electric ZB5AW34 Harmony XB5 Push-Button Head — Ø22 mm, Red, flush, spring return, illuminated (BA9S), plastic bezel
Schneider Electric
Schneider Electric LV848478SP MasterPact MTZ2/MTZ3 Connected-Position Low-Level Auxiliary Contact Spare
Schneider Electric

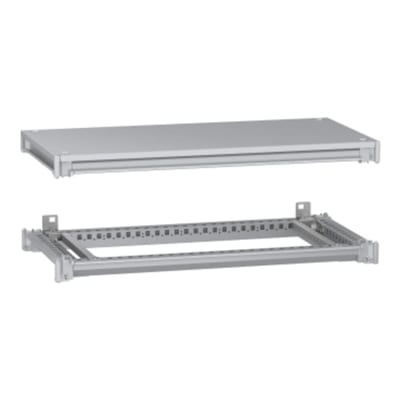

Upper+lower frame SFN 800X400
NSYSFNC84
Schneider Electric

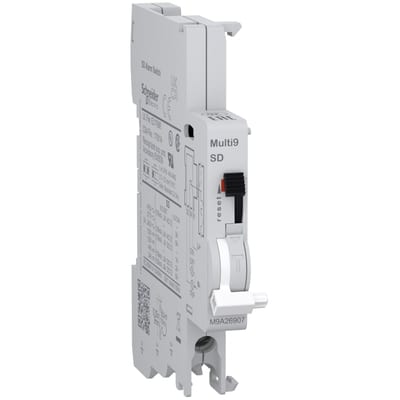

Schneider Electric Auxiliary contact, MULTI9 M9A, SD, 1 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection M9A26907
