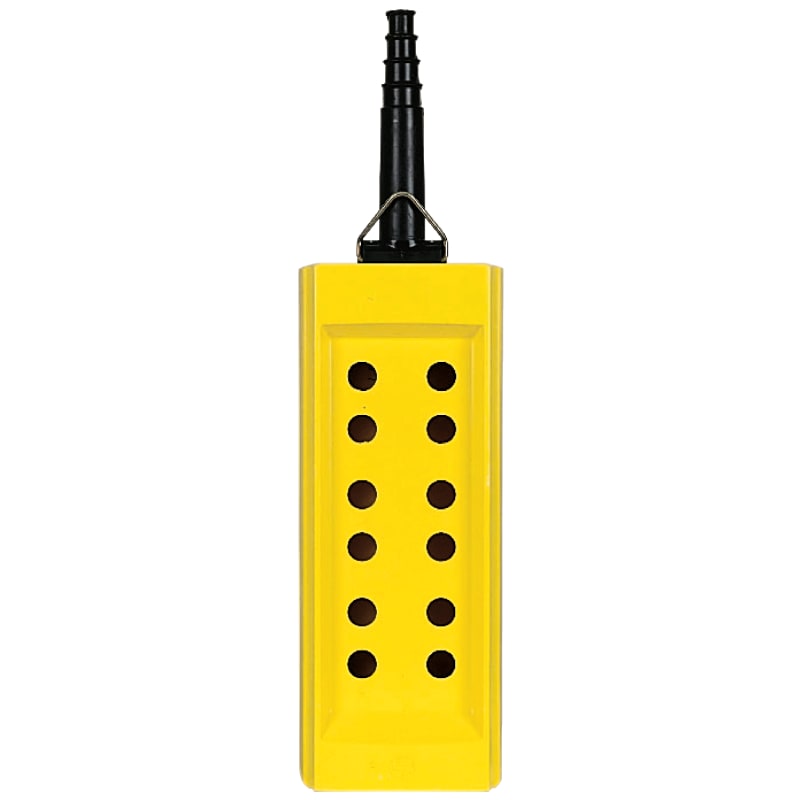

Schneider Electric empty pendant control station XAC-B - 12 openings in 2 columns XACB125
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XACB125 Suspended enclosure empty 2X6 holes+bunnmo.
Technical Specifications
- Manufacturer part number (MPN)
- XACB125
- EAN / GTIN
- 3389110665635
- Sales unit
- pcs
- Range of product
- Harmony XAC
- Product or component type
- Pendant control station
- Device short name
- XACB
- Control station type
- Double insulated
- Enclosure material
- Glass reinforced polyester
- Electrical circuit type
- Control circuit; Power circuit
- enclosure type
- Empty enclosure
- Number of cut-out
- 12 cut-outs in 2 rows
- Control station colour
- Yellow
- Cable entry
- Rubber sleeve with stepped entry 22…35 mm
- Guard rail
- Without
- Vertical operator cut-out centre
- 40 mm
- Standards
- IEC 60947-5-1; CSA C22.2 No 14
- Product certifications
- CSA type 4
- Protective treatment
- TH
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Mechanical durability
- 1000000 cycles
- Product weight
- 1.66 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.500 cm
- Package 1 Width
- 66.000 cm
- Package 1 Length
- 16.000 cm
- Package 1 Weight
- 1.810 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 15
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 40.150 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Suitable for control current circuit
- Yes
- Suitable for main current circuit
- Yes
- Number of command positions
- 12
- Colour housing cover
- Yellow
- Housing material
- Plastic
- Degree of protection (IP)
- IP65
- Inner diameter opening
- 35 mm
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110665635
- SAP 1000254732
- Code 8117516
