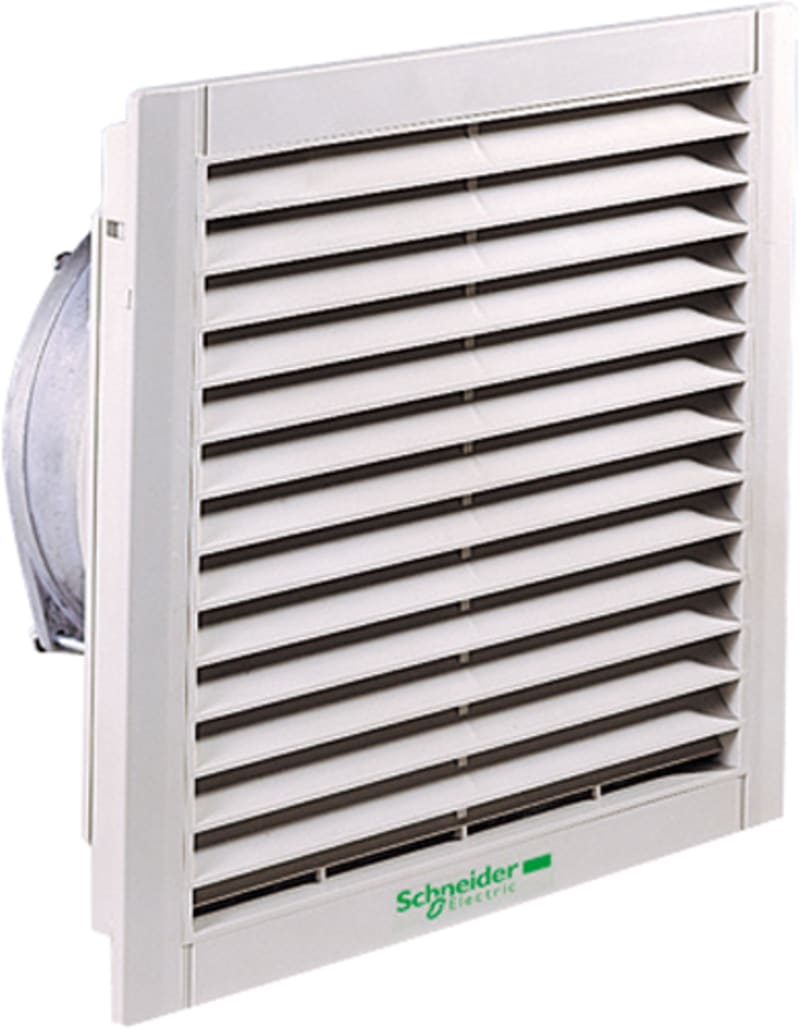

Schneider Electric Fan CEM 480 M3/h NSY17992
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSY17992 FAN EMC 460CM/h, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSY17992
- EAN / GTIN
- 3606480169403
- Sales unit
- pcs
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- EMC fan
- Type of filter
- Standard
- Flow rate
- Free flow rate: 480 m3/h at 50 Hz
- Input voltage
- 230 V 50/60 Hz
- Height
- External: 320 mm
- Width
- External: 320 mm
- Depth
- External : 150 mm
- Cut-out dimensions
- 292 x 292 mm
- Material
- Outlet grille: ABS (acrylonitrile butadiene-styrene); Frame of axial motor: steel; Gasket: berylium
- Colour
- Outlet grille: grey (RAL 7035)
- IP degree of protection
- IP54
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 EMC outlet grille: front; 1 gasket: between fan and enclosure
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 34.000 cm
- Package 1 Width
- 33.000 cm
- Package 1 Length
- 22.000 cm
- Package 1 Weight
- 3.396 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 10
- Package 2 Height
- 53.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 49.200 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting method
- Snap mounting
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- Yes
- Degree of protection (IP)
- IP54
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 80 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 460 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 57 dB(A)
