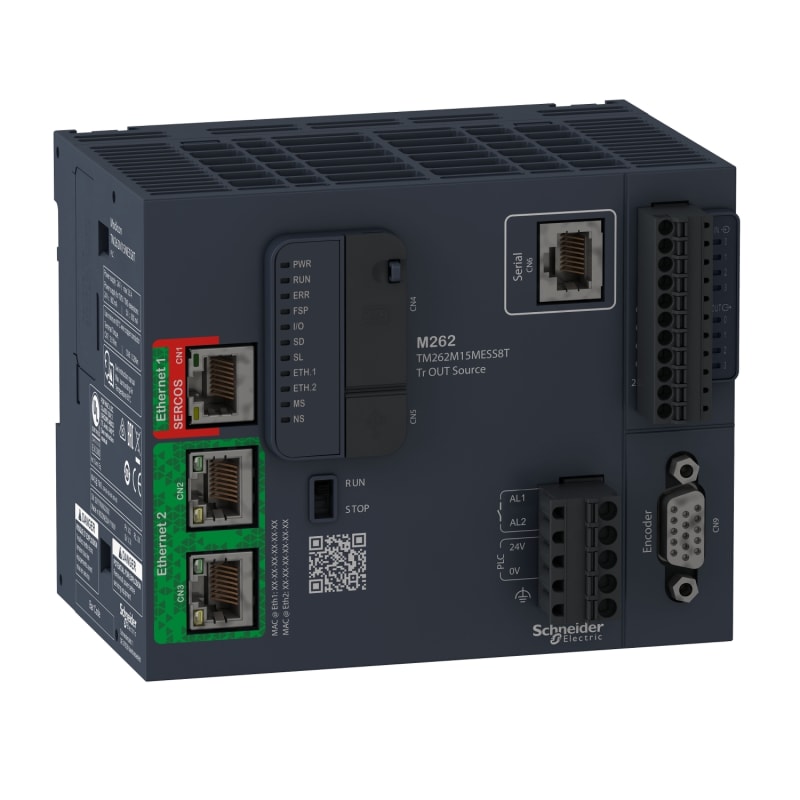

Schneider Electric Motion controller, Modicon M262, 5NS/instruction, 4 axes, Ethernet, Sercos TM262M15MESS8T

Schneider Electric TM262M15MESS8T Modicon TM262 PLS, Motion, 5ns/instruction, 4 axes, Ethernet, Sercos 3, Modbus.

Manufacturer part number (MPN)

TM262M15MESS8T

EAN / GTIN

3606489604202

Sales unit

pcs

Package quantity

8 pcs

Range of product

Logic/motion controller - Modicon M262

Product or component type

Motion controller

[Us] rated supply voltage

24 V DC - 15...20 %

Discrete I/O number

8

Upstream connectivity

IIoT-ready machine to cloud; Connected machine to plant

Supply voltage limits

20.4…28.8 V DC

PLC Power Consumption

82 W

Inrush current

40 A

Overvoltage protection

With

Discrete input number

4, discrete input fast input conforming to IEC 61131-2 Type 1

Discrete input voltage

24 V

Discrete input voltage type

DC

Discrete input logic

Sink

Voltage state 1 guaranteed

>= 15 V for DC

Voltage state 0 guaranteed

<= 5 V for DC

Discrete input current

7.5 mA for fast input

Input impedance

2.81 kOhm for input

Response time

<= 1 µs turn-on, I0...I3 terminal(s) for fast input; <= 1 µs turn-off, I0...I3 terminal(s) for fast input; <= 1 µs turn-on, Q0...Q3 terminal(s) for fast output; <= 1 µs turn-off, Q0...Q3 terminal(s) for fast output

Configurable filtering time

0.001 ms for fast input; 0.002 ms for fast input; 0.005 ms for fast input; 0.01 ms for fast input; 0.05 ms for fast input; 0.1 ms for fast input; 0.5 ms for fast input; 1 ms for fast input; 4 ms for fast input; 12 ms for fast input

Discrete output number

4 transistor fast output

Discrete output voltage

24 V DC

Discrete output current

0.5 A for fast output (Q0...Q3)

Discrete output type

Transistor

Discrete output logic

Source

Output voltage limits

30 V DC

Maximum current per output common

0.5 A with Q0...Q3 for fast output

Maximum output frequency

300 kHz

Accuracy

+/- 0.1 % at 0.02…0.1 kHz for fast output; +/- 1 % at 0.1…1 kHz for fast output

Maximum leakage current

10 µA for output

Maximum tungsten load

<1.5 W

Protection type

Short-circuit and overload protection with automatic reset; Reverse polarity protection; Short-circuit protection

Reset time

200 ms automatic reset fast output

Maximum number of I/O expansion module

7TM3 IO module (local I/O-Architecture); 7TM3 IO module (remote I/O-Architecture); 64TM3, TM5 or TM7 IO island (distributed I/O-Architecture)

Execution time for 1 KInstruction

0.005 ms

Memory capacity

32 MB for program RAM; 32 MB for OS/website RAM; 192 MB for system memory RAM

Data backed up

1 GB built-in flash memory for backup of user programs

Data storage equipment

<= 32 GB SDHC card (optional)

Backup time

1000 h at 25 °C

Application structure

8 event tasks; 4 cyclic master tasks; 3 cyclic master tasks + 1 freewheeling task; 8 external event tasks

Realtime clock

With

Clock drift

<= 10 s/month at 25 °C

Cycle time

0.5 ms

Positioning functions

Libraries axes coordinated function ; Libraries axes synchronous function ; Sercos 3 motion bus function

Integrated connection type

Ethernet/Sercos 1 with RJ45 connector and 10/100BASE-T interface ; Ethernet 2 with 2 RJ45 connector and 100/1000BASE-T interface ; Serial link with RJ45 connector and RS232/RS485 interface ; 1 encoder with female SUB-D 15 connector and RS422/SSI interface ; Smart Communication Bus; TM3 IO bus; USB type mini B

Transmission rate

115 kbit/s for bus length of 15 m for RS485; 115 kbit/s for bus length of 3 m for RS232; 480 Mbit/s for bus length of 3 m for USB; 10/100 Mbit/s for Ethernet1; 10/100/1000 Mbit/s for Ethernet2

Communication port protocol

EtherNet/IP adapter; EtherNet/IP scanner; Modbus TCP client/server; Modbus TCP IO scanner; Modbus TCP NVL; Ethernet RSTP; Modbus SL client/server; Modbus SL IO scanner; Modbus SL modem management; Machine Expert; ASCII manager; ASCII modem management; Sercos III master

Maximum number of connected devices

EtherNet/IP: 64; Modbus TCP: 64; Modbus TCP/EtherNet/IP: 96

Communication service

MQTTs; OPC UA server (Encrypt); HTTPs Methods (API); Web server; Web visu; TLS 1.2; TLS 1.3; SNTP; NTP client/server; FTP client/server; FTPs server; SQL client (remote access); DHCP client; DHCP server; DNS client; POP3s client; SMTP client; SNMP client/server

Local signalling

1 LED (green/red) for PWR; 1 LED (green/red) for RUN; 1 LED (green/red) for ERROR (fault); 1 LED (green/red) for stop forced; 1 LED (green/red) for I/O error (I/O); 1 LED (green/orange) for SD card activity; 1 LED (green/orange) for SL activity; 1 LED (green/red) for ETH1 state; 1 LED (green/red) for ETH2 state; 1 LED (green/red) for EIP MS; 1 LED (green/red) for EIP NS; 1 LED (green/red) for Sercos

Electrical connection

removable spring terminal blockfor inputs and outputs; removable spring terminal blockfor connecting the 24 V DC power supply

Product compatibility

External encoder 5/24 V DC no encoder power supply

Maximum cable distance between devices

Shielded cable: <3 m for fast input; Shielded cable: <3 m for fast output; Unshielded cable: <50 m for input; Unshielded cable: <50 m for output; Shielded cable: <30 m for RS485 link; Shielded cable: <15 m for RS232

Insulation

Between fast input and internal logic at 550 V AC; Non-insulated between inputs; Between fast output and internal logic at 550 V AC; Non-insulated between outputs; Between input and output at 550 V AC; Between supply and internal logic at 550 V AC; Non-insulated between supply and ground

Encoder type

Incremental encoder

Surge withstand

1 kV power lines (DC) common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV relay output differential mode conforming to IEC 61000-4-5; 1 kV input common mode conforming to IEC 61000-4-5; 1 kV transistor output common mode conforming to IEC 61000-4-5

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

100 mm

Depth

90 mm

Width

125 mm

Product weight

0.67 kg

Standards

UL 61010-1; UL 61010-2-201; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201; CSA C22.2 No 213; ANSI/ISA 12-12-01; IEC 61131-2

Product certifications

CE; cULus; cULus HazLoc Class I Division 2 CSA 22-2 No 213; RCM; EAC; Achilles; KC

Resistance to electrostatic discharge

4 kV on contact conforming to IEC 61000-4-2; 8 kV on air conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4; 1 kV (input) conforming to IEC 61000-4-4; 1 kV (transistor output) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-4; 3 V 0.1...80 MHz; 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)

Electromagnetic emission

Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBµV/m at 30…230 kHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions at 230…1000 MHz conforming to IEC 55011

Immunity to microbreaks

0.01 ms

Ambient air temperature for operation

-20…60 °C (horizontal installation); -20…50 °C (vertical installation); -20…45 °C (flat mounting)

Ambient air temperature for storage

-40…85 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 2…8.4 Hz on symmetrical rail; 1 gn at 8.4…200 Hz on symmetrical rail; 3.5 mm at 2…8.4 Hz on panel mounting; 1 gn at 8.4…200 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

64

Country of origin

ID

Warranty (in months)

18

Model

Modular

Number of digital inputs

4

Number of digital outputs

4

Voltage type (supply voltage)

DC

Type of memory

RAM

Memory size

125000 kByte

Processing time (1K, binary operation)

0.003 ms

Max. number of addressable digital I/O-ports

8

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Explosion safety category for gas

None

Explosion safety category for dust

None

Performance level according to EN ISO 13849-1

None

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

HS Code

8537.10
