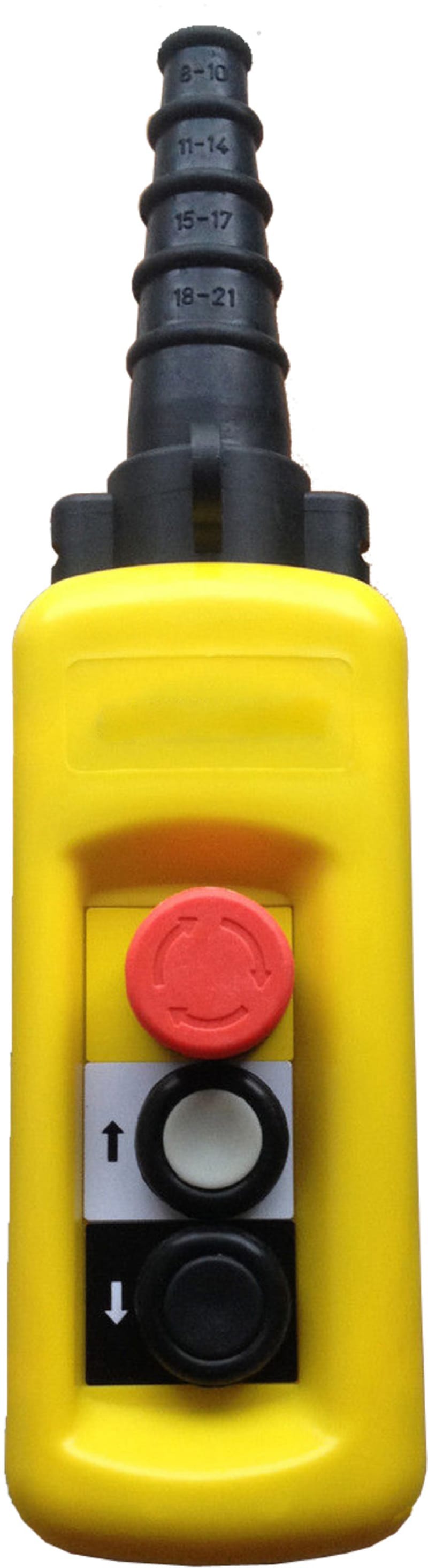

Schneider Electric pendant control station XAC-A - 2 pushbuttons 1 Emergency stop XACA2713

Schneider Electric XACA2713.

Manufacturer part number (MPN)

XACA2713

EAN / GTIN

3389110426809

Sales unit

pcs

Contact configuration

1 NO

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACA

Control station type

Double insulated

Enclosure material

Polypropylene

Electrical circuit type

Control circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

2 push-buttons + 1 emergency stop

Control button type

First push-button 1 NO raise, slow; Second push-button 1 NO lower, slow; Stop push-button Ø 30 mm 1 NC latching

Product compatibility

ZB2BE101 for each direction; ZB2BE102 for emergency stop

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

Standards

IEC 60947-5-1; IEC 60204-32; CSA C22.2 No 14; UL 508

Product certifications

CCC; GOST

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 8…26 mm

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V (pollution degree 3)

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Slow-break

Maximum resistance across terminals

25 MOhm

Operating force

10 N push-button; 8 N emergency stop

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Terminals description ISO n°1

(13-14)NO

Terminals description ISO n°2

(11-12)NC

Terminal identifier

(13-14)NO; (11-12)NC

Product weight

0.575 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.000 cm

Package 1 Width

12.000 cm

Package 1 Length

52.500 cm

Package 1 Weight

625.000 g

Unit Type of Package 2

S06

Number of Units in Package 2

30

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

32.050 kg

Country of origin

CZ

Warranty (in months)

18

Width

80 mm

Height

314 mm

Depth

107 mm

Number of command positions

2

Colour housing cover

Yellow

Suitable for emergency stop

Yes

Housing material

Plastic

Number of speeds

1

Type of executable motions

Lift

Degree of protection (IP)

IP65

Rated operation current Ie at AC-15, 600 V

1.2 A

HS Code

8537.10

• EAN 3389110426809
• SAP 1000254503
• Code 81136070
