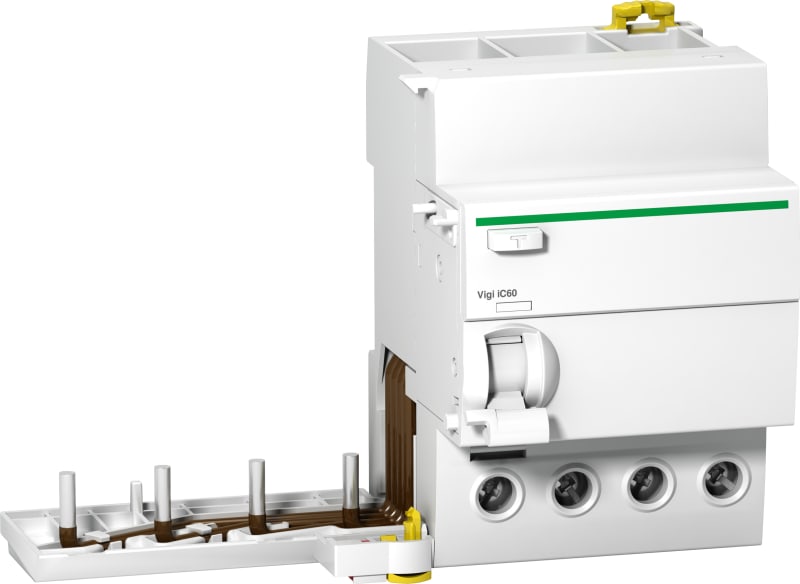

VIGI IC60 4P 25A 30MA SI

Schneider Electric A9W31425 Residual current module Vigi IC60 4P 25A 30mA Si.

Manufacturer part number (MPN)

A9W31425

EAN / GTIN

3606480443725

Sales unit

pcs

Package quantity

17 pcs

Rated current

25 A

Number of poles

4P

Range

Acti9

Product name

Acti9 Vigi iC60

Product or component type

Add-on residual current device

Device short name

Vigi iC60

Poles description

4P

[In] rated current

25 A

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

Instantaneous

Earth leakage protection type

Type A-SI (Super Immunised)

Network type

AC

Network frequency

50/60 Hz

[Ue] rated operational voltage

400/415 V AC 50/60 Hz conforming to IEC 61009-1

Standards

EN 61009-1; IEC 61009-1

9 mm pitches

6

Device location in system

Outgoer

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Range compatibility

Acti9 iC60

Product compatibility

Double terminal

Local signalling

Trip indicator

mounting mode

Clip-on

Mounting support

DIN rail

Electrical connection to mcb

By screws

Height

91 mm

Width

126 mm

Depth

74 mm

Product weight

0.245 kg

Connections - terminals

Tunnel type terminals downside 1…25 mm² rigid; Tunnel type terminals downside 1…16 mm² flexible

Wire stripping length

14 mm

Tightening torque

2 N.m

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947-2

Electromagnetic compatibility

8/20 µs impulse withstand, 3000 A conforming to IEC 61009-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Power loss

1.4 W

Nominal voltage

400–415 V

Nominal current

25 A

Rated fault current adjustable

No

Rated fault current

0.03 A

Delay adjustable

No

Leakage current type

A

Surge current capacity

3 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Connectable conductor cross section solid-core

1–25 mm²

Connectable conductor cross section multi-wired

1–16 mm²

Anti-nuisance tripping version

Yes

With interlocking device

No

Degree of protection (IP)

IP20

Ambient temperature during operating

-25–60 °C

Country of origin

France

HS Code

8536.30

• EAN 3606480443725
• SAP 1000343926
• Code 81111028
