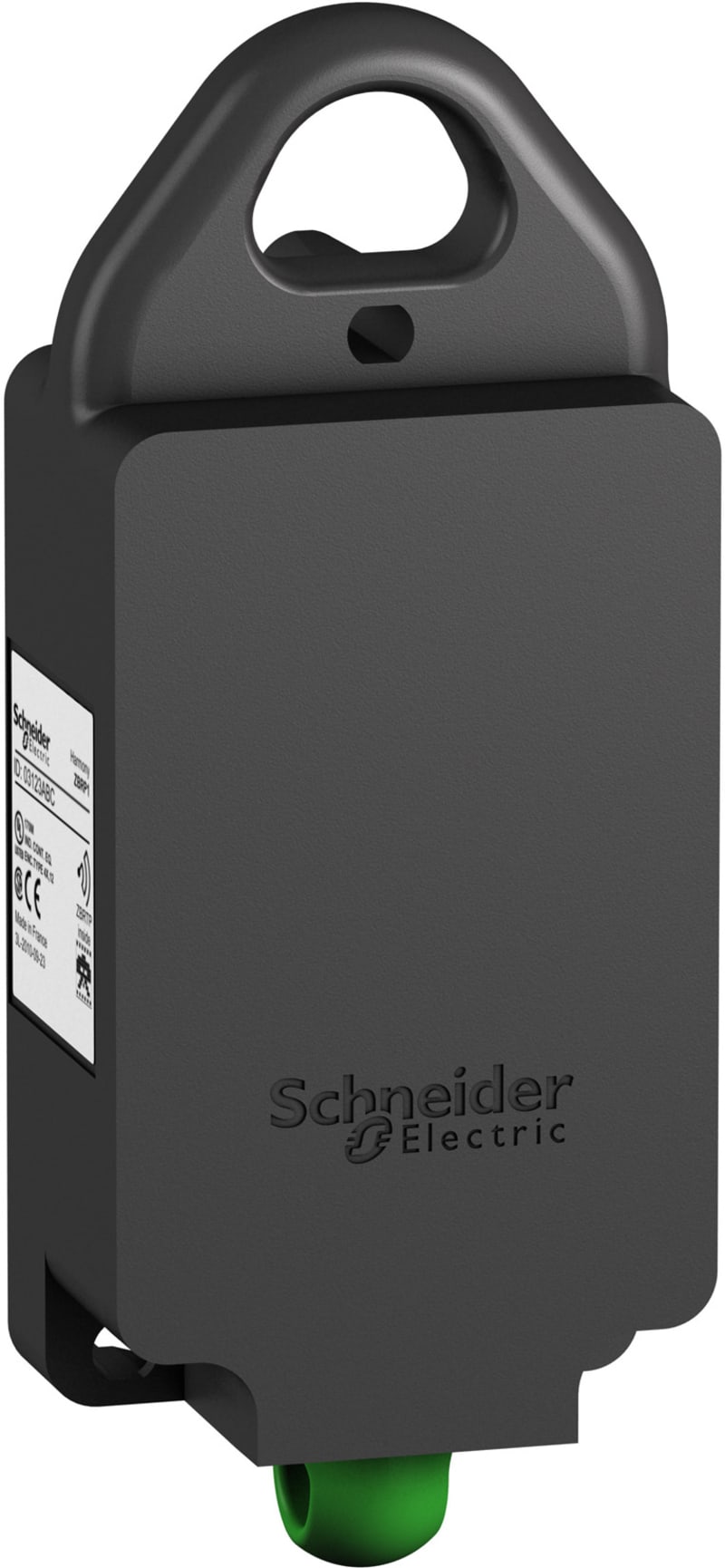

Schneider Electric rope pull switch wireless & batteryless ZBRP1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZBRP1 Tr.loose pull cord switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZBRP1
- EAN / GTIN
- 3606480571732
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Range of product
- Harmony XB5R
- Product or component type
- Wireless and batteryless transmitter
- Device short name
- ZBRP1
- Bezel material
- Plastic
- Transmission frequency
- 2405 MHz
- emission class
- 5M00G7W
- Antenna type
- Omnidirectional
- Number of channels
- 1
- Antenna gain
- 0 dBi
- CAD overall height
- 144 mm
- CAD overall width
- 56 mm
- CAD overall depth
- 38 mm
- Product weight
- 0.15 kg
- Mechanical robustness
- Free fall resistance 1 m conforming to EN/IEC 60068-2-31
- Standards
- UL 508; EN/IEC 60947-1; EN/IEC 62479; EN/IEC 60947-5-1; EN/IEC 300328
- Radio agreement
- ICASA; GITEKI
- Communication port protocol
- Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
- Maximum sensing distance
- 100 m in free field
- Emission power
- 3 mW
- Fixing mode
- By screw: 1.8…2.2 N.m
- mounting mode
- Between 2 ropes; Panel mount with universal support
- Operating position
- Any position
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Relative humidity
- 95 % without condensation
- IP degree of protection
- IP65 conforming to IEC 62262
- NEMA degree of protection
- NEMA 4
- IK degree of protection
- IK05 conforming to IEC 62262
- Mechanical durability
- 1000000 cycles
- Electromagnetic compatibility
- Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)); Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz); Susceptibility to electromagnetic fields - test level: 6 V/m (2000...6000 MHz)
- Product certifications
- UL; GOST; CE; RCM; ANATEL; FCC; UKCA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 32
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480571732
- SAP 1000347653
- Code 81288291
Product Documentation
