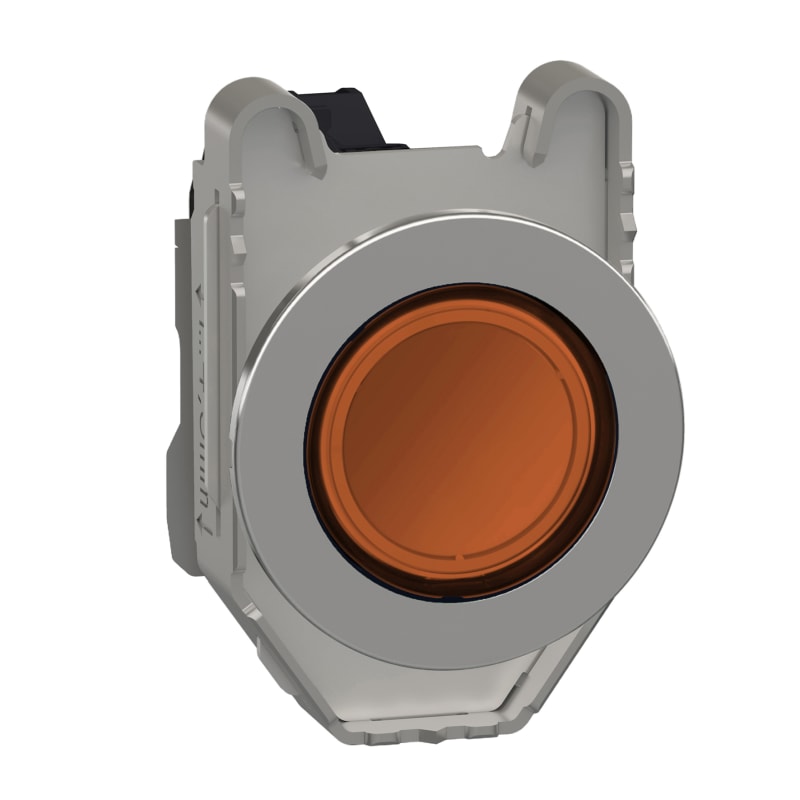

Schneider Electric Pilot light, Harmony XB4,metal, orange flush mounted, 30mm, universal LED, plain lens, 110...120V AC XB4FVG5

Schneider Electric XB4FVG5 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Indicator lamp flush with LED in orange colour and 110VAC supply.

Manufacturer part number (MPN)

XB4FVG5

EAN / GTIN

3606489580568

HS code

8539.52

Sales unit

pcs

Package quantity

5 pcs

Voltage

110 V

Range of product

Harmony XB4

Product or component type

Pilot light

Device short name

XB4F

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Head type

Built-in-flush

Mounting diameter

30.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Orange

Operator additional information

With plain lens

Light source

Universal LED

Bulb base

Integral LED

[Us] rated supply voltage

110...120 V AC at 50/60 Hz

CAD overall width

36.6 mm

CAD overall height

36.6 mm

CAD overall depth

53.6 mm

Product weight

0.112 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Device mounting

Fixing hole - diameter: 30.75 mm +/- 0.25 mm

Fixing mode

By screw

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

Signalling type

Steady

Current consumption

14 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Device presentation

Complete product

Supply voltage limits

100…132 V AC

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…55 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E

IK degree of protection

IK06 conforming to IEC 50102

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1

Product certifications

UL listed; CSA; CCC; EAC

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Warranty (in months)

18

HS Code

8539.52
