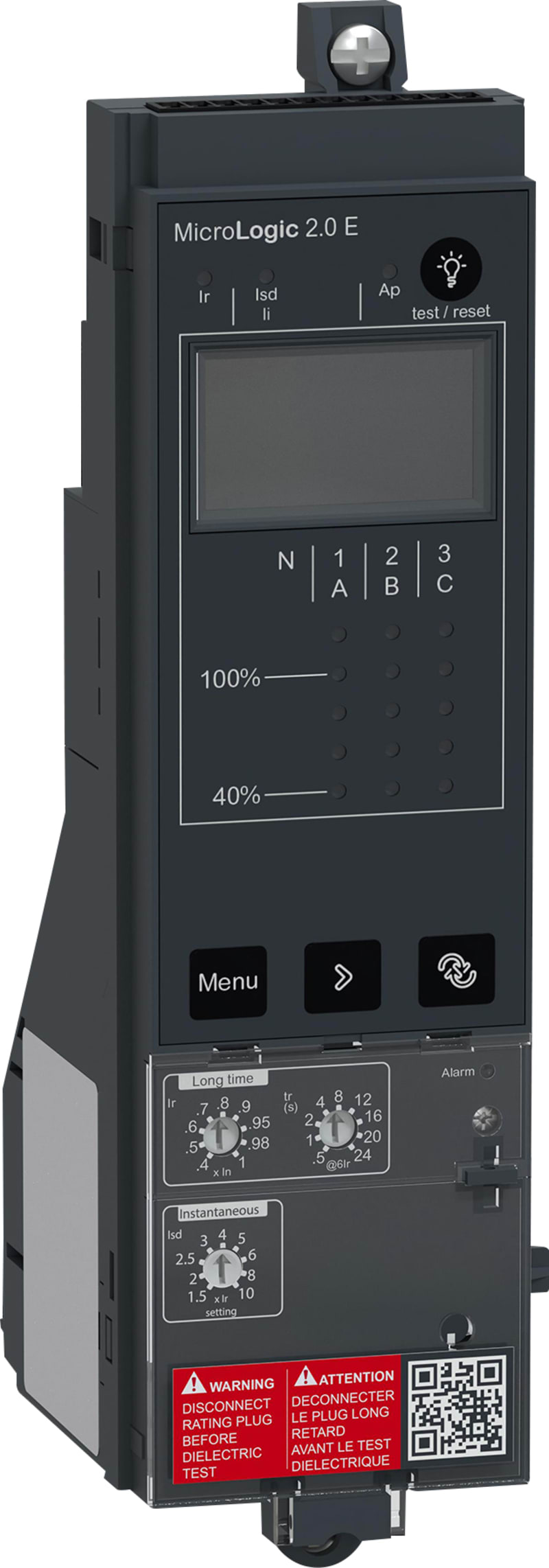

Schneider Electric Control unit MicroLogic 2.0E, ComPacT NS630B to NS1600 withdrawable and manually operated, basic protections C2EWM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C2EWM Protection-Micrologic 2.0E for Circuit breaker ComPacT NS630b for NS3200-manual-withdrawable.
Technical Specifications
- Manufacturer part number (MPN)
- C2EWM
- EAN / GTIN
- 3606482098381
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- ComPacT
- Range of product
- ComPacT NS630b...1600 new generation
- Product or component type
- Control unit
- Trip unit name
- MicroLogic 2.0 E
- Trip unit technology
- Electronic
- Range compatibility
- ComPacT NS630b...1600
- Device application
- Distribution
- Number of poles
- 4P; 3P
- Protected poles description
- 4t; 3t; 3t + N/2
- Trip unit protection functions
- Basic protection
- Protection type
- L : for overload protection (long time); I : for instantaneous short-circuit protection
- Trip unit rating
- 630 A at 50 °C; 800 A at 50 °C; 1000 A at 50 °C; 1250 A at 50 °C; 1600 A at 50 °C
- Network type
- AC
- Network frequency
- 50/60 Hz
- Circuit breaker mounting mode
- Withdrawable
- Long-time pick-up adjustment type Ir (thermal protection)
- Adjustable 9 settings
- [Ir] long-time protection pick-up adjustment range
- 0.4...1 x In
- Long-time protection delay adjustment type tr
- Adjustable 9 settings
- [tr] long-time protection delay adjustment range
- 0.7…16.6 s at 7.2 x Ir; 0.7…24 s at 6 x Ir; 12.5…600 s at 1.5 x Ir
- Thermal memory
- 20 mn
- Instantaneous protection pick-up adjustment type Ii
- Adjustable 9 settings
- [Ii] instantaneous protection pick-up adjustment range
- 1.5...10 x Ir
- Earth-leakage protection
- Without
- Zone selective interlocking ZSI
- Without
- Local signalling
- 3 LEDs (red) for electrical fault; 1 LED (red) for internal error; 1 LED (yellow) for overload
- Display type
- Digital display
- Type of measurement
- Energy meter
- Communication of data
- Measurement readout; Protection and alarm settings
- Standards
- IEC 60947-4-2
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -25…85 °C
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482098381
- SAP 1200663735
- Code 83099137
Product Documentation
