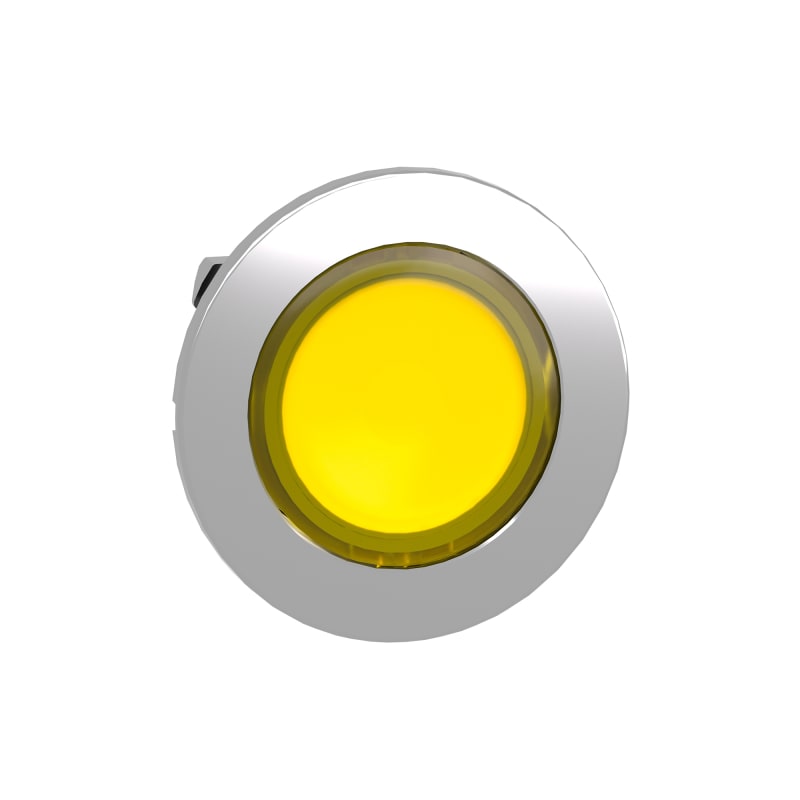

Indicator lamp flush yellow (ZB4FV083)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB4FV083 Pilot Light Head flush for LED in yellow colour.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4FV083
- EAN / GTIN
- 3606489582586
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for pilot light
- Product compatibility
- Universal LED
- Device short name
- ZB4F
- Bezel material
- Chromium plated metal
- Mounting diameter
- 30.5 mm
- Sale per indivisible quantity
- 1
- Head type
- Built-in-flush
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Yellow
- Operator additional information
- With plain lens
- CAD overall width
- 36.6 mm
- CAD overall height
- 36.6 mm
- CAD overall depth
- 31 mm
- Product weight
- 0.058 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Electrical composition code
- P1 in front mounting with integral LED; P2 in front mounting with integral LED and transformer
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- IEC 60947-5-4; IEC 60947-5-1; UL 508; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1
- Product certifications
- UL listed; CSA; CCC; EAC
- Vibration resistance
- 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 80
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 3606489582586
- SAP 1200223660
- Code 82176774
Product Documentation
More from Schneider Electric
Schneider Electric
KONTROLLER,Ø22 MM,Metal (XD2GA8451)
Schneider Electric
Connectionsforlengels 4P G265-500
LA9G4602
Schneider Electric
Cablerail 1000 (NSYCFP100)
Schneider Electric
Cover FOR Outlet (KNB160ZB1)
Schneider Electric
Schneider Electric SSRHP02 Harmony Solid State Relay Heat Sink, 0.2 °C/W
Schneider Electric
Schneider Electric Pilot light, Harmony XB5, grey plastic, red flush mounted, 30mm, universal LED, plain lens, 110...120V AC XB5FVG4
Schneider Electric
PUSH BUTTON CAP, "r"
ZBA639
Schneider Electric

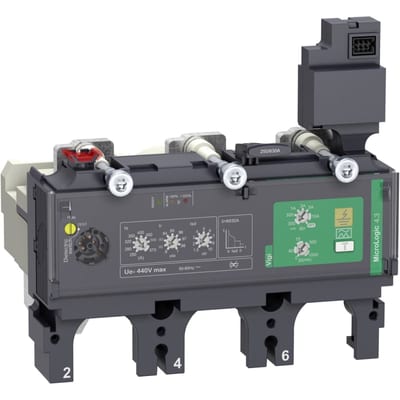

Schneider Electric Trip unit MicroLogic Vigi 4.3, ComPacT NSX400/630, 3 poles, electronic basic and earth leakage protections, 400A rating C4034V400
