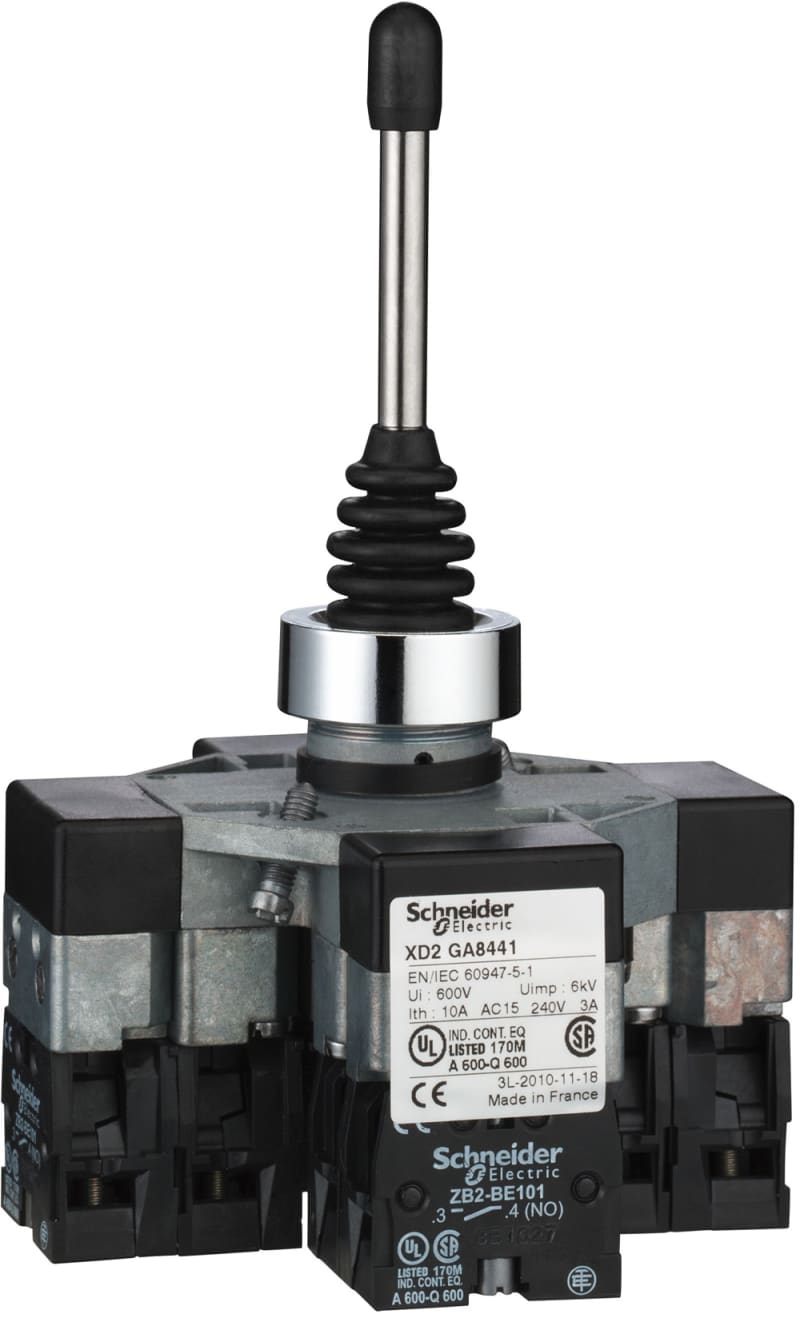

KONTROLLER,Ø22 MM,Metal (XD2GA8451)

Schneider Electric XD2GA8451 Kontroller,ø22 mm,metal.

Manufacturer part number (MPN)

XD2GA8451

EAN / GTIN

3389110611472

Sales unit

pcs

Package quantity

6 pcs

Diameter

22 mm

Range of product

Harmony XB5

Product or component type

Complete joystick controller

Device short name

XD2

Mounting diameter

22 mm

Bezel material

Chromium plated metal

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 600 V (pollution degree 3) conforming to UL 508; 600 V (pollution degree 3) conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Operator position information

All positions

Notch per direction

2

Operator direction information

4 directions

Contacts type and composition

2 NO for slow-break

Short-circuit protection

10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1

Connections - terminals

Captive screw clamp terminals, 1 x 0.5 mm²; Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end; Faston connectors, connection size: 6.3 mm

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 24...48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6)

Contact code designation

A600-Q600

Overvoltage category

Class I conforming to IEC 61140

Mechanical durability

1000000 cycles

fixing center

90 x 90 mm

Return

spring return; stay put

Height

145 mm

Depth

90 mm

Product weight

0.55 kg

[Ie] rated operational current

0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300

Standards

IEC 60947-5-1

Product certifications

LROS (Lloyds register of shipping); CSA

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Vibration resistance

5 gn (f= 40…500 Hz) conforming to IEC 60068-2-6

Shock resistance

20 gn conforming to IEC 60068-2-27

IP degree of protection

IP66 conforming to IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

96

Country of origin

FR

Warranty (in months)

18

Number of switch positions

4

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

22 mm

Number of actuation directions

4

Number of normally open contacts per actuation direction

2

With retraction in 0-position

Yes

Colour front ring

Chrome

Analogue output signal configurable

No

Degree of protection (IP)

IP66

Coder

No

Material front ring

Metal

With front ring

Yes

Locking in 0-position

No

Joy stick length

87 mm

HS Code

8536.50

• EAN 3389110611472
• SAP 1000085207
• Code 8842602
