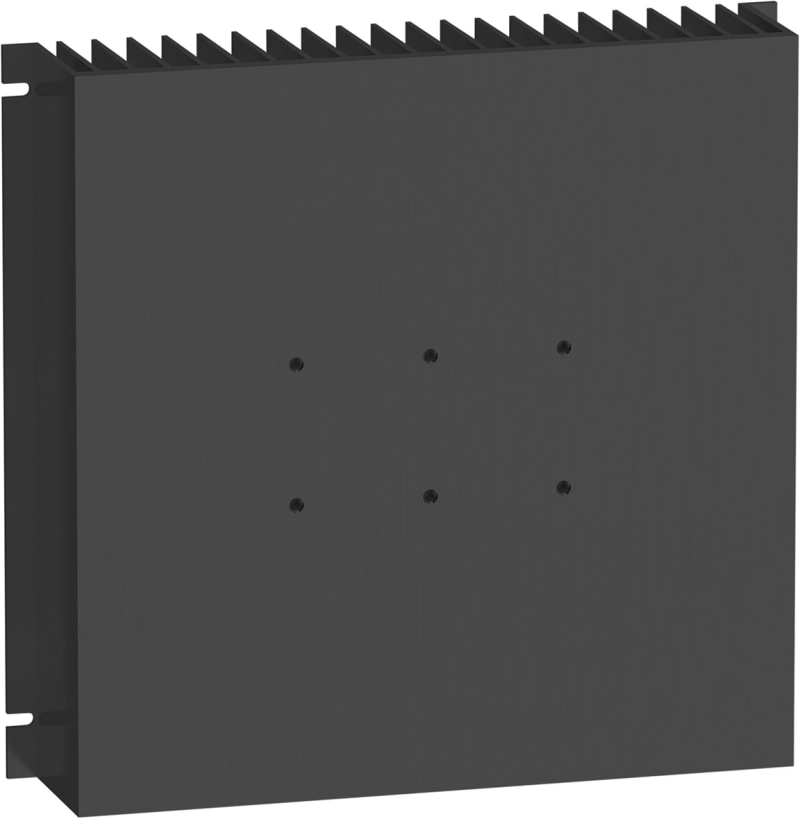

Schneider Electric SSRHP02 Harmony Solid State Relay Heat Sink, 0.2 °C/W
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SSRHP02 is a panel-mounted heat sink for one Harmony solid state relay, providing a thermal resistance of 0.2 °C/W. Black anodised aluminium with 6823 cm² of surface area; six UNC 8-32 mounting holes. Dimensions 247.7 x 250 x 57.9 mm.
Technical Specifications
- Manufacturer part number (MPN)
- SSRHP02
- EAN / GTIN
- 3606480580253
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Range of product
- Harmony Solid State Relays
- Product or component type
- Heat sink
- Product compatibility
- 1 solid state relay SSR on panel
- Thermal resistance
- 0.2 °C/W
- Mounting support
- Panel
- Material
- Aluminium
- Surface finish
- Black anodized
- Surface and useful surface
- 6823 cm²
- Number of mounting holes
- 6 with UNC 8-32 thread
- Tightening torque
- 1.7…2.2 N.m
- Sale per indivisible quantity
- 1
- Width
- 247.7 mm
- Height
- 250 mm
- Depth
- 57.9 mm
- Product weight
- 2.592 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480580253
- SAP 1000665049
- Code 8672776
Product Documentation
