Schneider Electric ZB5AL5 Harmony XB5 Push-Button Head — Ø22 mm, Yellow, projecting, spring return, non-illuminated, plastic bezel

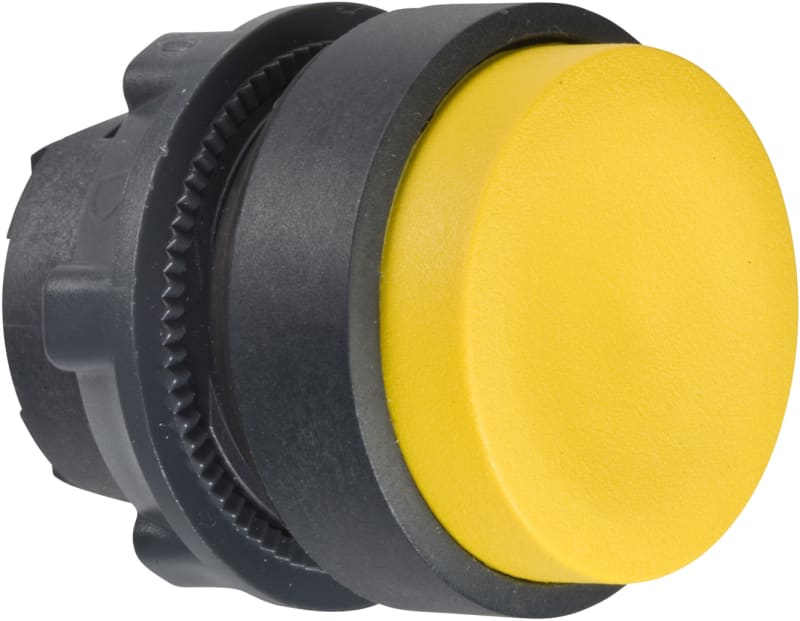

Schneider Electric ZB5AL5 is a Harmony XB5 Ø22 mm push-button operator head: yellow, projecting actuator, spring-return (momentary) action, non-illuminated, unmarked, with a chrome-plated plastic fixing collar. It mounts in a standard Ø22 mm panel cut-out and combines with Harmony ZBE contact blocks and light blocks (ordered separately) to form a complete control unit. Front face rated IP66; ambient −40 to +70 °C. Conforms to IEC/EN 60947-5-1. EAN 3389110906516.

Manufacturer part number (MPN)

ZB5AL5

EAN / GTIN

3389110906516

Product range

Harmony XB5

Type

push-button operator head (contact / light block ordered separately)

Mounting

Ø22 mm panel cut-out

Actuator

Projecting

Operation

spring return (momentary)

Illumination

non-illuminated

Colour

Yellow

Bezel material

chrome-plated plastic

Marking

unmarked

Degree of protection

IP66 (front face)

Ambient temperature

-40 to +70 °C

Mechanical durability

10 million operating cycles

Conforms to

IEC/EN 60947-5-1

Sales unit

pcs

Package quantity

75 pcs

Range of product

Harmony XB5

Product or component type

Head for non-illuminated push-button

Device short name

ZB5

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Yellow projecting, unmarked

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

33 mm

Product weight

0.019 kg

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Country of origin

FR

Warranty (in months)

18

Standard

IEC 60947-5-1

HS Code

8538.90
