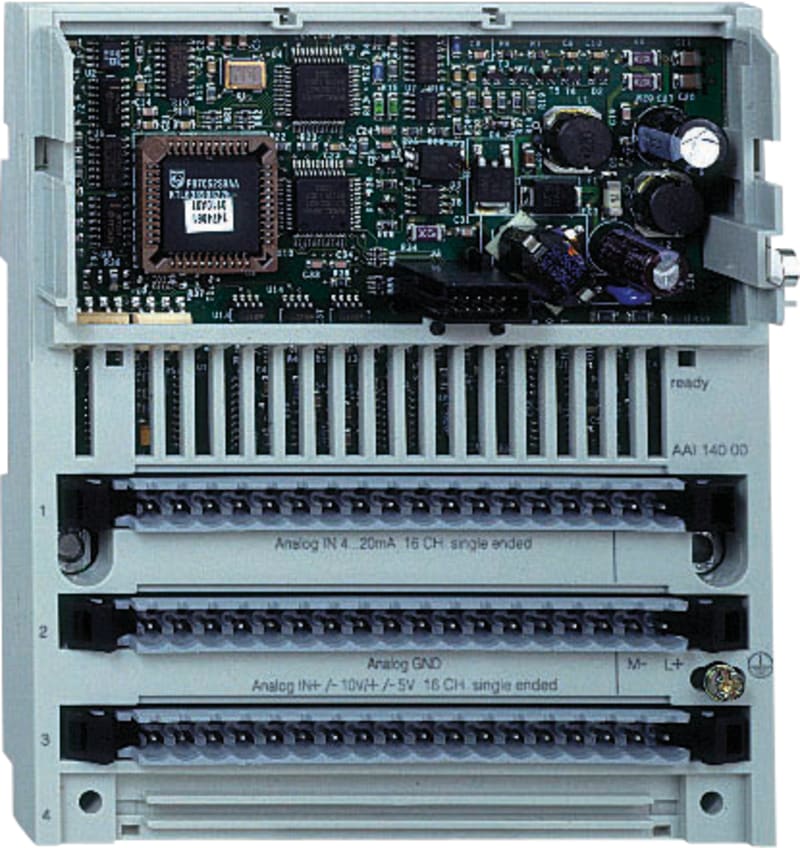

Schneider Electric distributed analog input Modicon Momentum - 8 Input 170AAI03000

Schneider Electric distributed analog input Modicon Momentum - 8 Input 170AAI03000 is listed under Control & Automation / PLCs & Industrial Networking. Sales unit: pcs; Package quantity: 4 pcs; Range of product: Modicon Momentum automation platform; Product or component type: Analogue input base; Analogue input number: 8; Data format: Full 16 bits signed.

Manufacturer part number (MPN)

170AAI03000

EAN / GTIN

3595861147683

Sales unit

pcs

Package quantity

4 pcs

Range of product

Modicon Momentum automation platform

Product or component type

Analogue input base

Analogue input number

8

Data format

Full 16 bits signed

Absolute accuracy error

+/- 0.13 % full scale 25 °C 1...5 V; +/- 0.19 % full scale 60 °C 1...5 V; +/- 0.21 % full scale 25 °C +/- 5 V; +/- 0.26 % full scale 60 °C +/- 5 V; +/- 0.27 % full scale 25 °C +/- 10 V; +/- 0.27 % full scale 25 °C 4...20 mA; +/- 0.32 % full scale 25 °C +/- 20 mA; +/- 0.32 % full scale 60 °C +/- 10 V; +/- 0.38 % full scale 60 °C 4...20 mA; +/- 0.41 % full scale 60 °C +/- 20 mA

Conversion time

12 ms 8

Permissible common mode voltage

100 V 47...63 Hz DC between channels to ground; 250 V 47...63 Hz AC between channels to ground

Common mode rejection

> 80 dB between channels to ground

External power requirement

< 382 mA DC; 20.4...28.8 V DC; 24 V DC

Reverse polarity protection

Internal

Analogue input type

Differential +/-20 mA; Differential 4...20 mA; Differential +/- 10 V; Differential +/- 5 V; Differential 1...5 V; Differential +/- 20 mA

Analogue input resolution

14 bits + sign +/- 20 mA; 15 bits + sign 4...20 mA; 14 bits + sign +/- 10 V; 14 bits + sign +/- 5 V; 15 bits + sign 1...5 V

Input impedance

250 kOhm; > 0.1 kOhm

Isolation between channels

+/- 200 V

Isolation between channels and bus

500 V AC

Isolation between channels and ground

500 V AC

Electrical connection

2 connectors for removable terminal blocks

Local signalling

1 LED green for ready; 8 LEDs for channel status

Height

125 mm

Width

141.5 mm

Depth

47.5 mm

Product weight

0.215 kg

Protective treatment

TC

Marking

CE

Product certifications

FM Class 1 Division 2; CSA; UL

Standards

EN 50081-2; IEC 1131

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

0…95 % without condensation

Operating altitude

<= 5000 m

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

ID

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Input, current

Yes

Input, voltage

Yes

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

12 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

8

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

Yes

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
